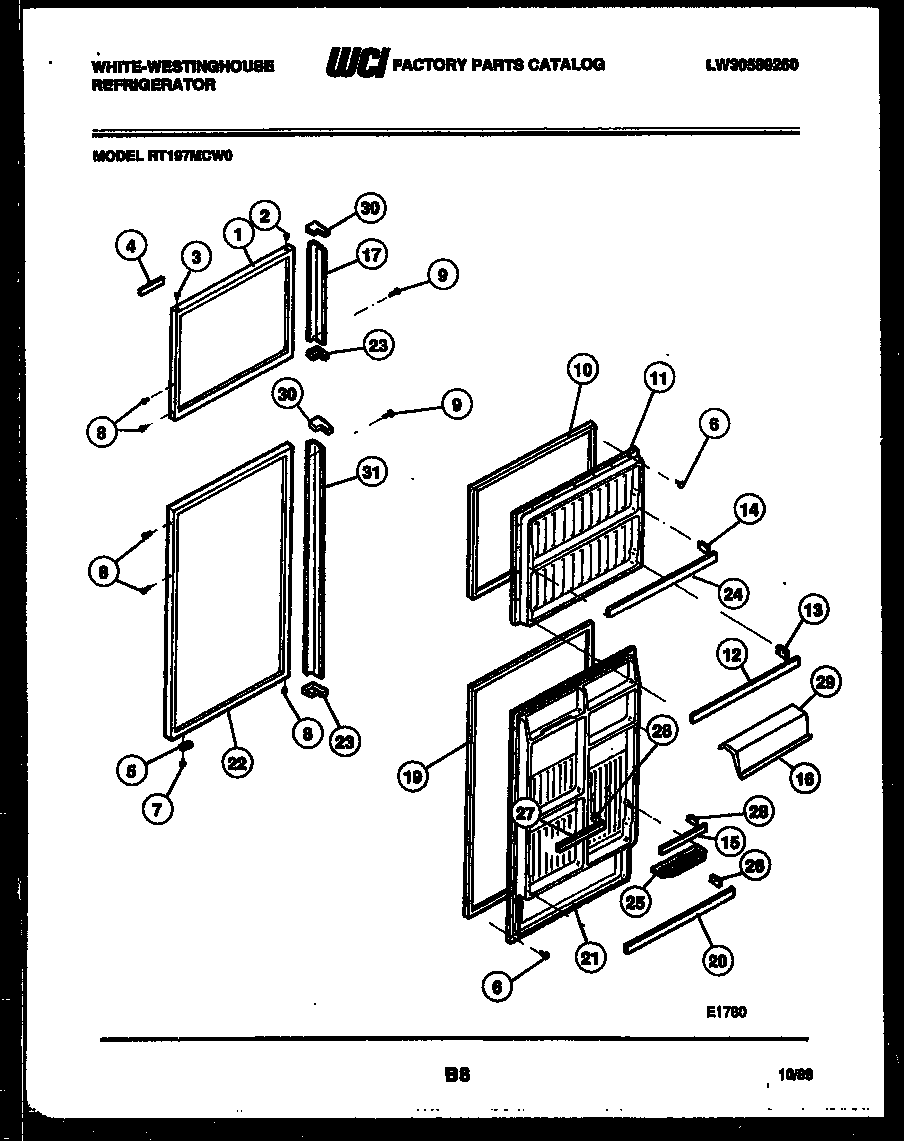

RT197MCW0 02 – DOOR PARTS

Products

Position	Product
*23414	WCI 5303206514
*23414	WCI 3206307
*23414	INSULATION-BULK
1	WCI G183468
2	WCI G169332-01
3	WCI 08012007
4	WCI 3206159
5	DOOR STOP (2)
6	5304455651 Frigidaire Refrigerator Screw
8	240494001 Frigidaire Refrigerator Plug Button
9	WCI G185566
10	WCI 3018791
11	PANEL, INNER DOOR, FRZR
13A	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
13	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
15	RACK-DOOR, SHORT, NARROW, (2)
16	TRIM-DAIRY DOOR (NON-ILLUSTRATED)
17	WCI 3206217
19	WCI G186803-13
20	RACK-DOOR, FULL-WIDTH, WIDE
21	PANEL, INNER DOOR, REFR
22	WCI G187356
23	CAP
23B	TRIM, BTM
24	RACK-DOOR, FULL-WIDTH, NARROW
25	WCI 3206189
26	SUPPORT-DOOR RACK, RH
26A	SUPPORT-DOOR RACK, LH
27	RACK-DOOR, MEDIUM-WIDTH, NARROW
28A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
28	3206165 Frigidaire Bar Endcap Right Hand
29	WCI 5303206519
30B	TRIM, TOP
30	CAP
30A	CLIP
31	HANDLE-REF
