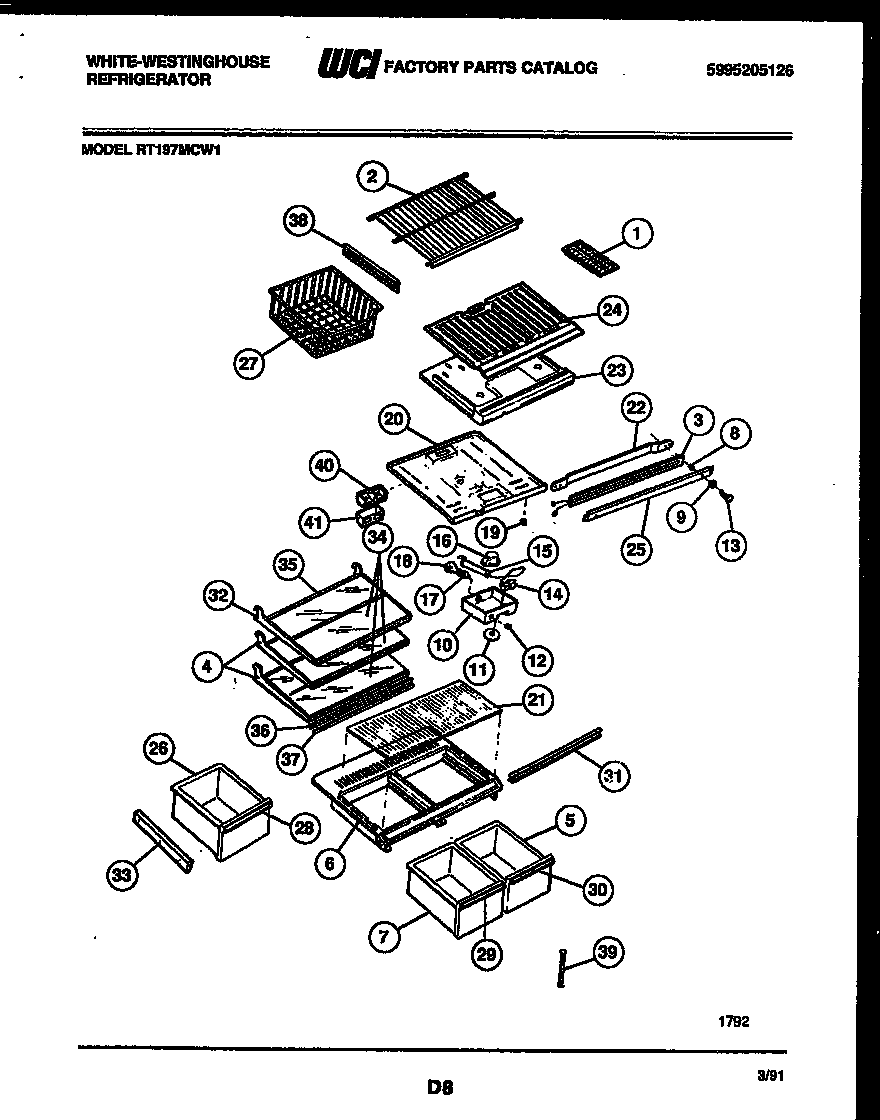

RT197MCW1 04 – SHELVES AND SUPPORTS

Products

Position	Product
*42851	WCI 5318609501
*42851	EXTENSION, AIR DEFLECTOR, WITH INSULATION
*42851	RACK – HANGING – EGG
1	215667501 Frigidaire Refrigerator Ice Tray Primary
2	WCI 5303206608
2B	TRIM-FRZR SHELF
2A	END CAP-SHELF,PROTECTOR
3	WCI 5303210351
4	FRAME-FULL SHELF, CANTILEVER, (2)
5	WCI 5303206534
6A	GASKET-CRISPER COVER (NON-ILLUSTRATED)
6	COVER – CRISPER
7	WCI 5349001551
8	SPACER-MULLION MTG, STEEL
9	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10A	5304455650 Frigidaire Refrigerator Screw
10	WCI 3206130
11	WCI 5303201777
12	WCI 3206129
13	WCI 5308012258
14A	WCI 5303001260
14	WCI 5303018894
15	WCI 3018891
16	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A	5304455649 Frigidaire Refrigerator Screw
17	218906802 Frigidaire Light Lamp Socket
18	316538904 Frigidaire Oven Lamp Light
19	5309918806 Frigidaire Refrigerator Light Switch Door
20A	WCI 5303001380
20	TOP – REFRIGERATOR
22	WCI 5308010008
23A	WCI 3018900
23B	3205266 Frigidaire Refrigerator Edge Protector
23	DIVIDER-FOAM
24	WCI 5303211427
25	WCI 5303200366
26	WCI 5303206542
27	BASKET-SLIDING, FULL-WIDTH, FRZR
28	WCI 3201414
29	WCI 3201411
30	WCI 3201409
31	WCI 3205547
32	FRAME-MEAT KPR SHLF, CANTILEVER
33A	HANGER-PAN RH (NON-ILLUSTRATED)
33	HANGER-PAN LH
33B	WCI 08014528
34	SHELF-GLASS, FULL SHELF, (3)
34A	RAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
35	TRIM-FULL SHELF, REAR, (3)
36A	RETAINER-GLASS, MEAT KPR SHELF (NON-ILLUSTRATED)
36	WCI 3200321
37	TRIM-FULL SHELF, FRONT, (3)
38	WCI 5303206521
38A	HANGER-BASKET, LH (NON-ILLUSTRATED)
39	SUPPORT-CRISPER CVR, ADJUSTABLE
40	DEFLECTRO, AIR, W/SEAL
41	WCI 5303001448
