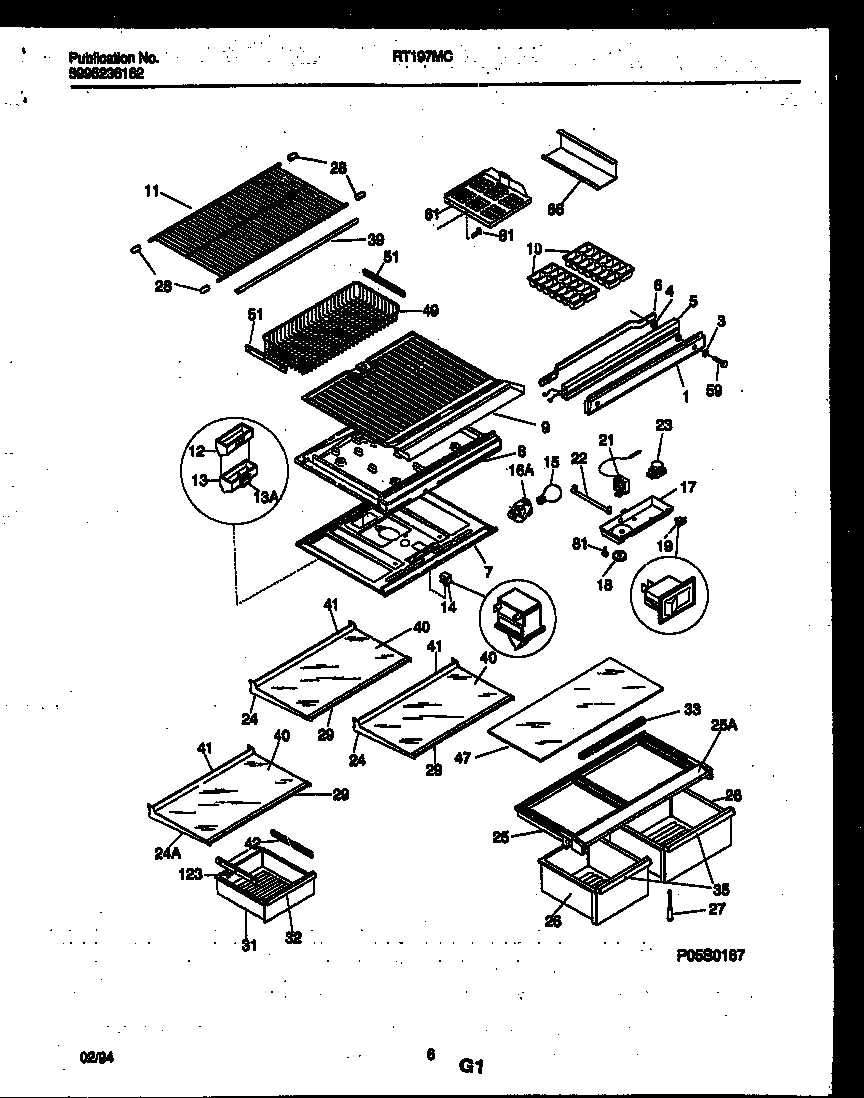

RT197MCW2 04 – SHELVES AND SUPPORTS

RT197MCW2 04 – SHELVES AND SUPPORTS

Written by

in

RT197MCW2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*90164WCI 215339900
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8A3205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
8BWCI 3018900
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303206608
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17ANUT, ANCHOR (NI)
17WCI 3206130
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24AFRAME-MEAT KPR SHLF, CANTILEVER
24FRAME-FULL SHELF, CANTILEVER, (2)
24BRAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
25AWCI 3205547
25COVER – CRISPER
26PAN – CRISPER – LH
26WCI 5303206534
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29BRETAINER-GLASS, MEAT KPR SHELF (NON-ILLUSTRATED)
29TRIM-FULL SHELF, FRONT, (3)
29AWCI 3200321
31WCI 5303206542
32WCI 3201414
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
35WCI 3201409
35WCI 3201411
39TRIM-FRZR SHELF
40SHELF-GLASS, FULL SHELF, (3)
41TRIM-FULL SHELF, REAR, (3)
42HANGER-PAN LH
42HANGER-PAN RH (NON-ILLUSTRATED)
47INSERT-CRISPER CVR, GLASS
49BASKET-SLIDING, FULL-WIDTH, FRZR
51WCI 5303206521
51HANGER-BASKET, LH (NON-ILLUSTRATED)
59WCI 5308012258
61WCI 5318609501
815304455650 Frigidaire Refrigerator Screw
86RACK – HANGING – EGG
123WCI 08014528
