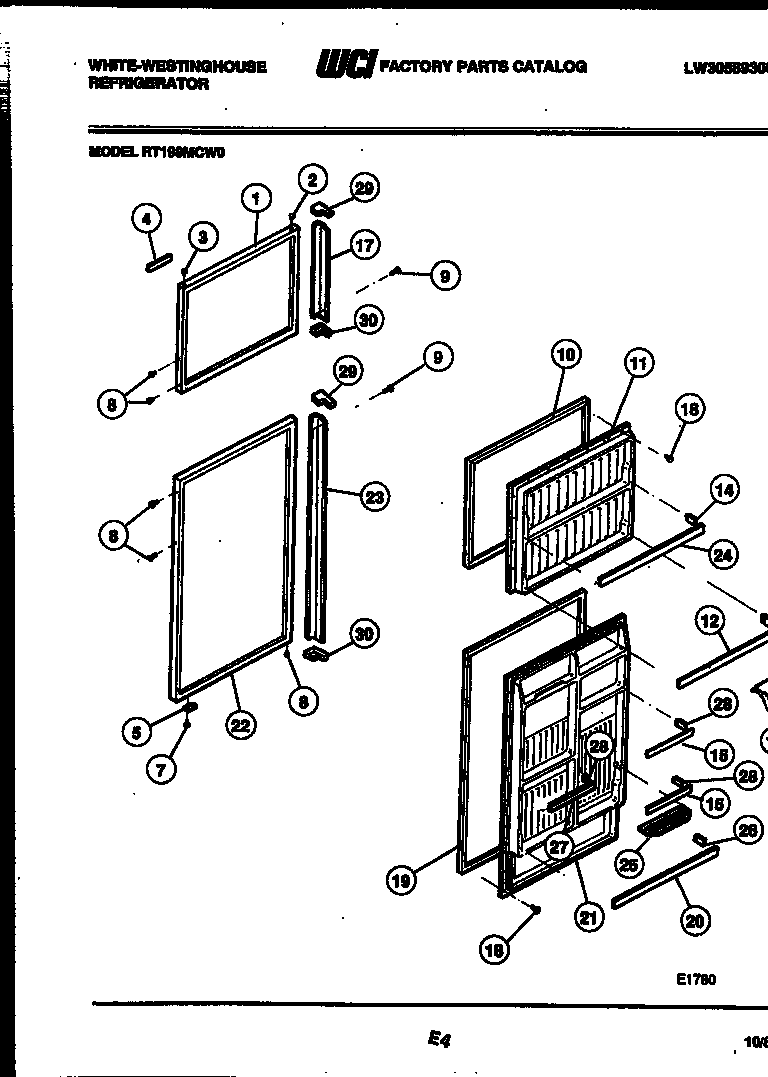

RT199MCH0 02 – DOOR PARTS

Products

Position	Product
*24580	WCI 5303206514
*24580	WCI G000179271
*24580	WCI 3206307
*24580	INSULATION-BULK
1	WCI 3916054
2	WCI G169332-09
3	BEARING, HINGE (3)
4	WCI 3206159
5	DOOR STOP (2)
8	WCI G162977-09
9	WCI G185566
10	WCI 3018791
11	PANEL, INNER DOOR, FRZR
13	SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
13A	SUPPORT-DOOR RACK, EXTENDS 1.06“, LH
15	RACK-DOOR, SHORT, NARROW, (2)
16A	TRIM-DAIRY DOOR (NON-ILLUSTRATED)
16	DOOR-DAIRY (INCLUDES TRIM)
17	WCI 3206217
18	5304455651 Frigidaire Refrigerator Screw
19	WCI 3018792
20	RACK-DOOR, FULL-WIDTH, WIDE
21	PANEL, INNER DOOR, REFR
22	WCI G187356-09
23	HANDLE-REF
24	RACK-DOOR, FULL-WIDTH, NARROW
25	WCI 3206189
26A	SUPPORT-DOOR RACK, LH
26	SUPPORT-DOOR RACK, RH
27	RACK-DOOR, MEDIUM-WIDTH, NARROW
28	3206165 Frigidaire Bar Endcap Right Hand
28A	3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
29B	WCI G000179270
29	CAP
29A	WCI G000177144
30	WCI G000177143
