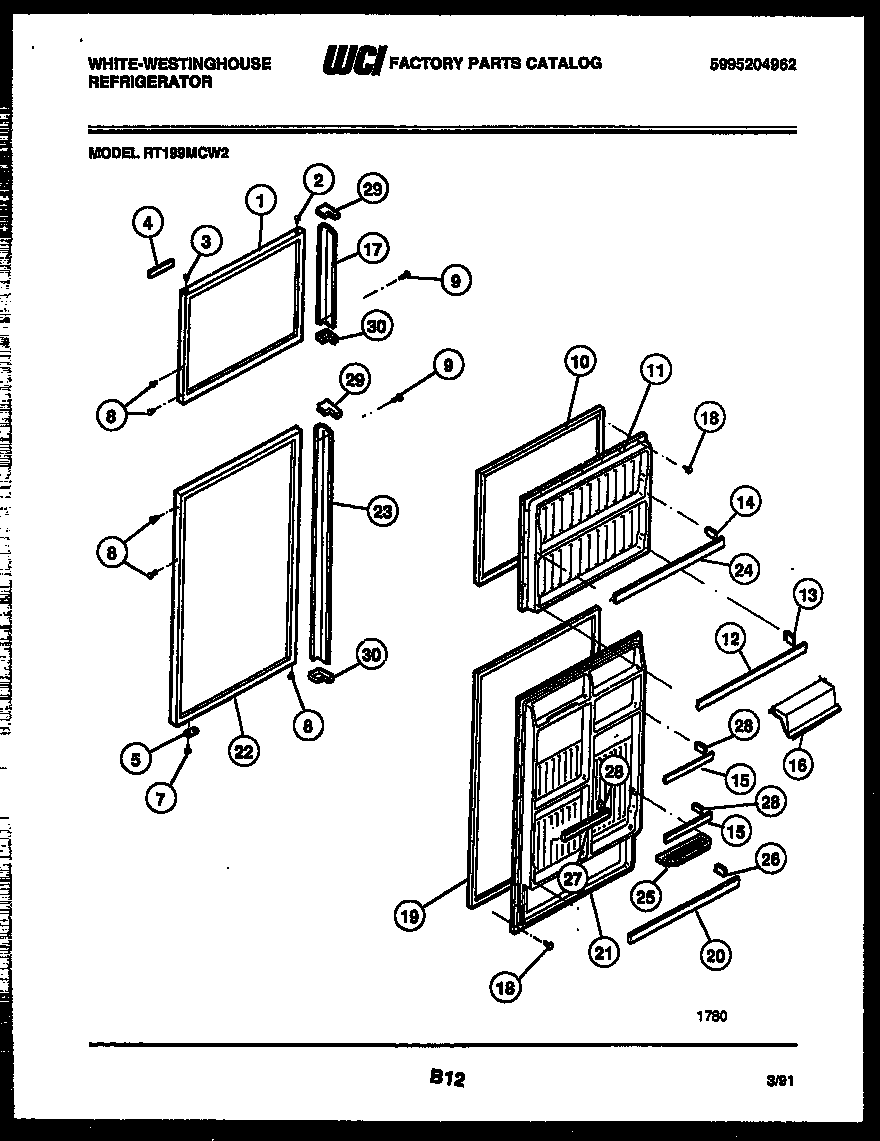

RT199MCV2 02 – DOOR PARTS

RT199MCV2 02 – DOOR PARTS

Written by

in

RT199MCV2 02 – DOOR PARTS

Products

PositionProduct
*42675INSULATION-BULK (NON-ILLUSTRATED)
*42676WCI 3206307
*42675WCI 5300179271
*42676WCI 5303206514
1WCI 5303916053
2BUTTON-AVOCADO
3BEARING-HINGE
4WCI 3206159
5WCI 5308000255
5ADOOR STOP, REFR SECTION
8BUTTON-AVOCADO
9WCI 5308011745
10WCI 5303018791
11PANEL, INNER DOOR, FRZR
13ASUPPORT-DOOR RACK, EXTENDS 1.06“, LH
13SUPPORT-DOOR RACK, EXTENDS 1.06“, RH
15RACK-DOOR, SHORT, NARROW, (2)
16DOOR-DAIRY (INCLUDES TRIM)
17WCI 3206217
185304455651 Frigidaire Refrigerator Screw
19WCI 5303018792
20RACK-DOOR, FULL-WIDTH, WIDE
21PANEL, INNER DOOR, REFR
22WCI 5303916622
23HANDLE-REF
24RACK-DOOR, FULL-WIDTH, NARROW
25WCI 3206189
26ASUPPORT-DOOR RACK, LH
26SUPPORT-DOOR RACK, RH
27RACK-DOOR, MEDIUM-WIDTH, NARROW
283206165 Frigidaire Bar Endcap Right Hand
28A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
29WCI 5300177142
29BWCI 5300179270
29AWCI 5300177144
30WCI 5300177143
