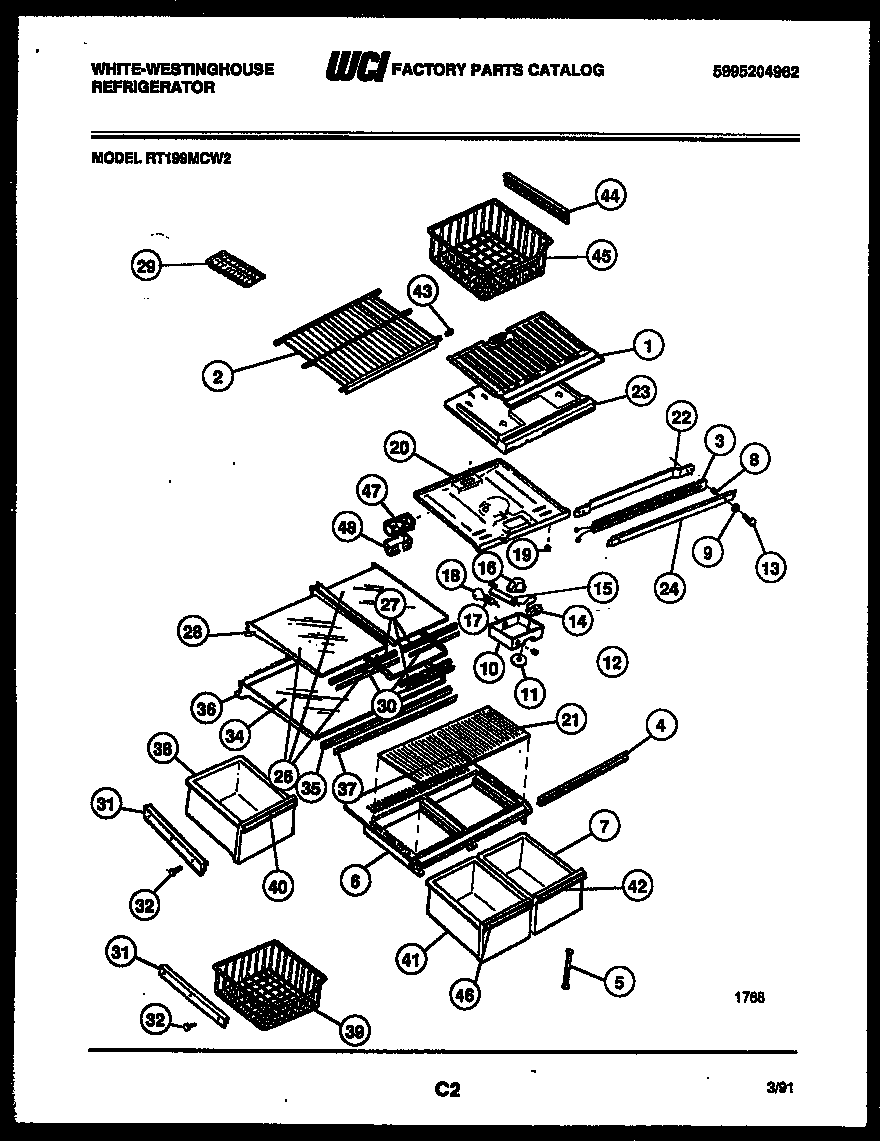

RT199MCV2 04 – SHELVES AND SUPPORTS

RT199MCV2 04 – SHELVES AND SUPPORTS

Written by

in

RT199MCV2 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*42693EXTENSION, AIR DEFLECTOR, WITH INSULATION
*42693WCI 5318609501
*42693RACK – HANGING – EGG
*42693WCI 5303206525
1WCI 5303211427
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2ATRIM-FRZR SHELF
2B5304509705 Frigidaire Refrigerator Grommet
3WCI 5303210351
4WCI 3205547
5SUPPORT-CRISPER CVR, ADJUSTABLE
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
6COVER – CRISPER
7WCI 5303206534
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10WCI 3206130
10A5304455650 Frigidaire Refrigerator Screw
11WCI 5303201777
12WCI 3206129
13WCI 5308012258
14AWCI 5303001260
14WCI 5303018894
15WCI 3018891
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20TOP – REFRIGERATOR
21INSERT-CRISPER CVR, GLASS
22WCI 5308010008
23AWCI 3018900
23DIVIDER-FOAM
23B3205266 Frigidaire Refrigerator Edge Protector
24WCI 5303200367
26WCI 5303211202
27RETAINER-GLASS, (3) (NON-ILLUSTRATED)
28FRAME-SHELF (2)
29215667501 Frigidaire Refrigerator Ice Tray Primary
30TRIM – MK & BASKET SHELF (2)
31HANGER-PAN LH
31AHANGER-PAN RH (NON-ILLUSTRATED)
32WCI 08014528
34WCI 5303211203
35WCI 5303209274
36FRAME-FULL SHELF
37TRIM-FRZR SHELF
38WCI 5303206542
39WCI 5303206543
40WCI 3201414
41PAN – CRISPER – LH
42WCI 3201409
43END CAP-SHELF,PROTECTOR
44WCI 5303206521
44AHANGER-BASKET, LH (NON-ILLUSTRATED)
45BASKET-SLIDING, FULL-WIDTH, FRZR
46WCI 3201411
47DEFLECTRO, AIR, W/SEAL
48WCI 5303001448
