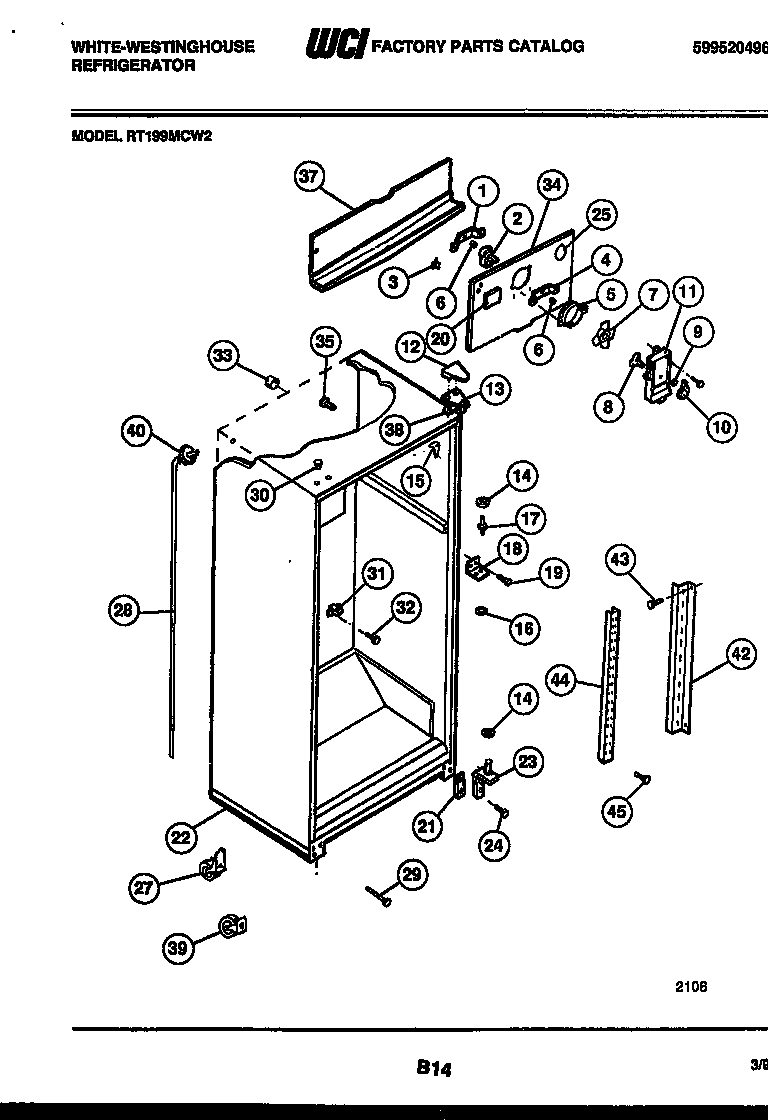

RT199MCW2 03 – CABINET PARTS

RT199MCW2 03 – CABINET PARTS

Written by

in

RT199MCW2 03 – CABINET PARTS

Products

PositionProduct
*42682PLUG, BUTTON, CABINET LINER (NI)
*42683WCI 5303001287
*42683TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
*42683WCI 5303001286
1BRACKET-MOTOR MTG, REAR
25300158289 Frigidaire Evaporator Fan Motor
3WCI 5308000107
4WCI 5303205118
5RING-FAN ORIFICE
5A218843801 Frigidaire Refrigerator Screw
6G187559 Frigidaire Refrigerator Bushing
75308000010 Frigidaire Refrigerator Evaporator Fan Blade
8DAMPER-FAN COVER
9Nut,push-on
10WCI 3206381
11BLABEL – FAN COVER (NON-ILLUSTRATED)
11WCI 3206318
12COVER-UPPER HINGE, WHITE
13BRACKET-UPPER HINGE
13ATAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
13BTAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
14WASHER, .34 X .62 X .05, NYLON
15TRIM-CABINET CORNER, WHITE
16WCI 5308000186
17WCI 5308000184
18BRACKET-CTR HINGE
19WCI 5308012258
20PLUG-DECORATIVE, ICE MAKER HOLE
21WCI 5303212488
22WCI 5303212487
23BRACKET-LOWER HINGE, W/ HINGE PIN
24241710601 Frigidaire Refrigerator Screw
255303208309 Frigidaire Refrigerator Plug Hole
27WCI 5308009773
27A5304455651 Frigidaire Refrigerator Screw
27ABOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
28WCI 5303210377
29BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
30PLUG-BUTTON, WHITE
31WCI 5308000056
32WCI 5303001361
33TUBE-RUBBER
34A5304455650 Frigidaire Refrigerator Screw
34WCI 5308009771
34BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
35SUPPORT-COIL COVER
37WCI 5303001470
38SHIM – UPPER HINGE
39WCI 5303212490
40WCI 5303207353
42CHANNEL, RH & LH
435304455852 Frigidaire Refrigerator Screw
44WCI 5303015409
45WCI 5308016568
