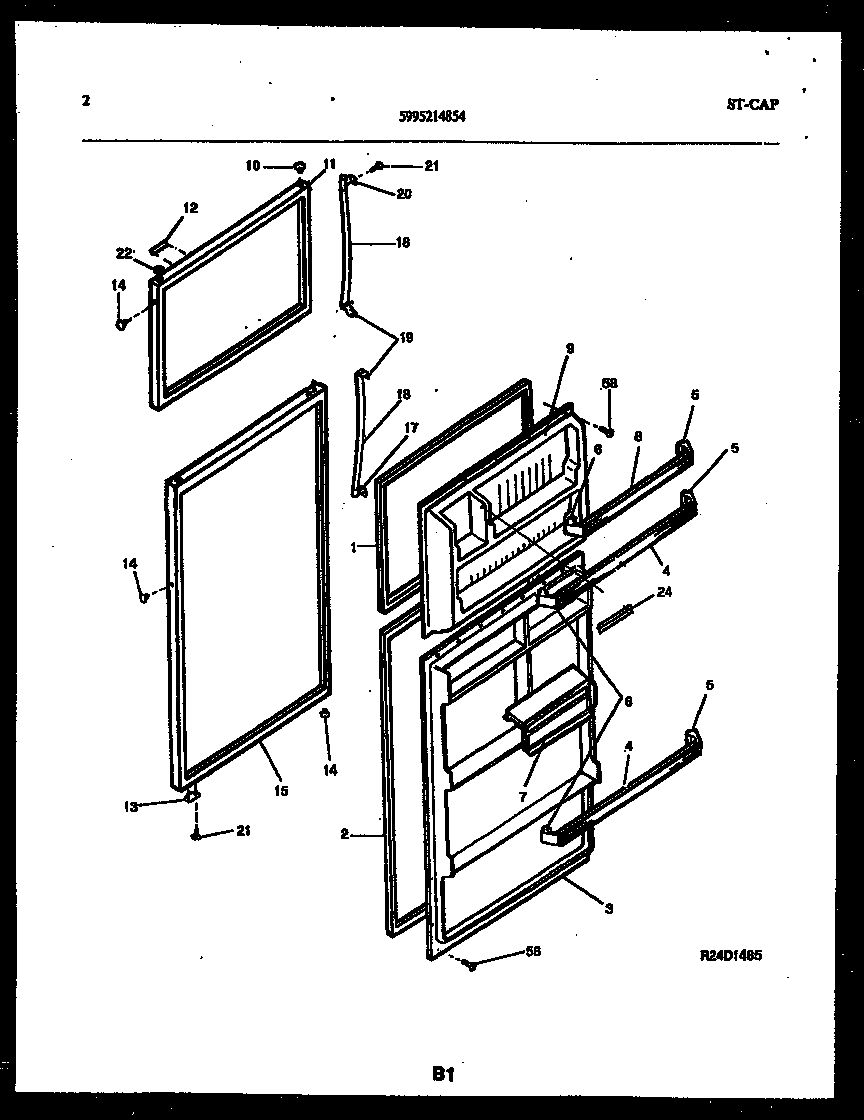

RT19F3DX3B 02 – DOOR PARTS

Products

Position	Product
*42641	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001486
2	GASKET-REFRIG DOOR
3	WCI 5303275026
4	WCI 5303275029
5	WCI 5303274990
6	WCI 5303274989
7	WCI 5303275015
8	WCI 5303275030
9	WCI 5303275054
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	PANEL-FRZR-OUTER-ALMOND
12	NAMEPLATE ASSY
13	DOOR STOP, REFR SECTION
13A	WCI 5308000255
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	WCI 5317869411
17	WCI 5303001297
18	WCI 5303272495
19	WCI 5303001296
20	BOTTOM HANDLE END CAP
21	WCI 5308011745
22	BEARING-HINGE
24	WCI 5303275052
58	5304455651 Frigidaire Refrigerator Screw
