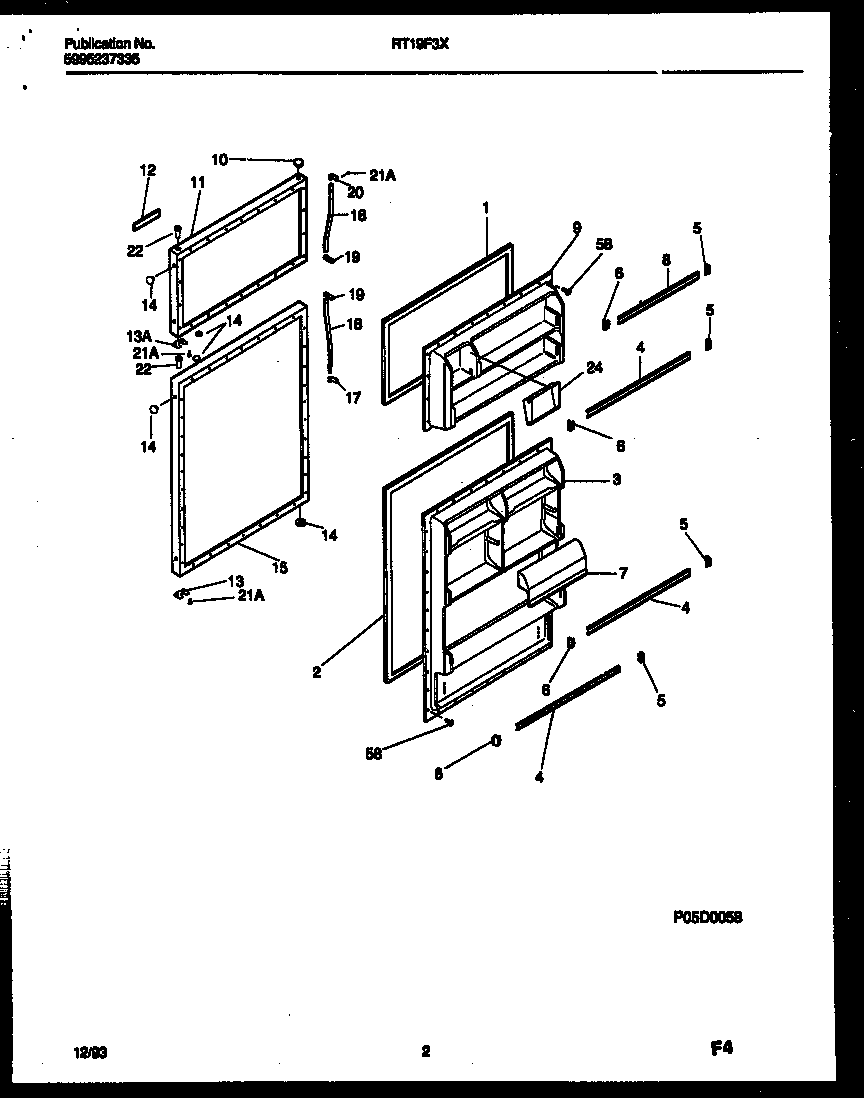

RT19F3DX3C 02 – DOOR PARTS

RT19F3DX3C 02 – DOOR PARTS

Written by

in

RT19F3DX3C 02 – DOOR PARTS

Products

PositionProduct
*61726INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001486
2GASKET-REFRIG DOOR
3WCI 5303275026
4WCI 5303275027
5WCI 5303274990
6WCI 5303274989
7WCI 5303275015
8TRIM-HALF, SNAP-ON, (2)
9WCI 5303275054
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR-OUTER-ALMOND
12NAMEPLATE ASSY
13AWCI 5308000255
13DOOR STOP, REFR SECTION
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5317869411
17WCI 5303001297
18WCI 5303272495
19WCI 5303001296
20BOTTOM HANDLE END CAP
21WCI 5308011745
22BEARING-HINGE
24WCI 5303275052
585304455651 Frigidaire Refrigerator Screw
