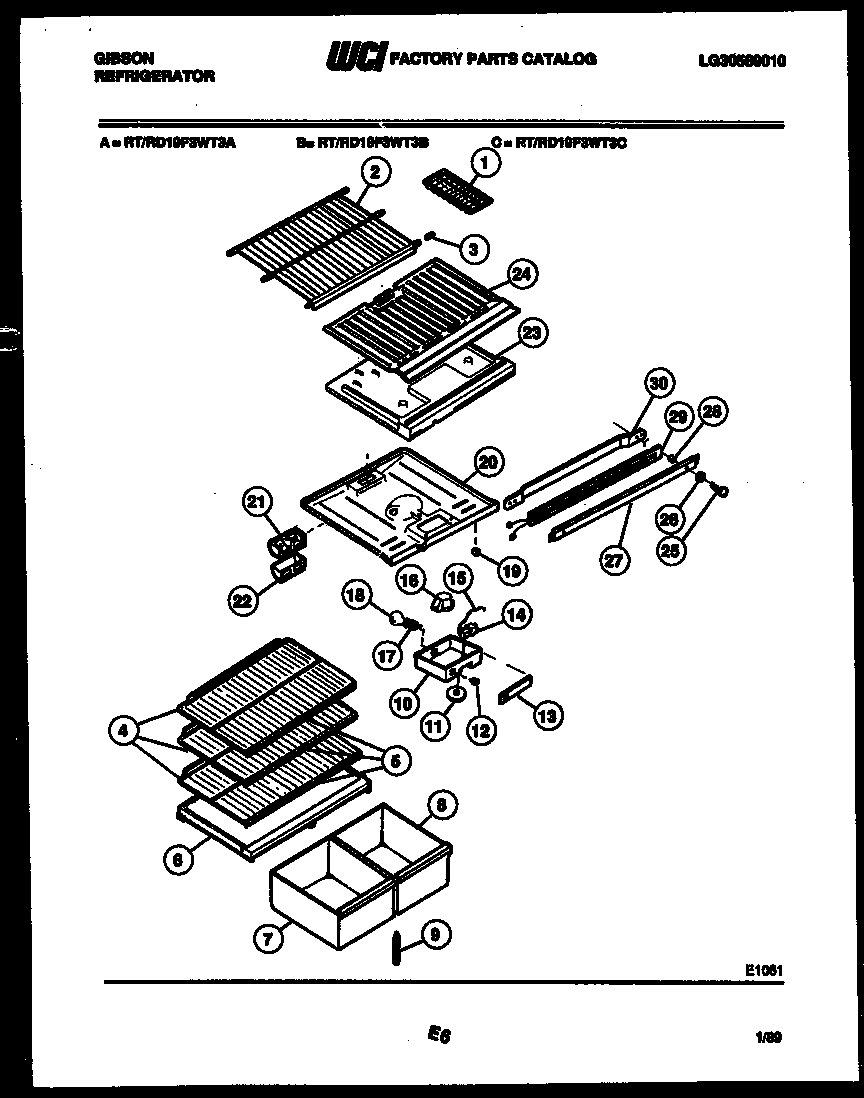

RT19F3WT3B 04 – SHELVES AND SUPPORTS

RT19F3WT3B 04 – SHELVES AND SUPPORTS

Written by

in

RT19F3WT3B 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*15937HOT TUBE REPAIR KIT
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI G184572-04
3WCI G166495-01
4WCI G181153-06
5WCI G172410-06
6COVER, CRISPER
6HARNESS-COMPRESSOR
7PAN-SMALL LS
7CORD, SERVICE
8WCI G176639-23
8WCI G183584
95304455651 Frigidaire Refrigerator Screw
9SUPPORT, CRISPER COVER
10A5304455650 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
10WCI G176722-03
11240396801 Frigidaire Refrigerator Tube Clamp
11KNOB
12WCI G178402-02
13HEAT-EXCH
13WCI G188379-01
14WCI 3200810
14AWCI G107080
145317842502 Frigidaire Defrost Heater
15EVAPORATOR
15TUBE
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
16A5304455649 Frigidaire Refrigerator Screw
17INSULATOR
17SOCKET LIGHT
18316538904 Frigidaire Oven Lamp Light
18BLOCK, EVAPORATOR, RH
195309918806 Frigidaire Refrigerator Light Switch Door
19PLUG, EVAPORATOR INSULATION BLOCK, R H
20BLOCK, LEFT SIDE
20TOP-REFRIGERATOR
20ASCREW (5)
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
21DEFLECTOR AIR
22WCI G162178
22PLATE
23DIVIDER, CENTER
23AHARNESS, WIRING
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24BOTTOM, FC
24WASHER, COMPRESSOR MOUNTING (4)
25SCREW, BRACKET MOUNTING (4)
25CLIP, COMPRESSOR MOUNTING (4)
26WASHER (2)
26B5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26ADEFROST PAN & NUT
27WCI 3200370
27WCI 3200369
27WCI 3200368
27MULLION-AVOC
27NUT, LOCK
27WCI 3200366
28PAN RETAINER KIT-SERVICE
28SPACER (NON-ILLUSTRATED)
29WCI 3018916
29COMPRESSOR
30STRAP, MULLION MOUNTING
30WCI G182225-11
31WCI G185797
31WCI G187874
32RETAINER, OVERLOAD
345303006412 Frigidaire Refrigerator Cover Mounting Strap
