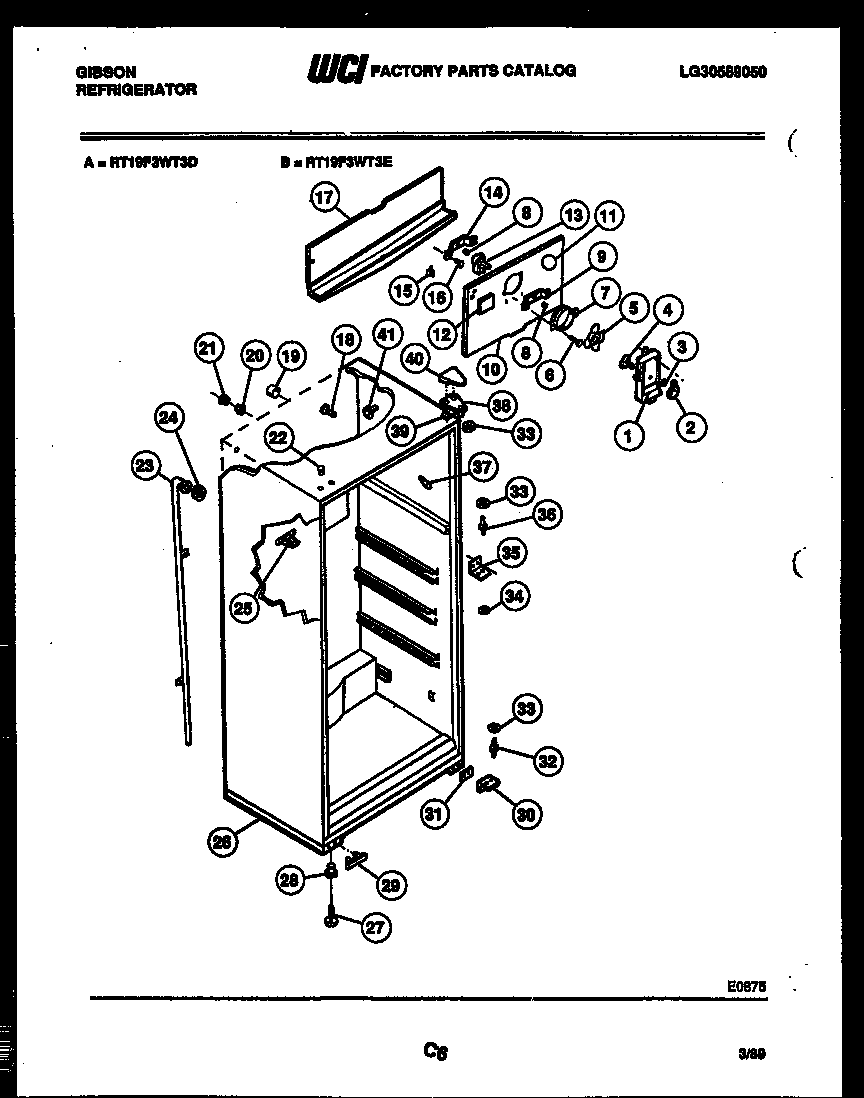

RT19F3WT3D 03 – CABINET PARTS

RT19F3WT3D 03 – CABINET PARTS

Written by

in

RT19F3WT3D 03 – CABINET PARTS

Products

PositionProduct
*147115304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*14711BUTTON, LINER
1WCI G163061-81
2KNOB-DAMPER
3NUT, DAMPER MOUNTING
4DAMPER FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
65304455650 Frigidaire Refrigerator Screw
7RING, FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI G185302
10WCI G177529
10ANUT, ORIFICE (2)
10B240396801 Frigidaire Refrigerator Tube Clamp
11PLUG-SHORT TEST HOLE (NON-ILLUSTRATED)
12BUTTON-DECORATIVE
135300158289 Frigidaire Evaporator Fan Motor
14WCI G185303
15WCI G164571
165304455651 Frigidaire Refrigerator Screw
17WCI G177534
18WCI G163669
19TUBE, INSULATION (2)
20WCI G174733
21WCI G174734
22WCI G174747–01
22WCI G174747-09
22WCI G174747-11
22WCI G174747-10
22WCI G174747-08
23TUBE, DRAIN
24RING, SEAL (NON-ILLUSTRATED)
25SPOUT DRAIN TUBE
25APIN PUSH SPOUT (2)
26WCI G490004-02
27LEG-LEVELING (2)
28NUT, ANCHOR (2)
29WCI G166912
30HINGE-BRACKET-BOTTOM
31ATAPPING, PLATE (2)
31SHIM, HINGE
325303001321 Frigidaire Refrigerator Lower Hinge Pin
33WCI G103903
34WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
35BWASHER (2)
35BRACKET, HINGE CENTER
35ASCREW, BRACKET MOUNTING (4)
36WCI G142220
37WCI 3202339
37WCI 3202338
37WCI 3202340
37WCI 3202336
37CORNER TRIM-AVOCADO
38BRACKET, TOP HINGE
38A241710601 Frigidaire Refrigerator Screw
39WCI G183861
40COVER, TOP HINGE, ALMOND
40COVER, TOP HINGE, AVOCADO
40COVER HINGE, WHITE
40COVER HINGE, WHEAT
40COVER HINGE, COFFEE
415304509705 Frigidaire Refrigerator Grommet
