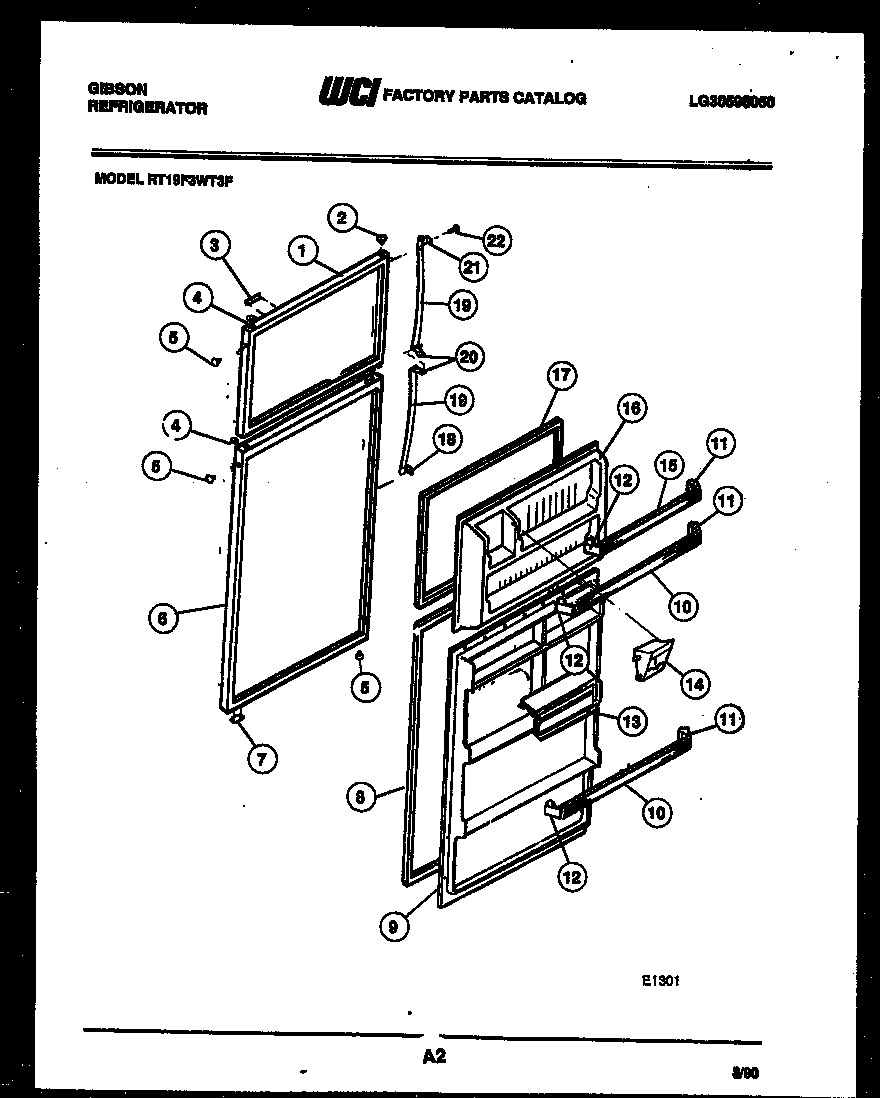

RT19F3WT3F 02 – DOOR PARTSadmin2025-04-26T10:21:47+00:00RT19F3WT3F 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *30925 | WCI G89643 |
| 1 | PANEL, OUTER, ALMOND |
| 1 | WCI G178690-10 |
| 1 | PANEL, OUTER, WHEAT |
| 1 | PANEL, OUTER, AVOCADO |
| 1 | PANEL, OUTER, WHITE |
| 2 | WCI G169332-10 |
| 2 | WCI G169332-09 |
| 2 | WCI G169332-08 |
| 2 | WCI G169332-01 |
| 2 | WCI G169332-11 |
| 3 | NAMEPLATE |
| 3B | LABEL-LOWER |
| 3C | TAPE-FRAME MOUNTING (NON-ILLUSTRATED) |
| 3A | LABEL, UPPER |
| 4 | BEARING, HINGE (3) |
| 5 | WCI G162977-10 |
| 5 | WCI G162977-09 |
| 5 | WCI G162977-11 |
| 5 | WCI G162977-08 |
| 5 | 240494001 Frigidaire Refrigerator Plug Button |
| 6 | REFRIGERATOR DOOR-WHITE |
| 6 | REFRIGERATOR DOOR-ALMOND |
| 6 | REFRIGERATOR DOOR-WHEAT |
| 6 | REFRIGERATOR DOOR-COFFEE |
| 6 | REFRIGERATOR DOOR-AVOCADO |
| 7 | STOP, DOOR. PC & FC (2) |
| 8 | GASKET |
| 9 | WCI G187452-02 |
| 10 | RACK-DOOR (3) |
| 11 | SUPPORT, RACK, RH, (PC) (2) |
| 12 | SUPPORT, RACK, LH (PC) (2) |
| 13 | WCI G187460-01 |
| 14 | DISPENSER-JUICE CAN |
| 15 | RACK-FRZR-UPPER |
| 16A | 5304455651 Frigidaire Refrigerator Screw |
| 16 | WCI 3203048 |
| 17 | GASKET |
| 18 | WCI G179801 |
| 19 | WCI G170495-24 |
| 20 | WCI G187329-01 |
| 21 | WCI G179800 |
| 22 | WCI G185566 |
