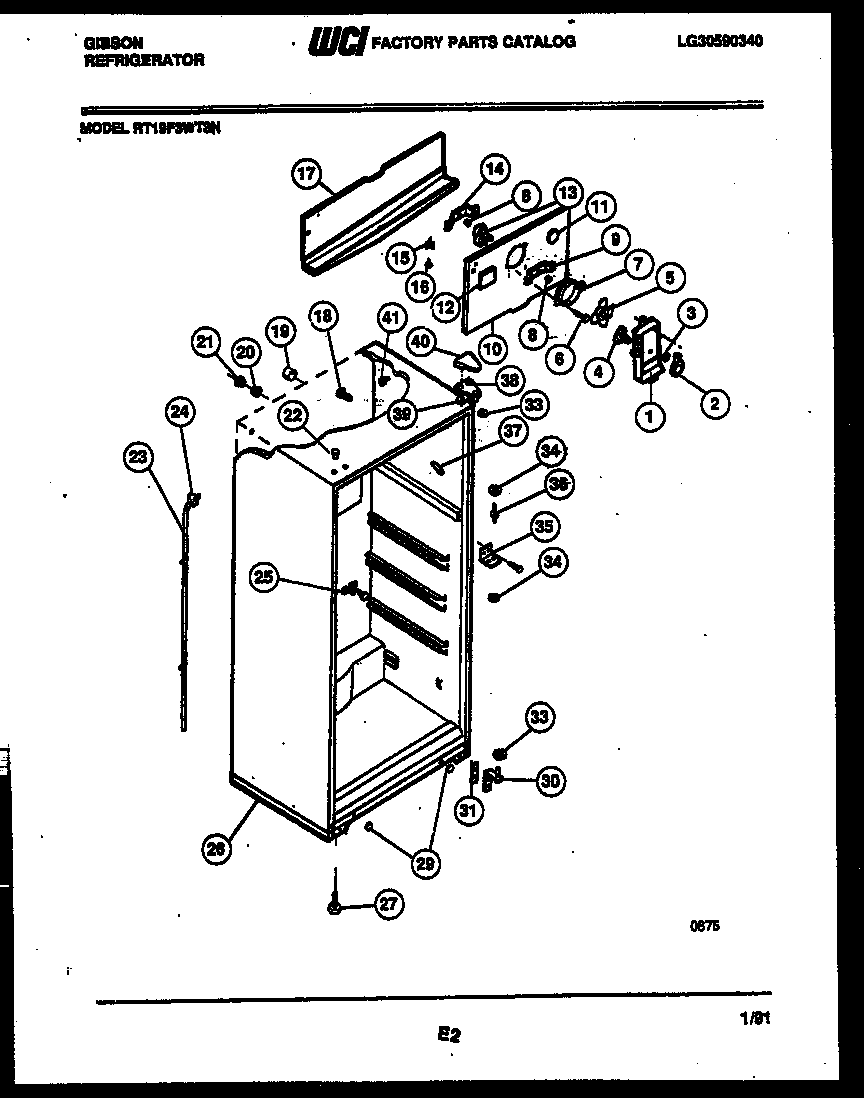

RT19F3WT3H 03 – CABINET PARTS

RT19F3WT3H 03 – CABINET PARTS

Written by

in

RT19F3WT3H 03 – CABINET PARTS

Products

PositionProduct
*251335304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*25133PLUG, BUTTON, CABINET LINER (NI)
1WCI G163061-81
2WCI 5308000081
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303001226
10WCI 5308009771
10ANUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10B5304455650 Frigidaire Refrigerator Screw
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5808013636
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
15WCI 5308000107
16218843801 Frigidaire Refrigerator Screw
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
22BUTTON-HINGE-AVOCADO
22BUTTON-HINGE-WHEAT
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
22PLUG, COFFEE
23A5304455651 Frigidaire Refrigerator Screw
23WCI 5303210377
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
26WCI 5303212487
27Screw-leveling,(2)
29WCI 5303212923
30ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
30BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
30C241710601 Frigidaire Refrigerator Screw
30BRACKET-LOWER HINGE, W/ HINGE PIN
31WCI 5303212488
33WASHER, .34 X .62 X .05, NYLON
34WCI 5308000186
35AWCI 5308012258
35BWASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
37WCI 5303202338
37CORNER
37WCI 5303202339
37TRIM-CABINET CORNER, WHITE
38BRACKET-UPPER HINGE
38ATAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM – UPPER HINGE
40COVER-HINGE-AVOCADO
40COVER – HINGE-WHEAT
40COVER-UPPER HINGE, ALMOND
40WCI 5303001666
40COVER-UPPER HINGE, WHITE
415304509705 Frigidaire Refrigerator Grommet
