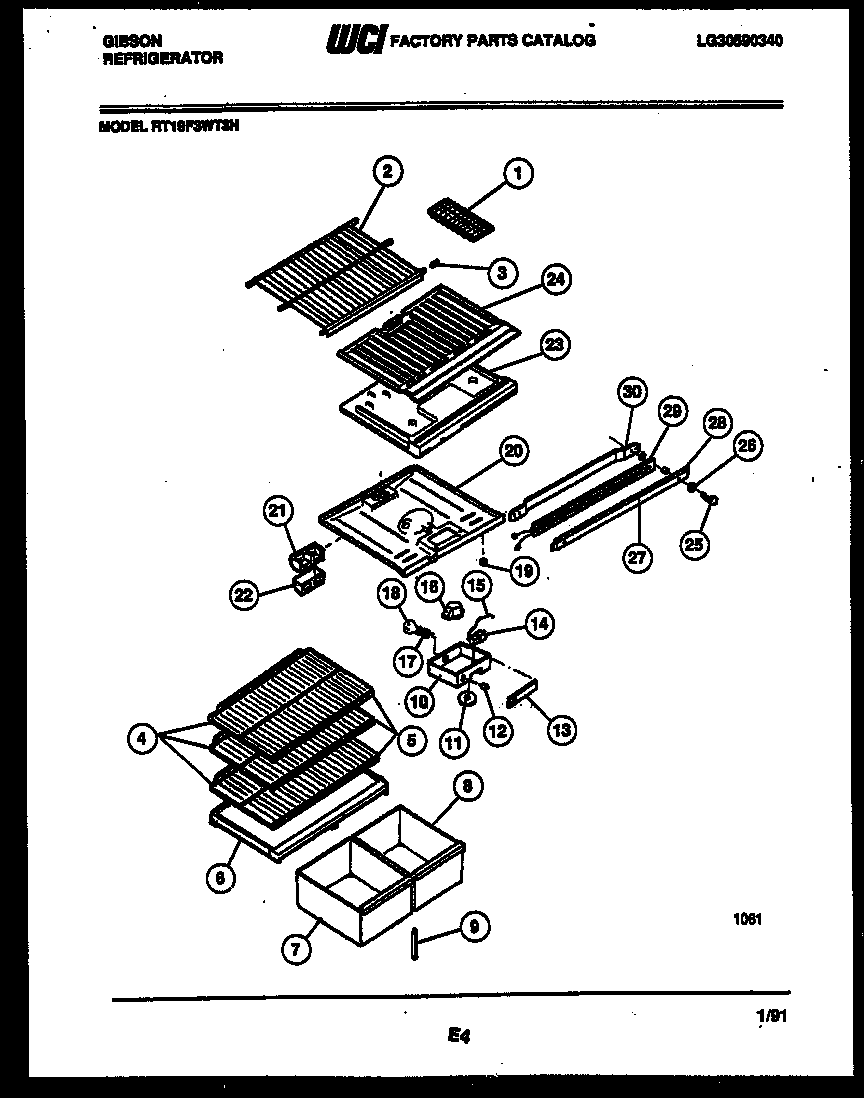

RT19F3WT3H 04 – SHELVES AND SUPPORTS

RT19F3WT3H 04 – SHELVES AND SUPPORTS

Written by

in

RT19F3WT3H 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI G184572-04
3END CAP-SHELF,PROTECTOR
4WCI G181153-06
5TRIM-SHELF
6WCI 5303001493
7PAN-SMALL LS
8WCI G176639-23
9SUPPORT-CRISPER CVR, ADJUSTABLE
10A5304455650 Frigidaire Refrigerator Screw
10WCI 5317672203
11WCI 5308010011
12SWITCH-ENERGY SAVER, SLIDE TYPE
13WCI G188379-01
14WCI 5303200810
14AWCI 5303001260
15TUBE
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17SOCKET-LIGHT/LAMP
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20BWCI 5303001380
20TOP PANEL-REFR, W/SNAP BUSHING
20ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
21DEFLECTOR-AIR
22COVER – AIR DEFLECTOR
23AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
23DIVIDER, STYROFOAM
24WCI 5303211427
25WCI 5308012258
26WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
27WCI 5303200368
27WCI 5303200367
27WCI 5303200369
27WCI 5303200370
27WCI 5303200366
28SPACER-MULLION MTG, STEEL
29WCI 5303210351
30WCI 5308010008
