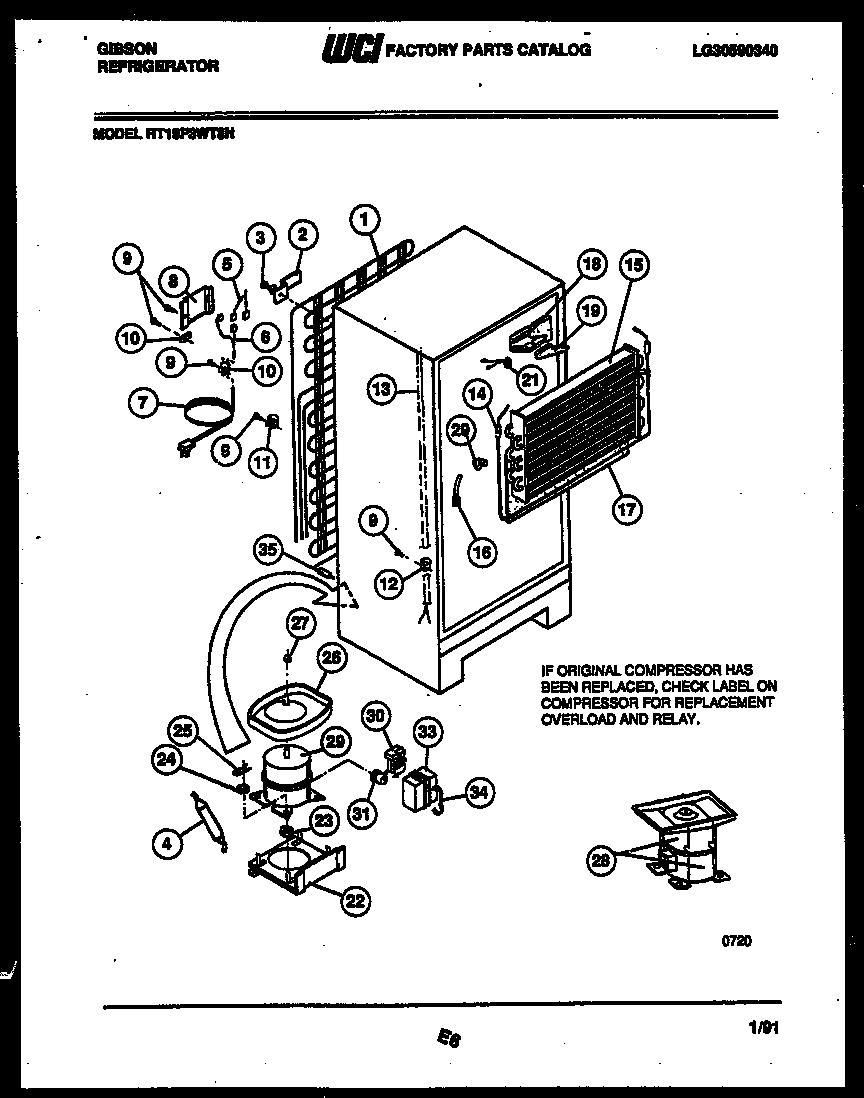

RT19F3WT3H 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT19F3WT3H 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT19F3WT3H 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*25155HOT TUBE REPAIR KIT
1WCI 5300163133
2BRACKET-MTG (4)
35308000039 Frigidaire Refrigerator Screw
3AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
6WIRING HARNESS, COMPRESSOR,
7CORD-ELECTRIC POWER
8WCI 5303001197
95304455651 Frigidaire Refrigerator Screw
105303001199 Frigidaire Refrigerator Wiring Harness Clamp
125308000133 Frigidaire Refrigerator Clamp
13WCI 5308000728
145317842502 Frigidaire Defrost Heater
15WCI 5300162506
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29COMPRESSOR W/ ELECTRICALS-SERVICE
30216594300 Frigidaire Refrigerator Starter
345303006412 Frigidaire Refrigerator Cover Mounting Strap
355303017691 Frigidaire Refrigerator Spacer-Tube
