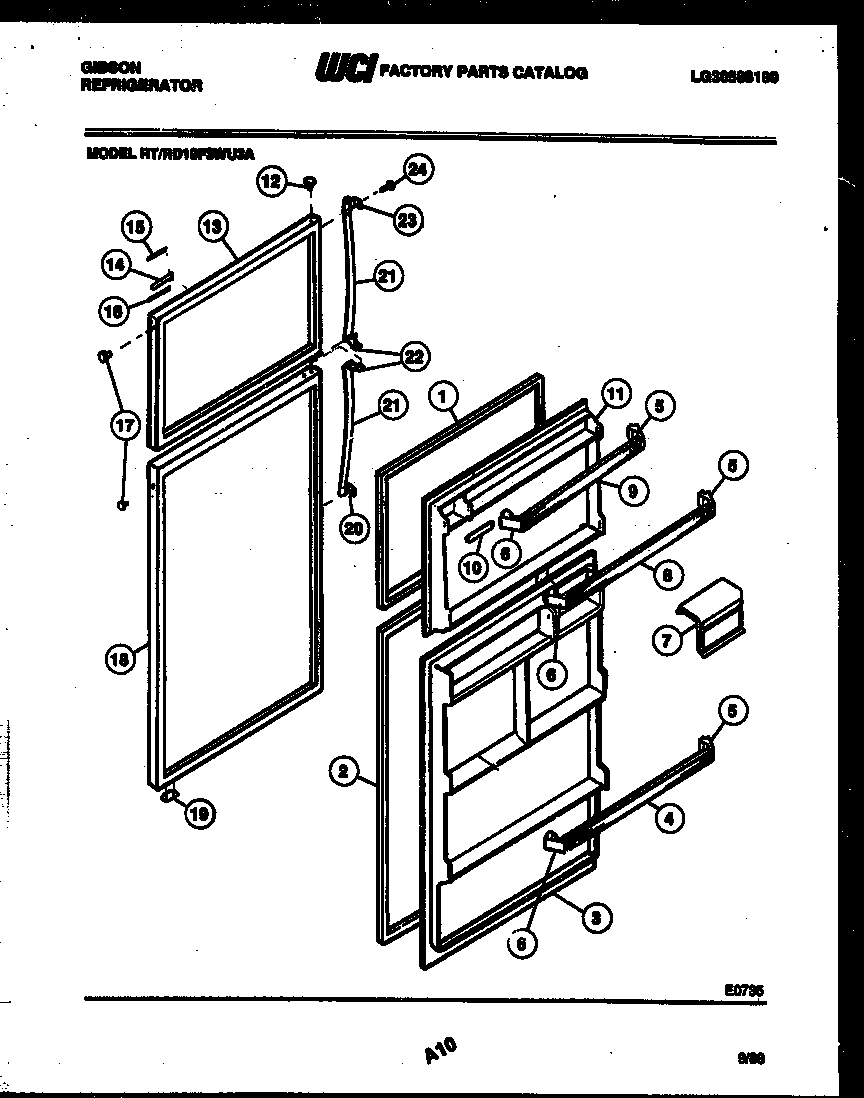

RT19F3WU3A 02 – DOOR PARTS

Products

Position	Product
*11156	WCI G89643
1	GASKET
2	GASKET
3	WCI G187452-02
5	SUPPORT, RACK, RH, (PC) (2)
6	SUPPORT, RACK, LH (PC) (2)
7	WCI G187460-01
8	RACK-DOOR (3)
9	RACK-FRZR-UPPER
10	RACK-JUICE CAN
11	PANEL, INNER
11A	5304455651 Frigidaire Refrigerator Screw
12	WCI G169332-11
12	WCI G169332-08
12	WCI G169332-10
12	WCI G169332-01
12	WCI G169332-09
13	PANEL, OUTER, WHEAT
13	PANEL, OUTER, AVOCADO
13	WCI G178690-10
13	PANEL, OUTER, ALMOND
13	PANEL, OUTER, WHITE
14A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
14	NAMEPLATE
15	LABEL, UPPER
16	LABEL-LOWER
17	240494001 Frigidaire Refrigerator Plug Button
17	WCI G162977-11
17	WCI G162977-08
17	WCI G162977-10
17	WCI G162977-09
18	REFRIGERATOR DOOR-AVOCADO
18A	BEARING, HINGE (3)
18	REFRIGERATOR DOOR-ALMOND
18	REFRIGERATOR DOOR-WHEAT
18	REFRIGERATOR DOOR-WHITE
18	REFRIGERATOR DOOR-COFFEE
19	STOP, DOOR. PC & FC (2)
20	WCI G179801
21	WCI G170495-24
22	WCI G187329-01
23	WCI G179800
24	WCI G185566
