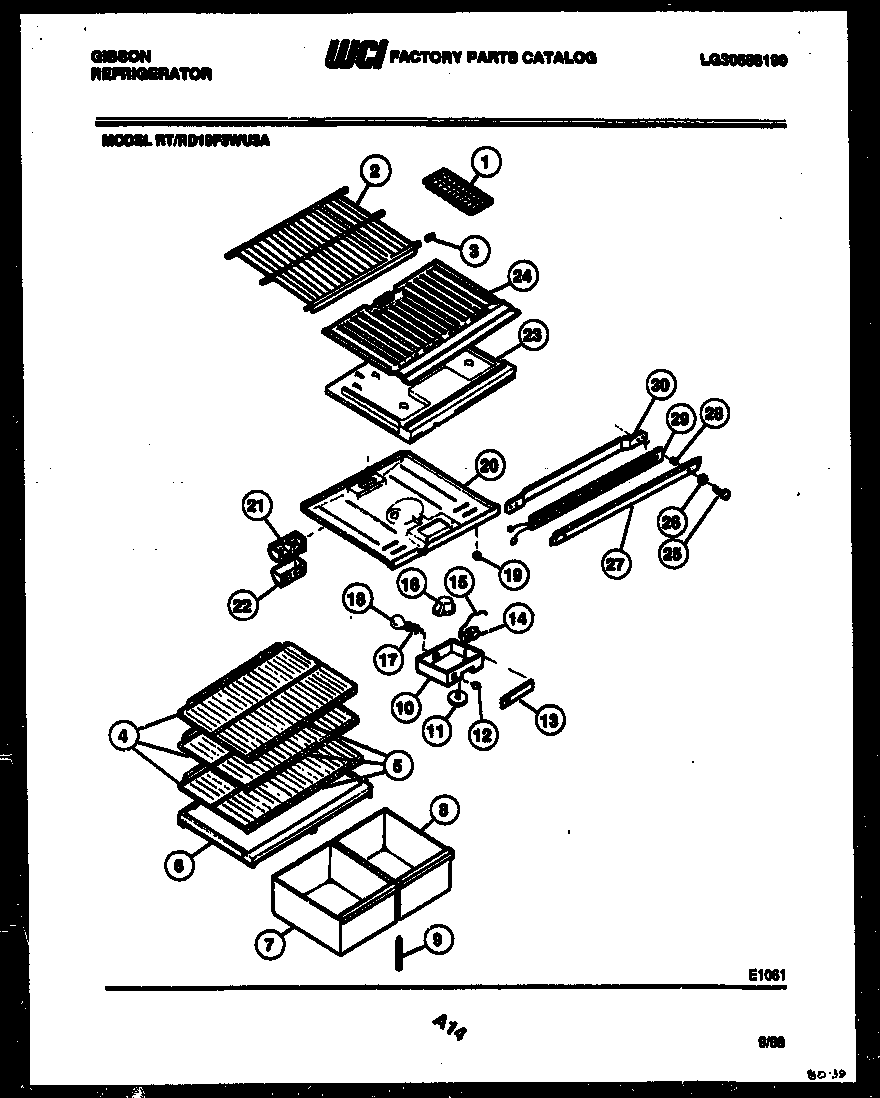

RT19F3WU3A 04 – SHELVES AND SUPPORTS

RT19F3WU3A 04 – SHELVES AND SUPPORTS

Written by

in

RT19F3WU3A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2WCI G184572-04
3WCI G166495-01
4WCI G181153-06
5WCI G172410-06
6COVER, CRISPER
7PAN-SMALL LS
8WCI G176639-23
9SUPPORT, CRISPER COVER
10A5304455650 Frigidaire Refrigerator Screw
10WCI G176722-03
11KNOB
12WCI G178402-02
13WCI G188379-01
14AWCI G107080
14COLD CONTROL
15TUBE
16A5304455649 Frigidaire Refrigerator Screw
16215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
17SOCKET LIGHT
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20TOP-REFRIGERATOR
20ASCREW (5)
21DEFLECTOR AIR
22WCI G162178
23DIVIDER, CENTER
23AHARNESS, WIRING
24BOTTOM, FC
25SCREW, BRACKET MOUNTING (4)
26WASHER (2)
27MULLION-AVOC
27WCI 3200370
27WCI 3200369
27WCI 3200368
27WCI 3200366
28SPACER (NON-ILLUSTRATED)
29WCI 3018916
30STRAP, MULLION MOUNTING
