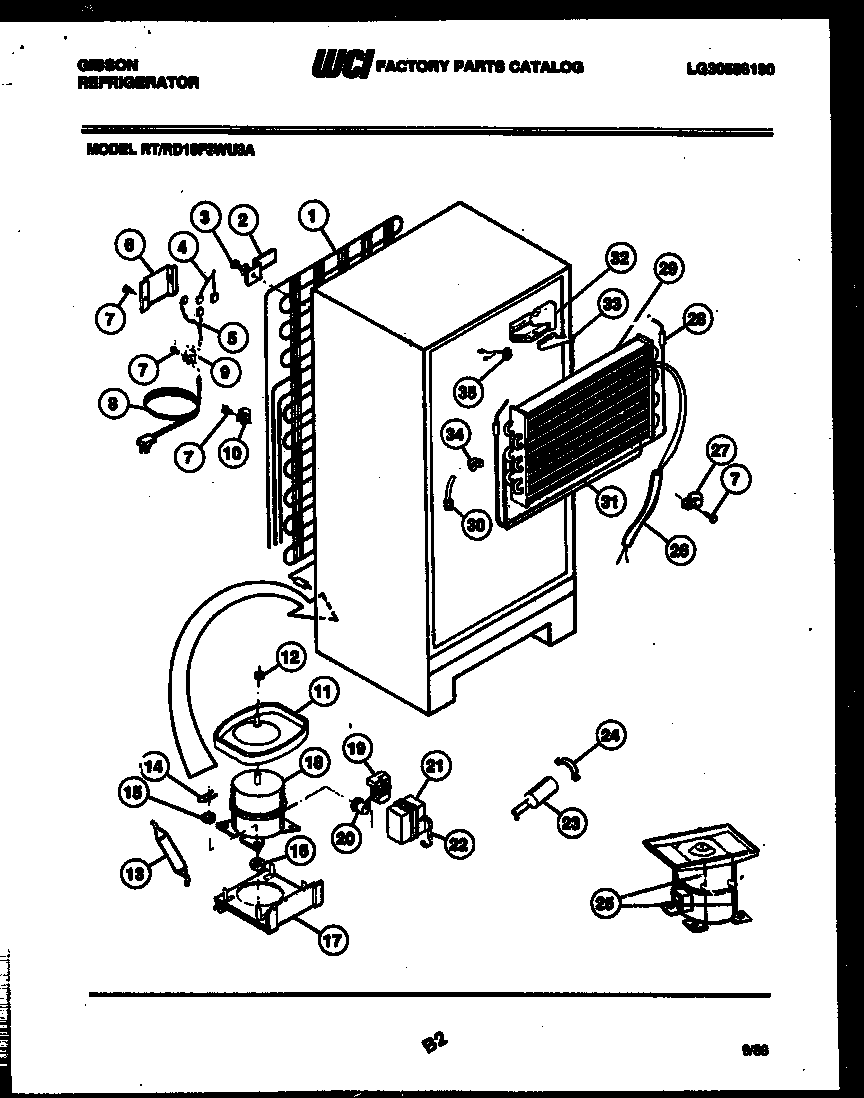

RT19F3WU3A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

Position	Product
*11187	HOT TUBE REPAIR KIT
1	WCI G162739
2	BRACKET-CONDENSER MOUNTING (4)
3	5308000039 Frigidaire Refrigerator Screw
4	HARNESS, WIRING
5	HARNESS-COMPRESSOR
6	WCI G183584
7	5304455651 Frigidaire Refrigerator Screw
8	CORD, SERVICE
9	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
10	CLAMP-CABLE
11	DEFROST PAN & NUT
12	WCI G164956
13	5303305677 Frigidaire Replacement Filter Dryer Filters
14	CLIP, COMPRESSOR MOUNTING (4)
15	WASHER, COMPRESSOR MOUNTING (4)
16	218513300 Frigidaire Refrigerator Compressor Mount Grommet
17	PLATE
18	WCI 3916004
19	WCI G182225-18
20	WCI G188877
22	5303006412 Frigidaire Refrigerator Cover Mounting Strap
23	CAPACITOR
24	STRAP-CAPACITOR
25	PAN RETAINER KIT-SERVICE
26	HEAT-EXCH
27	240396801 Frigidaire Refrigerator Tube Clamp
28	5317842502 Frigidaire Defrost Heater
29	EVAPORATOR
30	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
31	INSULATOR
32	BLOCK, EVAPORATOR, RH
33	PLUG, EVAPORATOR INSULATION BLOCK, R H
34	BLOCK, LEFT SIDE
35	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
