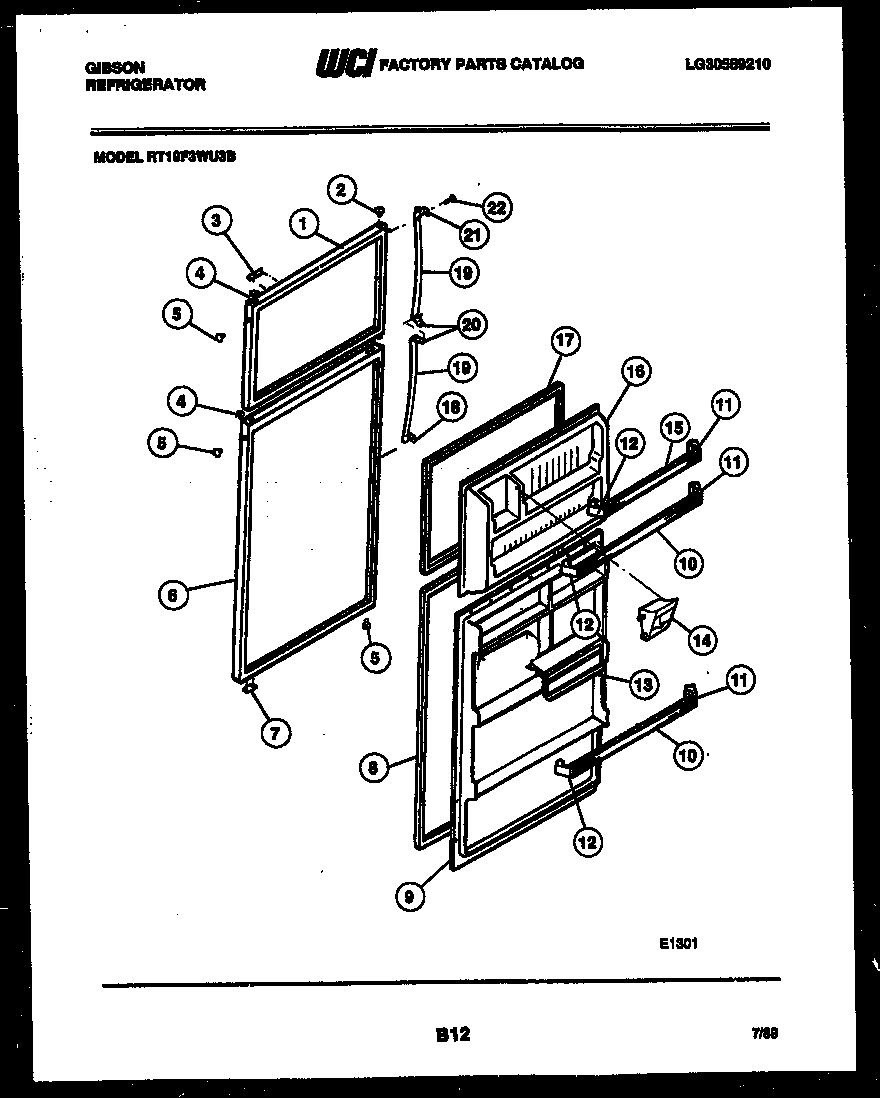

RT19F3WU3B 02 – DOOR PARTS

Products

Position	Product
*18194	WCI G89643
1	PANEL, OUTER, ALMOND
1	WCI G178690-10
1	PANEL, OUTER, WHEAT
1	PANEL, OUTER, AVOCADO
1	PANEL, OUTER, WHITE
2	WCI G169332-10
2	WCI G169332-09
2	WCI G169332-01
2	WCI G169332-08
2	WCI G169332-11
3	NAMEPLATE
3B	LABEL-LOWER
3C	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
3A	LABEL, UPPER
4	BEARING, HINGE (3)
5	WCI G162977-09
5	240494001 Frigidaire Refrigerator Plug Button
5	WCI G162977-08
5	WCI G162977-10
5	WCI G162977-11
6	REFRIGERATOR DOOR-COFFEE
6	REFRIGERATOR DOOR-WHEAT
6	REFRIGERATOR DOOR-AVOCADO
6	REFRIGERATOR DOOR-WHITE
6	REFRIGERATOR DOOR-ALMOND
7	STOP, DOOR. PC & FC (2)
8	GASKET
9	WCI G187452-02
10	RACK-DOOR (3)
11	SUPPORT, RACK, RH, (PC) (2)
12	SUPPORT, RACK, LH (PC) (2)
13	WCI G187460-01
14	DISPENSER-JUICE CAN
15	RACK-FRZR-UPPER
16	WCI 3203048
16A	5304455651 Frigidaire Refrigerator Screw
17	GASKET
18	WCI G179801
19	WCI G170495-24
20	WCI G187329-01
21	WCI G179800
22	WCI G185566
