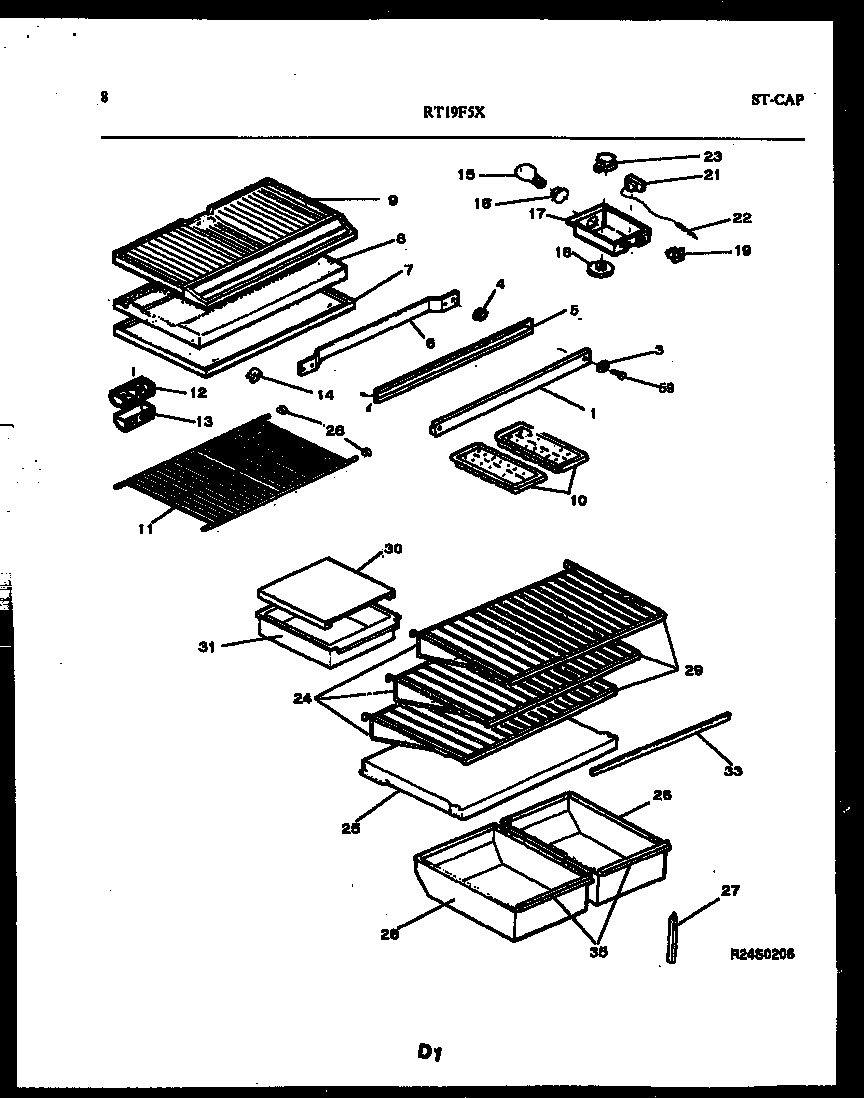

RT19F5DX3A 05 – SHELVES AND SUPPORTS

RT19F5DX3A 05 – SHELVES AND SUPPORTS

Written by

in

RT19F5DX3A 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8DIVIDER-FOAM
8AWCI 3018900
9WCI 5303211427
9A3205266 Frigidaire Refrigerator Edge Protector
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5317705904
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
17A5304455650 Frigidaire Refrigerator Screw
18WCI 5303209251
19WCI 5303272508
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24WCI 5318115304
25COVER, CRISPER PAN
26WCI 5303274981
26WCI 5303275274
27SUPPORT-CRISPER CVR, ADJUSTABLE
