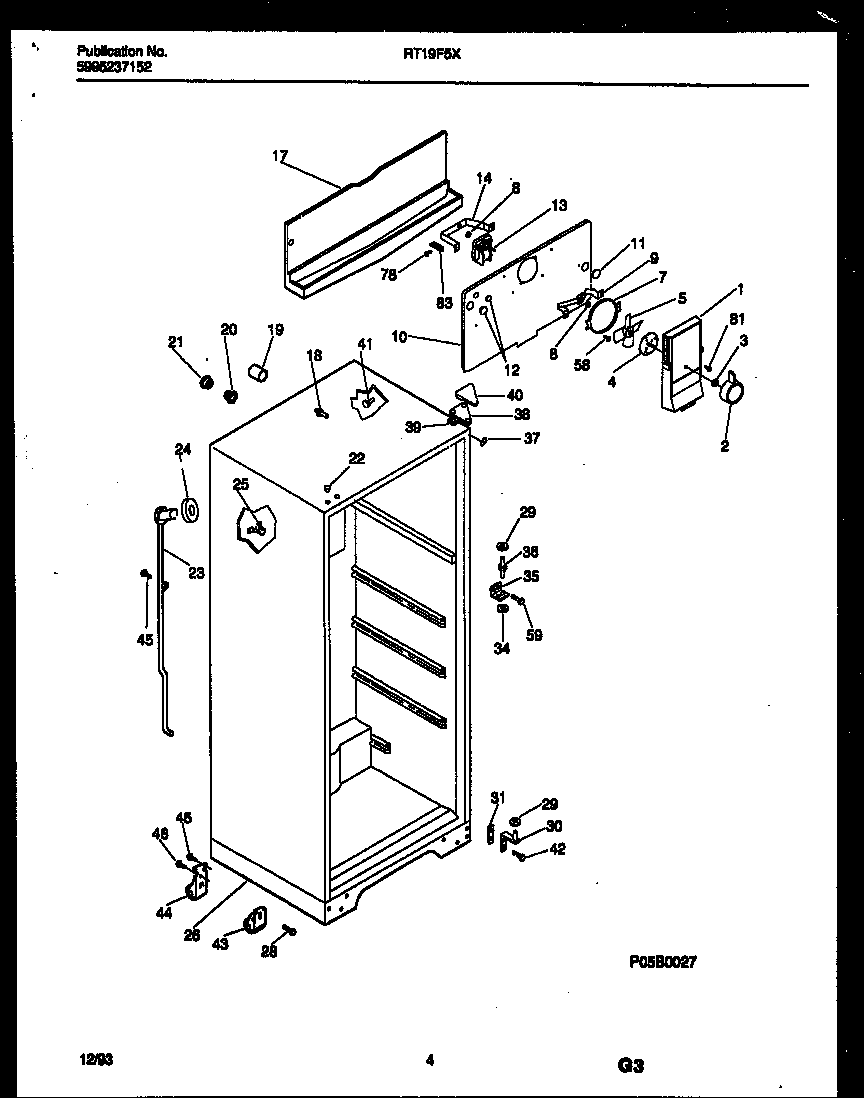

RT19F5WX3C 03 – CABINET PARTS

RT19F5WX3C 03 – CABINET PARTS

Products

PositionProduct
1AWCI 5303275150
1WCI 5303275059
2WCI 3206381
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10ANUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10WCI 5308009771
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303272494
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, WHITE
23WCI 5303210377
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
26SUPPORT - EVAP COVER, (2)
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WASHER, .34 X .62 X .05, NYLON
30WCI 215426800
31WCI 5303212488
34WASHER, .28 X .62 X .19, NYLON
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, WHITE
38BRACKET-UPPER HINGE
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM - UPPER HINGE
40COVER-UPPER HINGE, WHITE
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43ATAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
43BTAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
43WCI 5303212490
44WCI 5308009773
