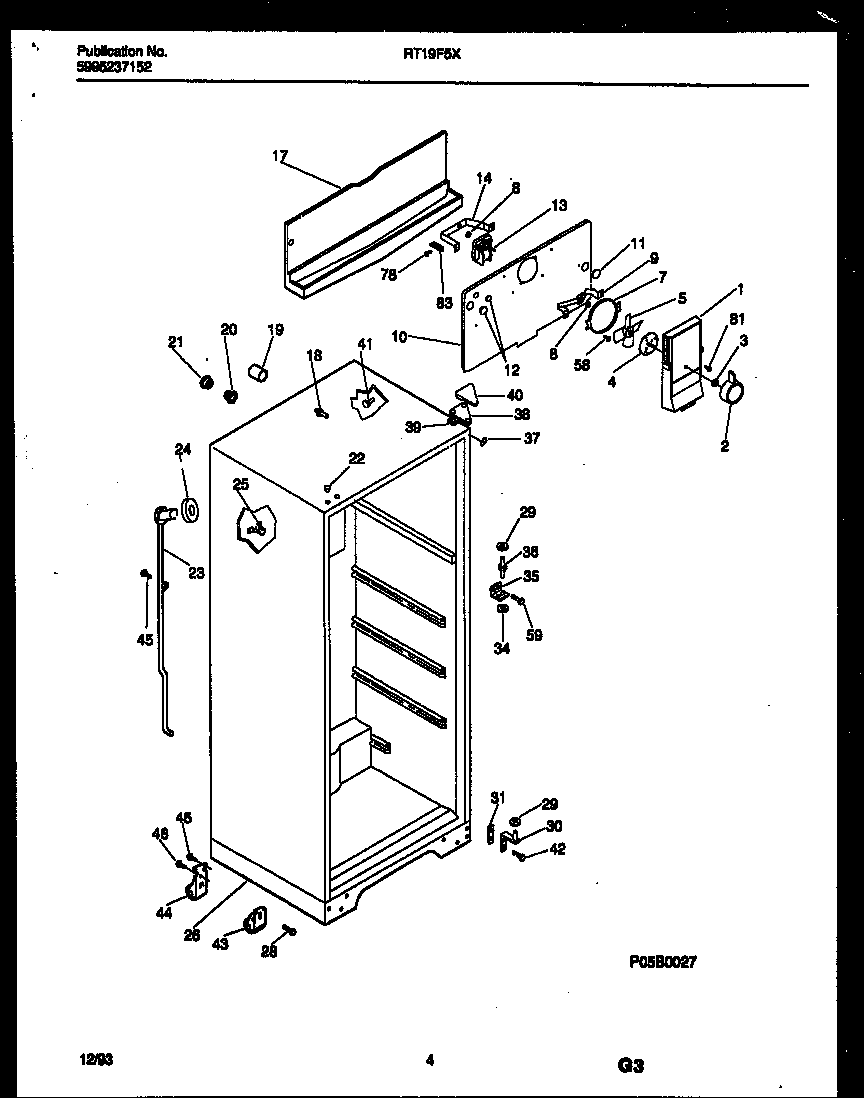

RT19F5YX3C 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303275059
1A	WCI 5303275150
2	WCI 3206381
3	Nut,push-on
4	DAMPER-FAN COVER
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
10	WCI 5308009771
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303272494
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	WCI 5303001470
18	SUPPORT-COIL COVER
19	TUBE-RUBBER
20	WCI 5303001286
21	WCI 5303001287
22	BUTTON-HINGE-WHEAT
23	WCI 5303210377
24	WCI 5303207353
25A	WCI 5303001361
25	WCI 5308000056
26	SUPPORT - EVAP COVER, (2)
28	BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 215426800
31	WCI 5303212488
34	WASHER, .28 X .62 X .19, NYLON
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	WCI 5303202338
38	BRACKET-UPPER HINGE
38B	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39	SHIM - UPPER HINGE
40	COVER - HINGE-WHEAT
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42	241710601 Frigidaire Refrigerator Screw
43	WCI 5303212490
43A	TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
43B	TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
44	WCI 5308009773
