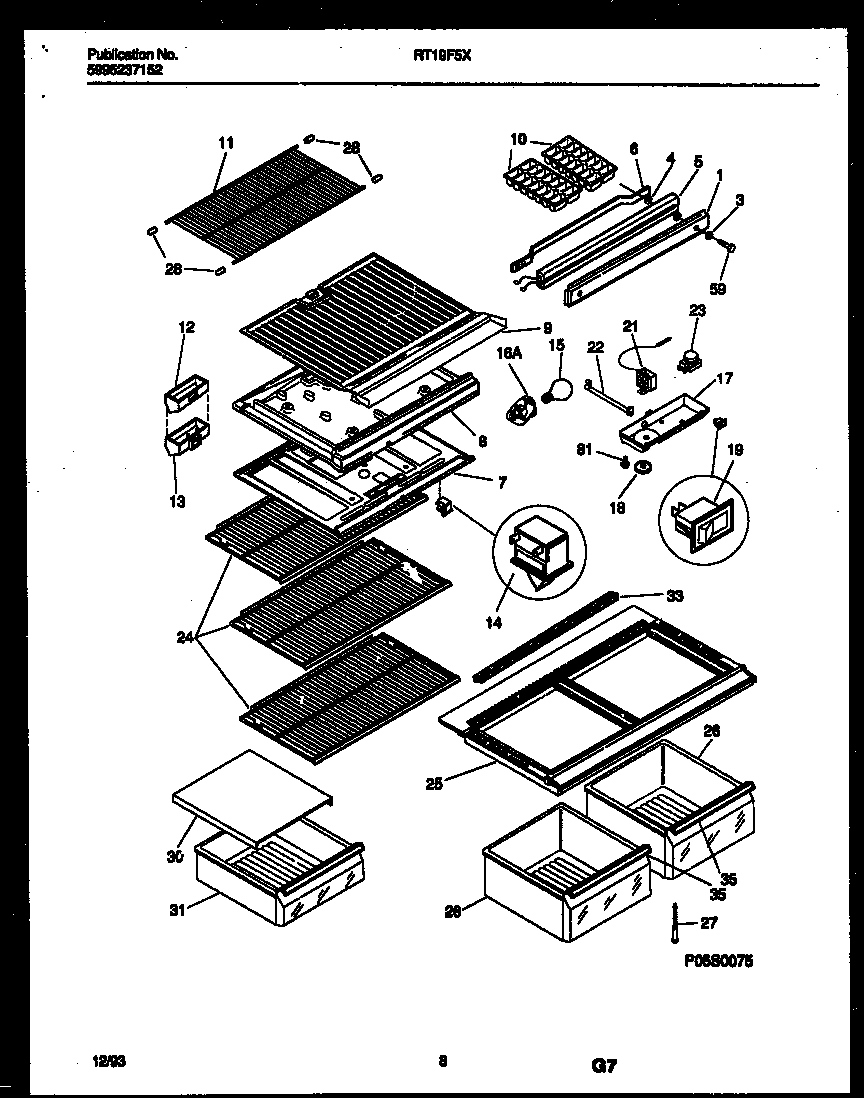

RT19F5YX3C 05 – SHELVES AND SUPPORTS

RT19F5YX3C 05 – SHELVES AND SUPPORTS

Written by

in

RT19F5YX3C 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*61815WCI 5303283297
1WCI 5303200368
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7AWCI 5303001380
7TOP – REFRIGERATOR
8B3205266 Frigidaire Refrigerator Edge Protector
8DIVIDER-FOAM
8AHARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED)
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
18WCI 5303206678
19SWITCH-ROCKER
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING WIRE
25WCI 5308010006
26WCI 5349001515
26WCI 5303274981
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
30WCI 5308000263
31WCI 5303274983
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
35TRIM-CRISPER PAN, RH & LH
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
