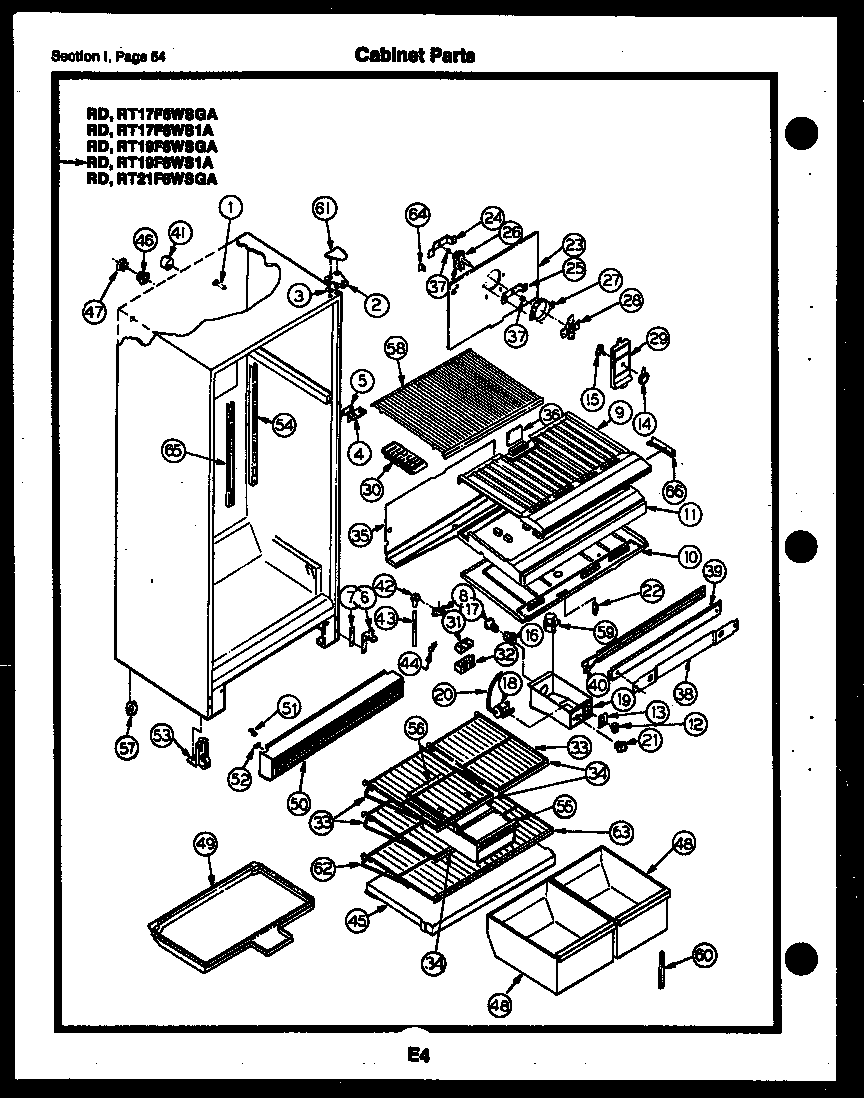

RT19F6WS1A 27 – CABINET PARTSadmin2025-04-26T10:22:21+00:00RT19F6WS1A 27 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WCI G163669 |
| 2 | BRACKET, TOP HINGE |
| 2B | WASHER, NYLON |
| 2A | WCI G174747--01 |
| 2C | 241710601 Frigidaire Refrigerator Screw |
| 3 | WCI G183861 |
| 4B | WCI G142220 |
| 4 | WCI G162384 |
| 4A | SCREW, BRACKET MOUNTING (4) |
| 5 | SHIM, HINGE |
| 6B | WCI G141673 |
| 6 | BRACKET-LOWER HINGE |
| 6A | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 6D | WCI G103903 |
| 6H | NUT, SPEED (2) |
| 6F | WASHER, NYLON |
| 6G | WCI G142361 |
| 6C | TAPPING PLATE (2) |
| 6I | SCREW - 1/4 X 1 (2) |
| 7 | SHIM, HINGE |
| 8 | SPOUT DRAIN TUBE |
| 8A | PIN PUSH SPOUT (2) |
| 9 | DIVIDER-BTM |
| 10 | DIVIDER-TOP |
| 10A | WCI G162673 (3) |
| 11 | DIVIDER-STYRO |
| 12 | SWITCH - SLIDE (NON-ILLUSTRATED) |
| 13 | LABEL - CONTROL BOX |
| 14 | WCI G162747-06 |
| 15 | DAMPER FAN COVER |
| 15A | NUT, DAMPER MOUNTING |
| 16 | SOCKET LIGHT |
| 17 | 316538904 Frigidaire Oven Lamp Light |
| 18 | COLD CONTROL |
| 18A | WCI G107080 |
| 19A | 5304455650 Frigidaire Refrigerator Screw |
| 19 | WCI G174765-03 |
| 20 | TUBE |
| 21 | KNOB-TEMP CONTROL |
| 22 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 23 | WCI G162050-02 |
| 24 | BRACKET, REAR MOTOR MOUNTING |
| 25 | BRACKET, FRONT MOTOR MOUNTING |
