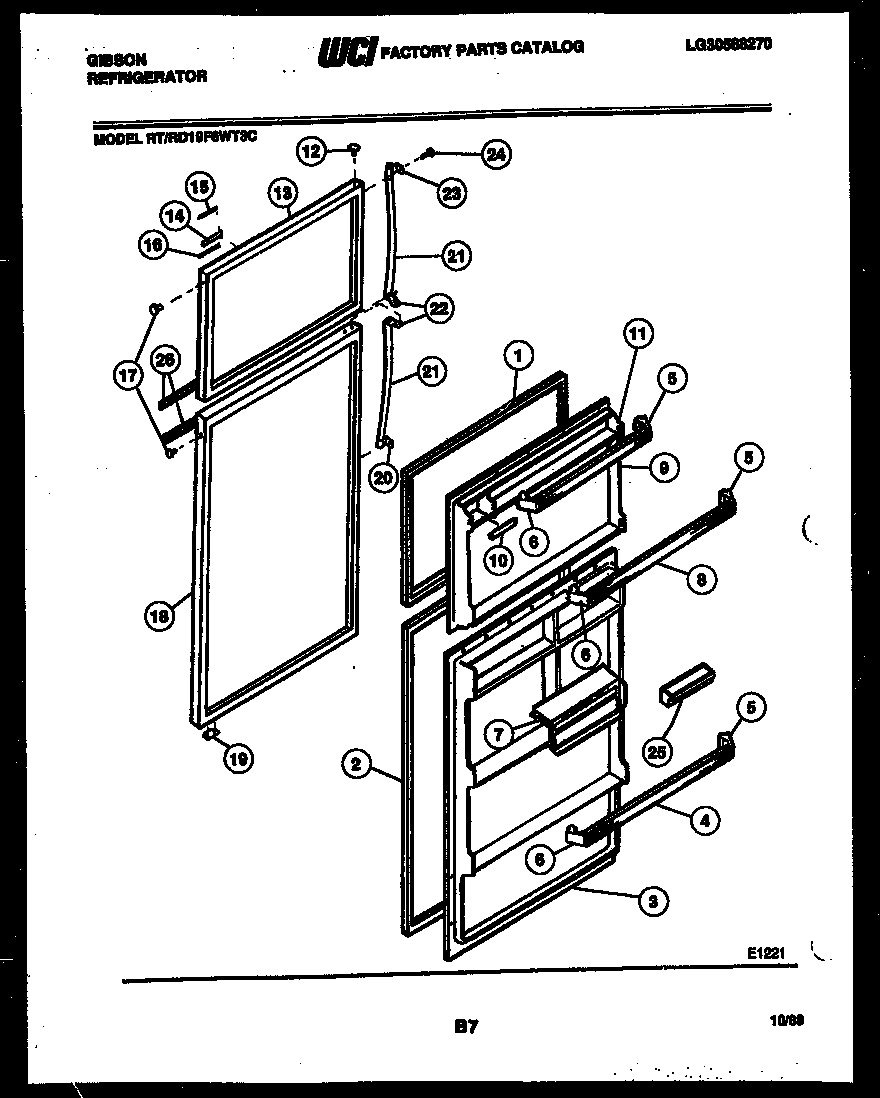

RT19F6WT3C 02 – DOOR PARTS

Products

Position	Product
*12939	SNUGGER-SHELF (2) (NON-ILLUSTRATED)
1	GASKET
2	GASKET
3	WCI G187452-02
5	SUPPORT, RACK, RH, (PC) (2)
6	SUPPORT, RACK, LH (PC) (2)
7	DOOR, DAIRY (2)
8	RACK, DOOR (2)
9	WCI G161019-61
10	RACK, JUICE CAN
11	PANEL, INNER
11A	5304455651 Frigidaire Refrigerator Screw
12	WCI G169332-01
12	WCI G169332-09
12	WCI G169332-08
12	WCI G169332-10
12	WCI G169332-11
13	PANEL, OUTER, ALMOND
13	WCI G178690-10
13	PANEL, OUTER, WHEAT
13	PANEL, OUTER, AVOCADO
13	PANEL, OUTER, WHITE
14A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
14	NAMEPLATE
15	LABEL, UPPER
16	LABEL-LOWER
17	WCI G162977-10
17	240494001 Frigidaire Refrigerator Plug Button
17	WCI G162977-09
17	WCI G162977-11
17	WCI G162977-08
18	REFRIGERATOR DOOR-AVOCADO
18	REFRIGERATOR DOOR-ALMOND
18	REFRIGERATOR DOOR-COFFEE
18	REFRIGERATOR DOOR-WHEAT
18A	BEARING, HINGE (3)
18	REFRIGERATOR DOOR-WHITE
19	STOP, DOOR. PC & FC (2)
20	WCI G179801
21	WCI G170495-24
22	WCI G187329-01
23	WCI G179800
24	WCI G185566
24A	WCI G89643
25	TRAY, UTILITY
26	TRIM-REFRIG DOOR
