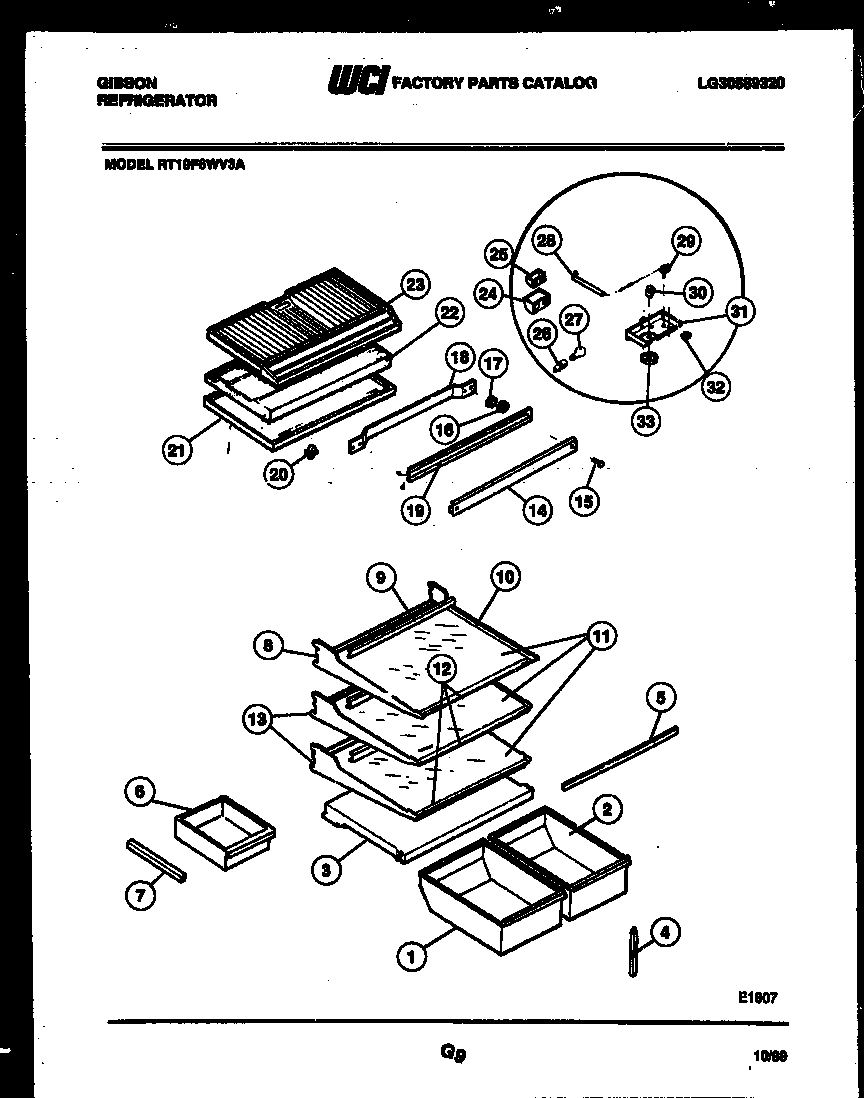

RT19F6WV3A 04 – SHELVES AND SUPPORTS

Products

PositionProduct
*16266HARNESS, WIRING
1PAN-CRISPER-LS
2PAN-CRISPER-RS
3COVER, CRISPER
4SUPPORT-ADJ CRISPER COVER
5GASKET, COVER
6WCI G187181-01
7HANGER-LH (NON-ILLUSTRATED)
7AWCI 3018890
7BSCREW-HANGER (2) (NON-ILLUSTRATED)
8FRAME-FULL SHELF, CANTILEVER, (2)
9TRIM-FULL SHELF, REAR, (3)
10RAIL-GLASS SUPT (2) (NON-ILLUSTRATED)
10AWCI 3200321
11WCI 5303206856
12WCI 5303206857
13FRAME-MEAT KPR SHLF, CANTILEVER
14WCI 3200366
14MULLION-AVOC
14WCI 3200368
14WCI 3200369
14WCI 3200370
15SCREW, BRACKET MOUNTING (4)
16WASHER (2)
17SPACER (NON-ILLUSTRATED)
18STRAP, MULLION MOUNTING
19WCI 3018916
205309918806 Frigidaire Refrigerator Light Switch Door
21ASCREW (5)
21KNOB, TEMP CONTROL
22DIVIDER-FOAM
23BOTTOM, FC
24WCI G162178
25WCI 3204206
26218906802 Frigidaire Light Lamp Socket
27316538904 Frigidaire Oven Lamp Light
28WCI 3018891
29CONTROL-TEMPERATURE
30215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
31WCI 5303206574
32SWITCH-ROCKER
33KNOB-TEMP CONTROL
