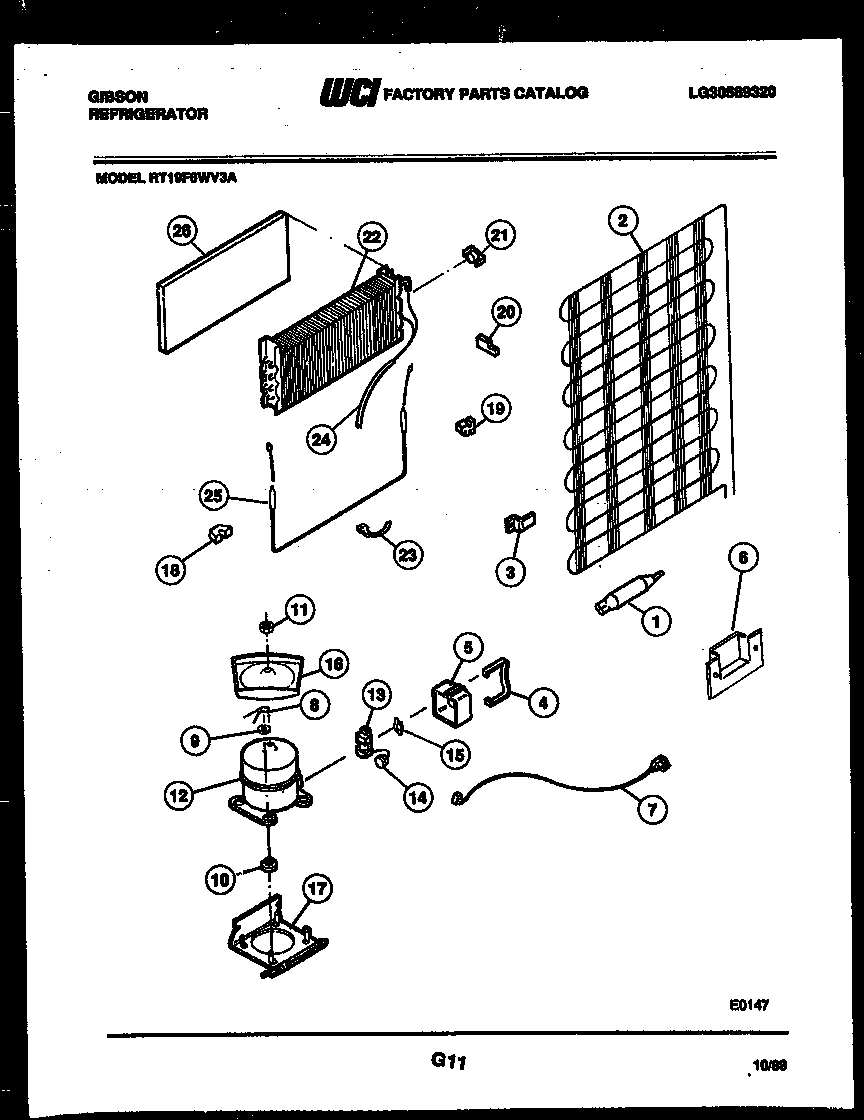

RT19F6WV3A 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*162645303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*16264HARNESS-COMPRESSOR
*16264HOT TUBE REPAIR KIT
*162655303001199 Frigidaire Refrigerator Wiring Harness Clamp
*16266SLEEVE-CONNECTOR
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G163133
3B5308000039 Frigidaire Refrigerator Screw
3AWASHER
3BRACKET-CONDENSER MOUNTING (4)
45303006412 Frigidaire Refrigerator Cover Mounting Strap
6WCI G183584
7CORD, SERVICE
8CLIP, COMPRESSOR MOUNTING (4)
9WASHER, COMPRESSOR MOUNTING (4)
10218513300 Frigidaire Refrigerator Compressor Mount Grommet
11NUT, LOCK
12COMPRESSOR-SERVICE
13WCI 3007171
14WCI 3007416
15WCI 3017762
16DEFROST PAN & NUT
17PLATE
18BLOCK, LEFT SIDE
19BLOCK, EVAPORATOR, RH
20PLUG, EVAPORATOR INSULATION BLOCK, R H
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22EVAPORATOR
235308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
24B5304455651 Frigidaire Refrigerator Screw
24HEAT EXCHANGER
24A240396801 Frigidaire Refrigerator Tube Clamp
255317842502 Frigidaire Defrost Heater
26INSULATOR
