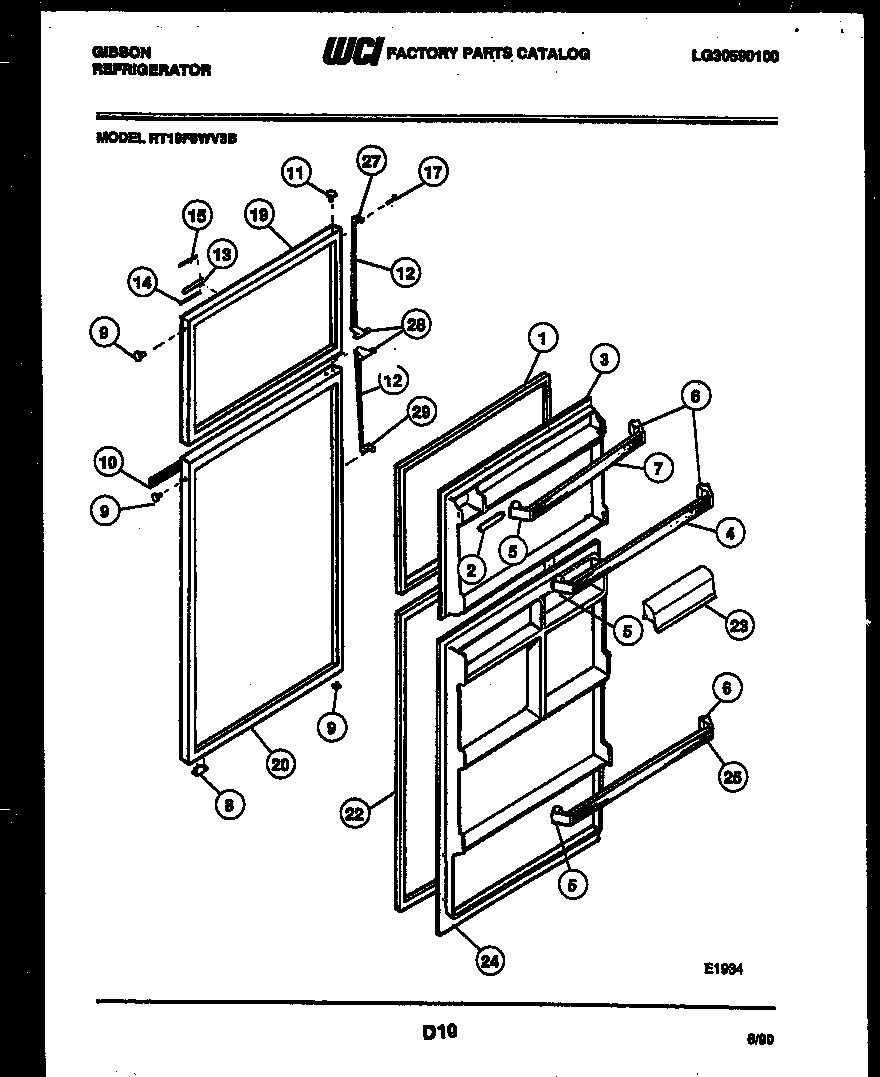

RT19F6WV3B 02 – DOOR PARTS

Written by

Products

Position	Product
*32342	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001486
2	DISPENSER-JUICE CAN
3	WCI 3203048
4	RACK, DOOR (2)
5	SUPPORT RH (4)
6	WCI 5317828702
7	WCI G161019-61
8	WCI 5308000255
9	BUTTON-AVOCADO
9	BUTTON-WHEAT
9	BUTTON PLUG-COFFEE
9	240494001 Frigidaire Refrigerator Plug Button
9	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
10	TRIM-REFRIG DOOR
11	BUTTON-WHEAT
11	BUTTON-AVOCADO
11	BUTTON PLUG-COFFEE
11	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
12	WCI 3200545
13A	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13	NAMEPLATE
14	LABEL-LOWER
15	LABEL UPPER
17	WCI 5308011745
19	PANEL-FRZR-OUTER-COFFEE
19	PANEL-FRZR-OUTER-ALMOND
19	PANEL-FRZR-OUTER-WHITE
19	PANEL-FRZR-OUTER-WHEAT
19	PANEL-FRZR-OUTER-AVOCADO
20A	BEARING-HINGE
20	WCI 5317869411
20	PANEL-OUTER-COFFEE
20	WCI 5317869409
20	PANEL-OUTER-WHITE
20	WCI 5317869408
22	GASKET-REFRIG DOOR
23	DOOR, DAIRY (2)
24A	218843801 Frigidaire Refrigerator Screw
24	WCI G187452-02
25	WCI G161019-65
27	WCI 5303001297
28	WCI 5303001296
29	BOTTOM HANDLE END CAP
