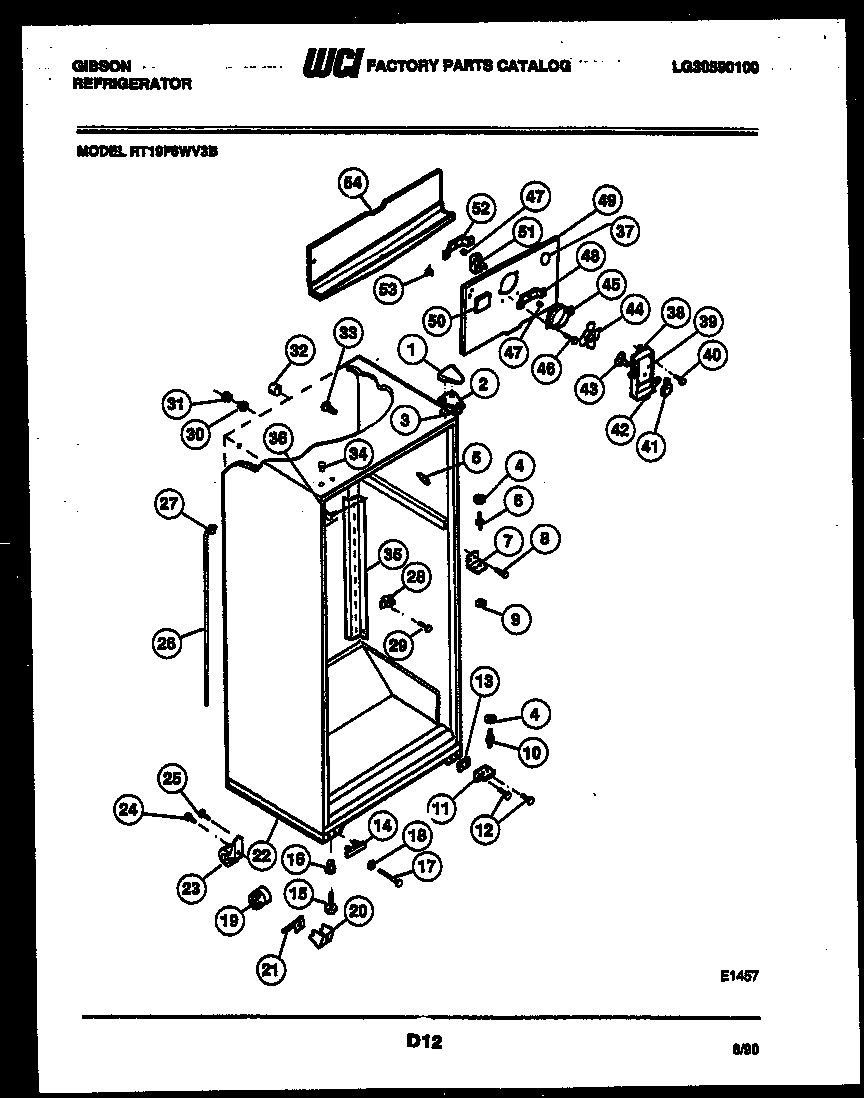

RT19F6WV3B 03 – CABINET PARTS

Products

Position	Product
*32360	PLUG, BUTTON, CABINET LINER (NI)
*32360	TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
1	COVER - HINGE-WHEAT
1	COVER-HINGE-AVOCADO
1	COVER-UPPER HINGE, ALMOND
1	WCI 5303001666
1	COVER-UPPER HINGE, WHITE
2	BRACKET-UPPER HINGE
3	SHIM - UPPER HINGE
4	WASHER, .34 X .62 X .05, NYLON
5	TRIM-CABINET CORNER, ALMOND
5	TRIM-CABINET CORNER, WHITE
5	WCI 5303202338
5	CORNER
5	WCI 5303202339
6	WCI 5308000184
7	BRACKET-CTR HINGE
8	WCI 5308012258
8A	WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
8B	SPACER-MULLION MTG, STEEL
9	WASHER, .28 X .62 X .19, NYLON
10	5303001321 Frigidaire Refrigerator Lower Hinge Pin
11	HINGE BRACKET - BOTTOM
12	241710601 Frigidaire Refrigerator Screw
13	SHIM-LOWER HINGE
14	COVER-HOLE, LOWER HINGE
15	SCREW-LEVELING (4)
16	WCI 5308003584
17	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
18	WCI 5308011326
19	WCI 5308009760
20	SUPPORT, BASE (2)
21	WCI 5308009790
22	CABINET BASE
23	WCI 5308009773
24	BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
26	WCI 5303210377
26A	5304455651 Frigidaire Refrigerator Screw
27	WCI 5303207353
28	WCI 5308000056
29	WCI 5303001361
30	WCI 5303001286
31	WCI 5303001287
32	TUBE-RUBBER
33	SUPPORT-COIL COVER
34	PLUG, COFFEE
34	PLUG-BUTTON, ALMOND, UPR HINGE HOLES
34	PLUG-BUTTON, WHITE
34	BUTTON-HINGE-AVOCADO
34	BUTTON-HINGE-WHEAT
35	CHANNEL, RH & LH
36	5304455852 Frigidaire Refrigerator Screw
37	5303208309 Frigidaire Refrigerator Plug Hole
38	WCI 5316306176
39	WCI 5300186232
41	WCI 5308011763
42	Nut,push-on
43	DAMPER-FAN COVER
44	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
45	RING-FAN ORIFICE
46	218843801 Frigidaire Refrigerator Screw
47	G187559 Frigidaire Refrigerator Bushing
48	WCI 5303001226
49B	5304455650 Frigidaire Refrigerator Screw
49A	NUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
49	WCI 5308009771
50	BUTTON - DECORATIVE PLUG
51	5300158289 Frigidaire Evaporator Fan Motor
52	WCI 5303001227
53	WCI 5308000107
54	WCI 5303001470
