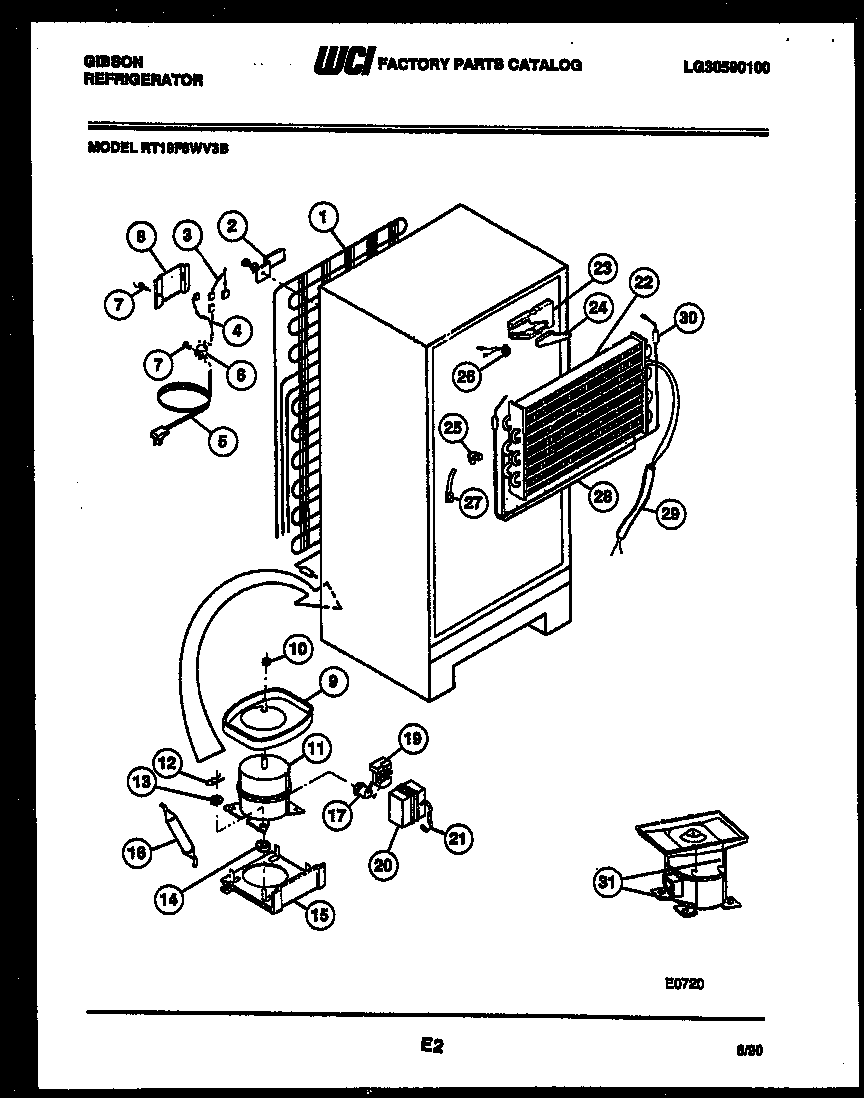

RT19F6WV3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

RT19F6WV3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

RT19F6WV3B 05 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*32383HOT TUBE REPAIR KIT-SERVICE
1WCI 5300163133
2BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET-MTG (4)
2A5308000039 Frigidaire Refrigerator Screw
3WCI 3018900
4WIRING HARNESS, COMPRESSOR,
5CORD-ELECTRIC POWER
65303001199 Frigidaire Refrigerator Wiring Harness Clamp
75304455651 Frigidaire Refrigerator Screw
8WCI 5303001197
9A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
9PAN-DEFROST DRAIN, ORIG/SVCE COMPR
10Nut,lock `1/4-20 ,drain pan mtg
11COMPRESSOR W/ ELECTRICALS-SERVICE
12CLIP – COMPRESSOR MTG
13WASHER-COMPR MTG
14218513300 Frigidaire Refrigerator Compressor Mount Grommet
15WCI 5308013663
165303305677 Frigidaire Replacement Filter Dryer Filters
19216594300 Frigidaire Refrigerator Starter
215303006412 Frigidaire Refrigerator Cover Mounting Strap
22WCI 5300162506
23INSULATION BLOCK, RH
24INSULATION PLUG, RH
25INSULATION BLOCK, LH
265303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
275308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
28INSULATOR-EVAP, PLASTIC
29WCI 5308000728
29A5308000133 Frigidaire Refrigerator Clamp
305317842502 Frigidaire Defrost Heater
31PAN RETAINER KIT, SERVICE
