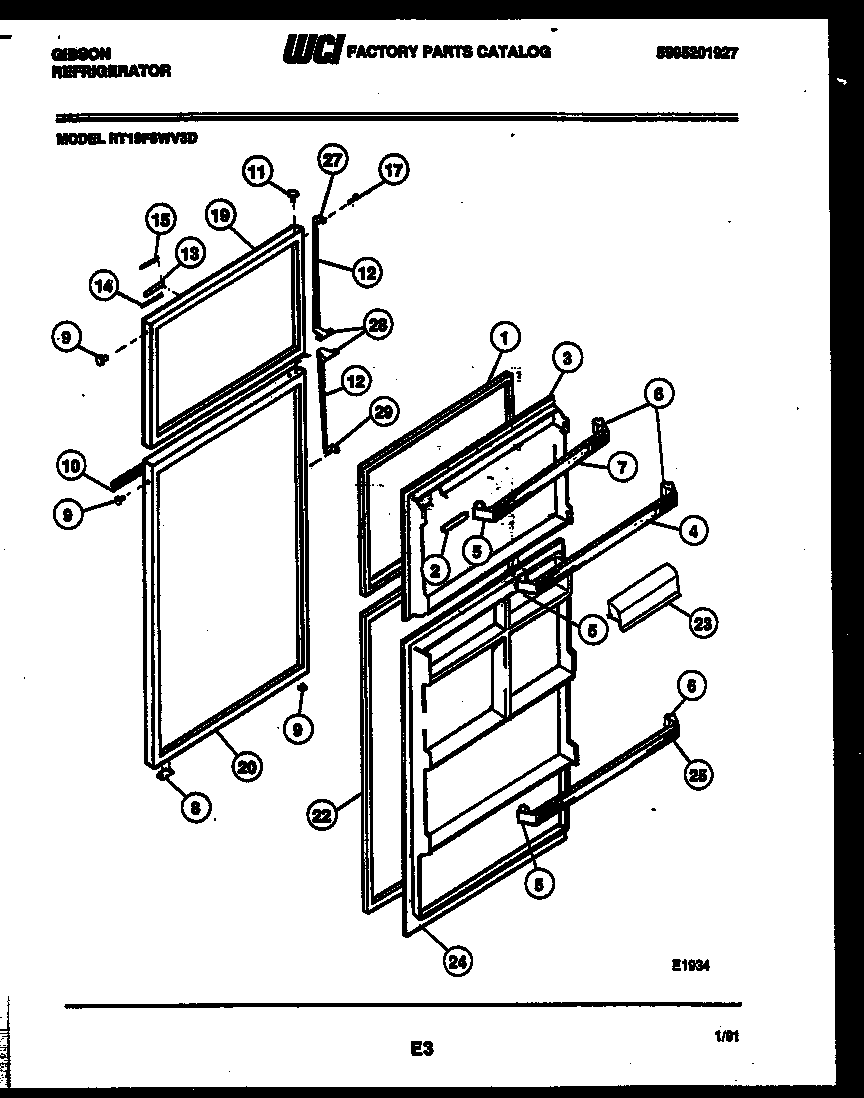

RT19F6WV3D 02 – DOOR PARTS

RT19F6WV3D 02 – DOOR PARTS

Written by

in

RT19F6WV3D 02 – DOOR PARTS

Products

PositionProduct
*35449INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001486
2DISPENSER-JUICE CAN
3WCI 3203048
4RACK, DOOR (2)
5SUPPORT RH (4)
6WCI 5317828702
7WCI G161019-61
8ADOOR STOP, REFR SECTION
8WCI 5308000255
9BUTTON-WHEAT
9BUTTON-AVOCADO
9240494001 Frigidaire Refrigerator Plug Button
9PLUG-BUTTON, ALMOND, HANDLE/DR STOP
9BUTTON PLUG-COFFEE
10TRIM-REFRIG DOOR
11WCI 58303001657
11PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11BUTTON-WHEAT
11PLUG-BUTTON, WHITE, HINGE BRG HOLE
11BUTTON-AVOCADO
12WCI 5317049526
13ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13NAMEPLATE
14LABEL-LOWER
15LABEL UPPER
17WCI 5308011745
19PANEL-FRZR-OUTER-WHITE
19PANEL-FRZR-OUTER-ALMOND
19PANEL-FRZR-OUTER-COFFEE
19PANEL-FRZR-OUTER-AVOCADO
19PANEL-FRZR-OUTER-WHEAT
20ABEARING-HINGE
20WCI 5317869411
20WCI 5317869408
20PANEL-OUTER-COFFEE
20PANEL-OUTER-WHITE
20WCI 5317869409
22GASKET-REFRIG DOOR
23DOOR, DAIRY (2)
24A5304455651 Frigidaire Refrigerator Screw
24WCI G187452-02
25WCI G161019-65
27WCI 5303001297
28WCI 5303001296
29BOTTOM HANDLE END CAP
