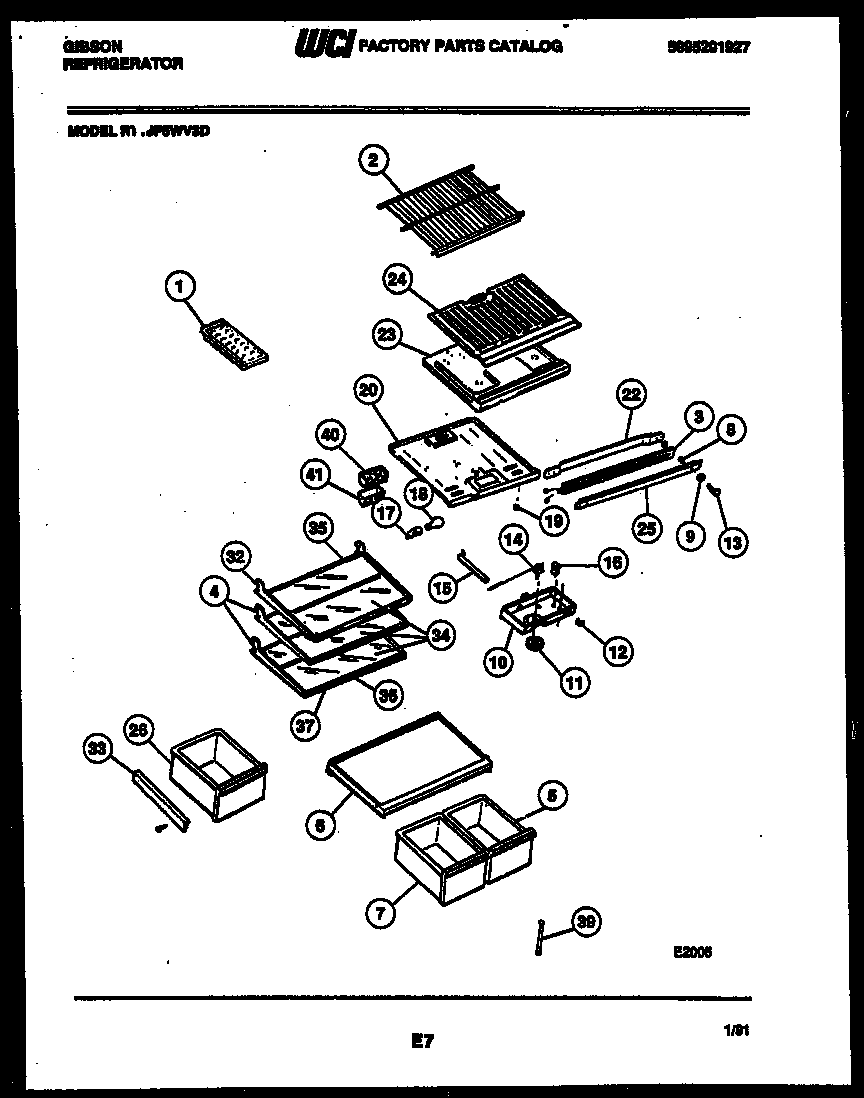

RT19F6WV3D 04 – SHELVES AND SUPPORTS

RT19F6WV3D 04 – SHELVES AND SUPPORTS

Written by

in

RT19F6WV3D 04 – SHELVES AND SUPPORTS

Products

PositionProduct
1215667501 Frigidaire Refrigerator Ice Tray Primary
2SHELF
2AEND CAP-SHELF,PROTECTOR
2C5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
2B5304509705 Frigidaire Refrigerator Grommet
3WCI 5308002662
4FRAME-FULL SHELF
5WCI 5317663928
6WCI 5303001493
6AGASKET-CRISPER COVER (NON-ILLUSTRATED)
7PAN-CRISPER-LS
8SPACER-MULLION MTG, STEEL
9WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
10A5304455650 Frigidaire Refrigerator Screw
10WCI 5303206574
11WCI 5303201777
12SWITCH-ROCKER
13WCI 5308012258
14AWCI 5303001260
14WCI 5303018894
15RAIL-OFFSET LH
16A5304455649 Frigidaire Refrigerator Screw
16215846604 Frigidaire Refrigerator Defrost Timer
17218906802 Frigidaire Light Lamp Socket
18316538904 Frigidaire Oven Lamp Light
195309918806 Frigidaire Refrigerator Light Switch Door
20AWCI 5303001380
20TOP – REFRIGERATOR
22WCI 5308010008
23DIVIDER-FOAM
23B3205266 Frigidaire Refrigerator Edge Protector
23AWCI 3018900
24WCI 5303001505
25WCI 5303200368
25WCI 5303200367
25WCI 5303200369
25WCI 5303200370
25WCI 5303200366
26WCI G1871814-01
32WCI 5303210990
33HANGER-PAN LH
33AHANGER-PAN RH (NON-ILLUSTRATED)
33BWCI 08014528
34WCI 5303210989
35WCI 5303210991
36WCI 53032092574
37WCI 5303210988
39SUPPORT-CRISPER CVR, ADJUSTABLE
40WCI 3204206
41COVER – AIR DEFLECTOR
