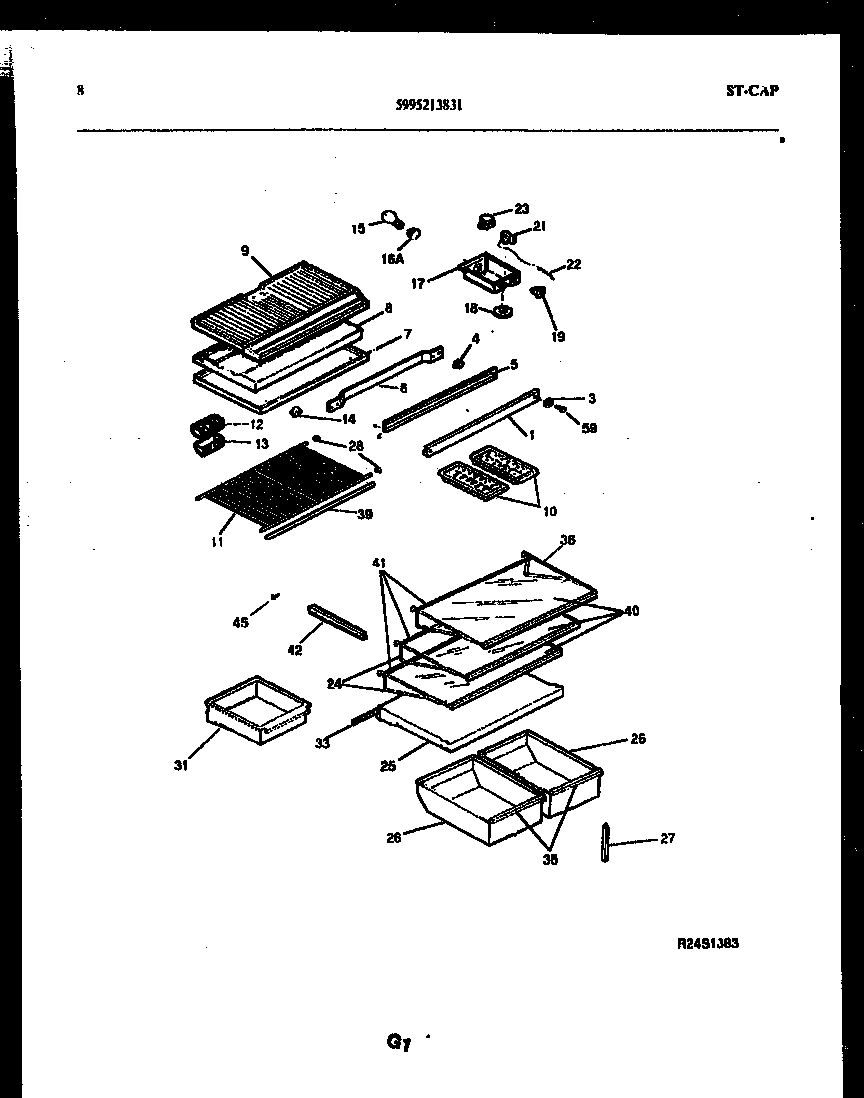

RT19F7DX3B 05 – SHELVES AND SUPPORTS

RT19F7DX3B 05 – SHELVES AND SUPPORTS

Written by

in

RT19F7DX3B 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*45639CLIP-CANTILEVER SHLF
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8DIVIDER-FOAM
9A3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5317705904
12DEFLECTRO, AIR, W/SEAL
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17A5304455650 Frigidaire Refrigerator Screw
17WCI 5303272507
18WCI 5303209251
19WCI 5303207249
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24FRAME-FULL SHELF
25COVER, CRISPER PAN
26WCI 5303275274
26WCI 5303274981
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
31WCI 5303275012
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
35WCI 5303274986
35WCI 5303274987
36WCI 5303210990
39TRIM-FRZR SHELF
40AWCI 5303209274
40GLASS-SHELF, FULL SHELF, (3)
41ALOCK-SHELF TRIM, REAR
41TRIM-FULL SHELF, REAR
42HANGER-PAN LH
42AHANGER-PAN RH (NON-ILLUSTRATED)
45WCI 08014528
59WCI 5308012258
