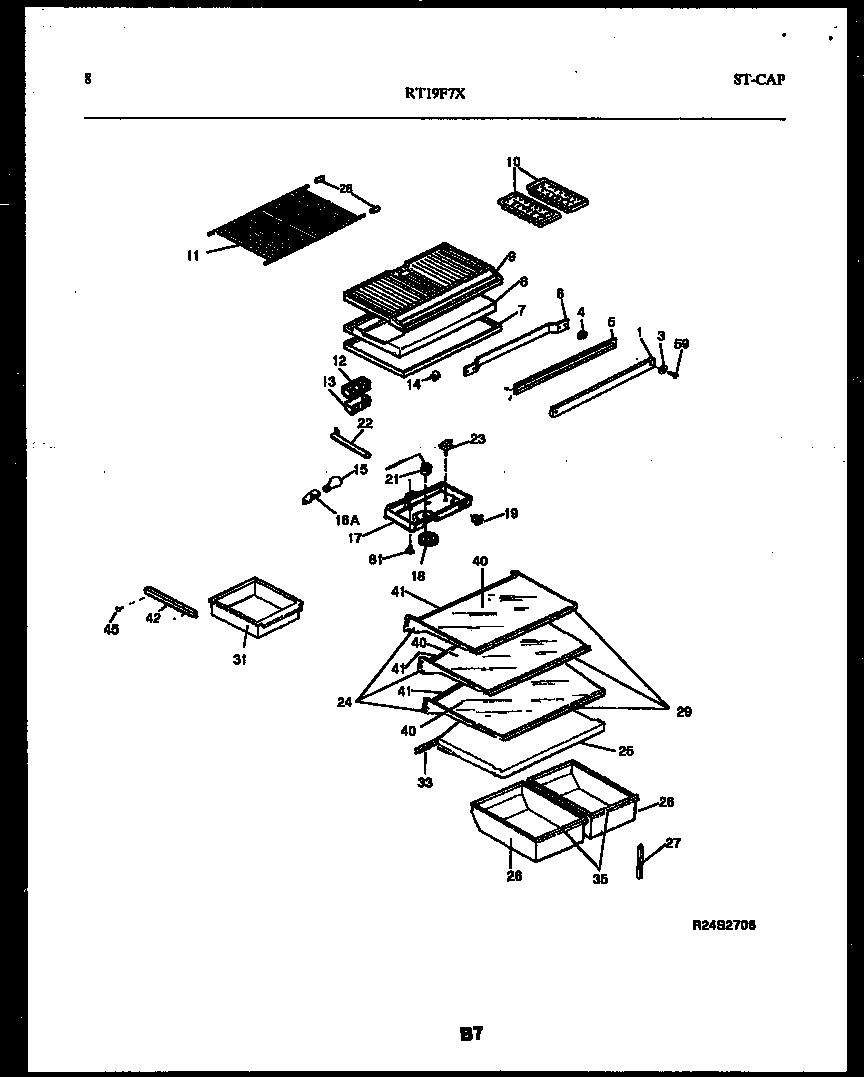

RT19F7DX3C 05 – SHELVES AND SUPPORTS

RT19F7DX3C 05 – SHELVES AND SUPPORTS

Written by

in

RT19F7DX3C 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8DIVIDER-FOAM
8A3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5317705904
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
17AWCI 08016567
18WCI 5303209251
19WCI 5303207249
21AWCI 5303001260
21WCI 5303018894
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5303210990
24FRAME-FULL SHELF
25COVER, CRISPER PAN
26WCI 5303274981
26WCI 5303275274
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29TRIM-FRZR SHELF
29AWCI 5303209274
31WCI 5303275012
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
35WCI 5303274987
35WCI 5303274986
40GLASS-SHELF, FULL SHELF, (3)
41ALOCK-SHELF TRIM, REAR
41TRIM-FULL SHELF, REAR
42AHANGER-PAN RH (NON-ILLUSTRATED)
42HANGER-PAN LH
45WCI 08014528
59WCI 5308012258
815304455650 Frigidaire Refrigerator Screw
54588CLIP-CANTILEVER SHLF
