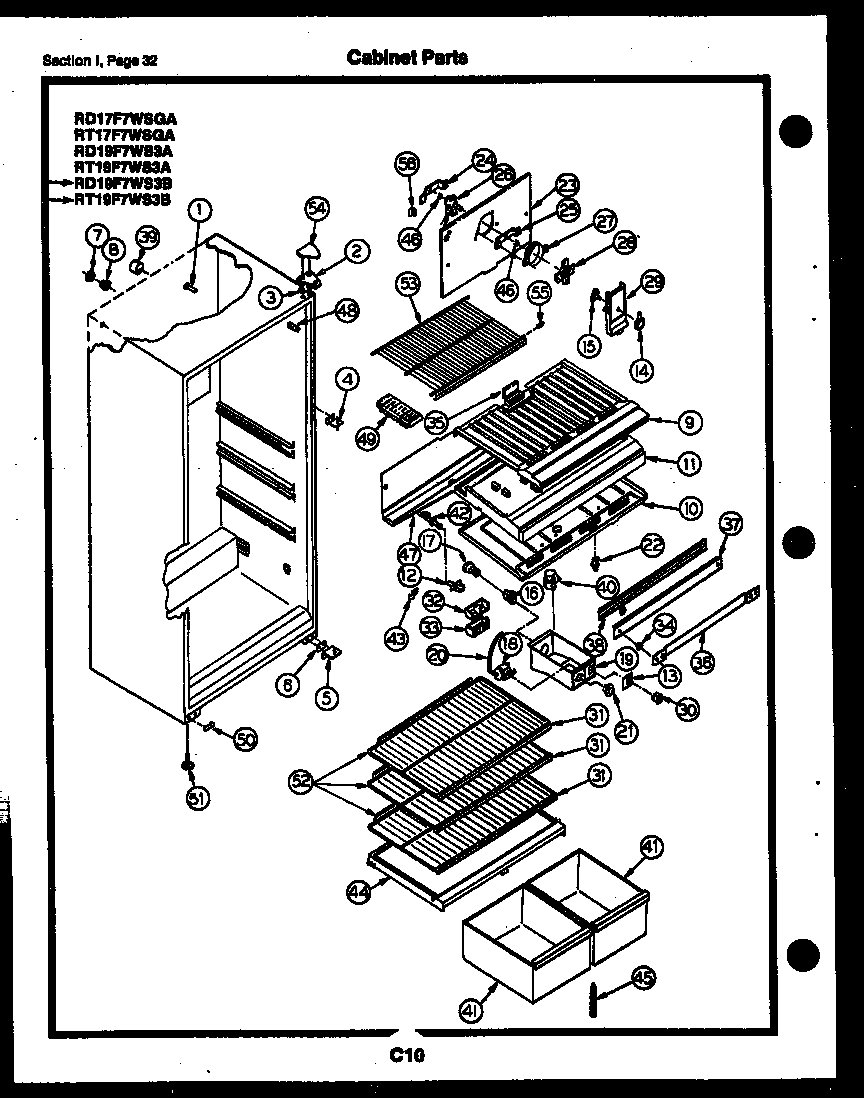

RT19F7WS3A 16 – CABINET PARTS

Products

PositionProduct
1WCI G163669
2DWASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET)
2BRACKET, TOP HINGE
2CWCI G174747–01
2A241710601 Frigidaire Refrigerator Screw
2BWCI G103903
3WCI G183861
4BWCI G142220
4BRACKET, HINGE CENTER
4ASCREW, BRACKET MOUNTING (4)
5CTAPPING PLATE (2)
5BRACKET, HINGE, LOWER
5A5303001321 Frigidaire Refrigerator Lower Hinge Pin
6SHIM, HINGE
7WCI G174733
8WCI G174734
9WCI G490022-02
10ASCREW (5)
10TOP, PC
11DIVIDER, CENTER
12APIN PUSH SPOUT (2)
12SPOUT DRAIN TUBE
13LABEL – CONTROL BOX
14WCI G162747-06
15ANUT, DAMPER MOUNTING
15DAMPER FAN COVER
16SOCKET LIGHT
17316538904 Frigidaire Oven Lamp Light
18COLD CONTROL
18AWCI G107080
19WCI G174765-03
20TUBE
21KNOB-TEMP CONTROL
225309918806 Frigidaire Refrigerator Light Switch Door
23WCI G177529
24BRACKET, REAR MOTOR MOUNTING
25A5304455650 Frigidaire Refrigerator Screw
25BRACKET, FRONT MOTOR MOUNTING
265300158289 Frigidaire Evaporator Fan Motor
27ANUT, ORIFICE (2)
27RING, FAN ORIFICE
285308000010 Frigidaire Refrigerator Evaporator Fan Blade
29WCI G163061-76
30SWITCH – SLIDE (NON-ILLUSTRATED)
31ACLIP – TRIM (12)
31WCI G141727-44
32DEFLECTOR AIR
33WCI G162178
34SPACER, MULLION (2)
34AWASHER (2)
35PAD, FOAM (2)
36STRAP, MULLION MOUNTING
37MULLION-WHTE
38WCI G177254
39TUBE, INSULATION (2)
40215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
40A5304455649 Frigidaire Refrigerator Screw
41APAN-SMALL LS
41PAN-LARGE RS
42TUBE, DRAIN
42ARING, SEAL (NON-ILLUSTRATED)
43WCI G101747
44COVER, CRISPER
44AGASKET, COVER
45SUPPORT, CRISPER COVER
46G187559 Frigidaire Refrigerator Bushing
47WCI G177534
48WCI G179684-01
49215667501 Frigidaire Refrigerator Ice Tray Primary
50WCI G166912
51ANUT, ANCHOR (2)
51LEG-LEVELING (2)
52WCI G179139-03
53WCI G184572-04
54COVER HINGE, WHITE
55WCI G166495-01
56A5304455651 Frigidaire Refrigerator Screw
56WCI G164571
21530HARNESS, WIRING
21531BUTTON-DECORATIVE
21533WCI H162892-01
21535WCI G162659 (3)
21537BOOK, INSTRUCTION
21538WCI G186007
21541WCI G183100-54
21543WCI G490004-02
