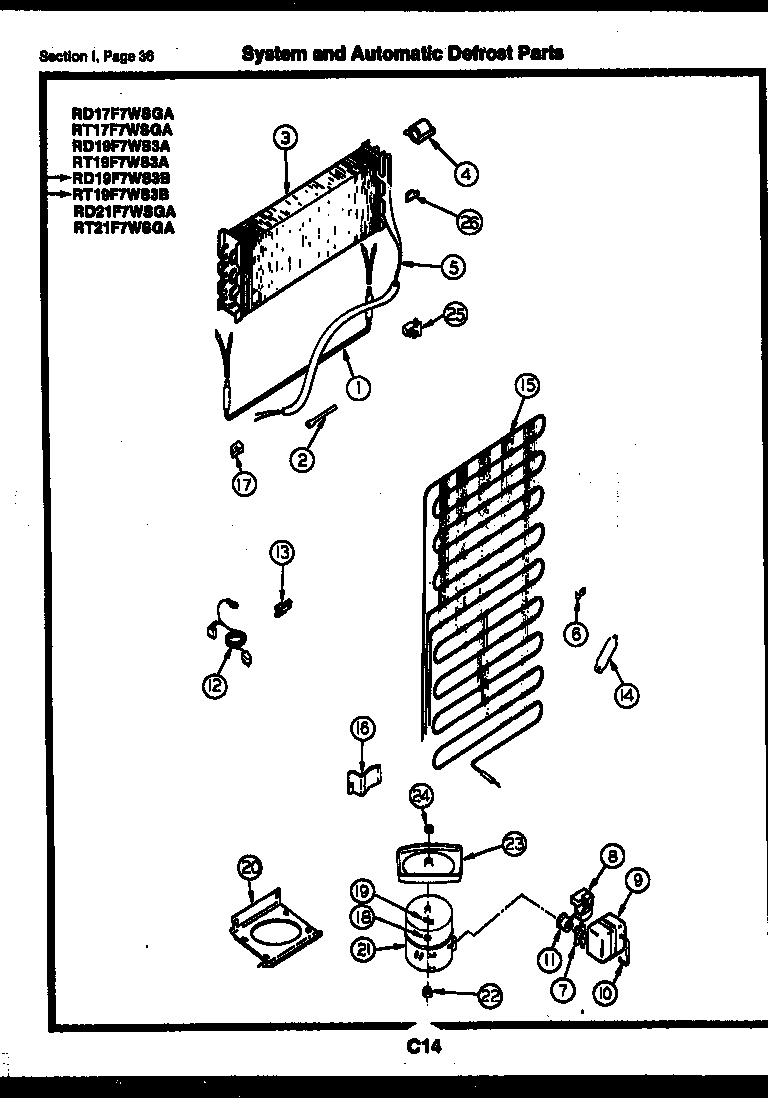

RT19F7WS3A 18 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

Products

Position	Product
*21606	WCI G179024
1	5317842502 Frigidaire Defrost Heater
2	5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
3	EVAPORATOR
4	5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
5	HEAT EXCHANGER
6	WCI G101747
6A	WCI G160578 (6)
7	CLIP, OVERLOAD
8	WCI G150618-32
10	5303006412 Frigidaire Refrigerator Cover Mounting Strap
11	OVERLOAD
12	CORD, SERVICE
13	5303001199 Frigidaire Refrigerator Wiring Harness Clamp
14	5303305677 Frigidaire Replacement Filter Dryer Filters
14A	5304455651 Frigidaire Refrigerator Screw
14B	WASHER
15	WCI G162739
16	BRACKET-CONDENSER MOUNTING (4)
17	BLOCK, EVAPORATOR, LH
18	WASHER, COMPRESSOR MOUNTING (4)
19	CLIP, COMPRESSOR MOUNTING (4)
20	PLATE, COMPRESSOR MOUNTING
21	COMPRESSOR
22	218513300 Frigidaire Refrigerator Compressor Mount Grommet
23	DEFROST PAN & NUT
24	NUT, LOCK
25	BLOCK, EVAPORATOR, RH
26	PLUG, EVAPORATOR INSULATION BLOCK, R H
