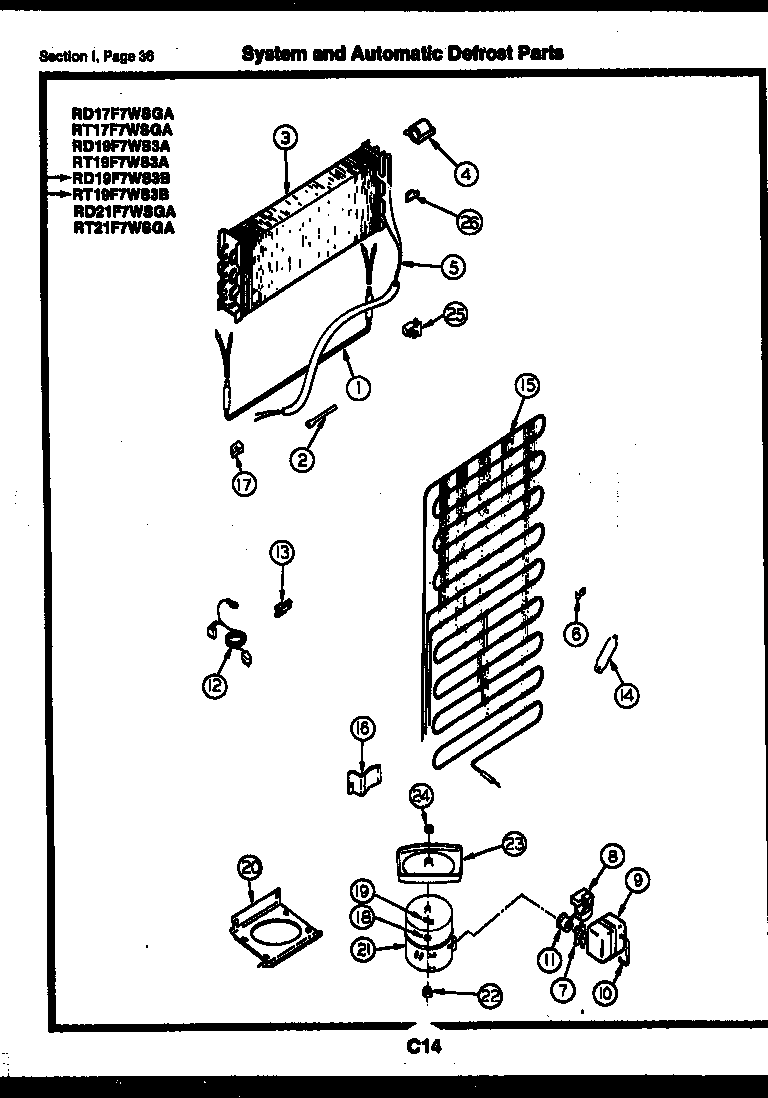

RT19F7WS3B 18 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T10:20:50+00:00RT19F7WS3B 18 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| *21606 | WCI G179024 |
| 1 | 5317842502 Frigidaire Defrost Heater |
| 2 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 3 | EVAPORATOR |
| 4 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 5 | HEAT EXCHANGER |
| 6 | WCI G101747 |
| 6A | WCI G160578 (6) |
| 8 | WCI G182225-12 |
| 9 | WCI G185792 |
| 10 | STRAP-COVER |
| 11 | WCI G185797 |
| 12 | CORD, SERVICE |
| 13 | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 14 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 14A | 5304455651 Frigidaire Refrigerator Screw |
| 14B | WASHER |
| 15 | WCI G162739 |
| 16 | BRACKET-CONDENSER MOUNTING (4) |
| 17 | BLOCK, EVAPORATOR, LH |
| 18 | WASHER, COMPRESSOR MOUNTING (4) |
| 19 | CLIP, COMPRESSOR MOUNTING (4) |
| 20 | PLATE, COMPRESSOR MOUNTING |
| 21 | COMPRESSOR |
| 22 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 23 | DEFROST PAN |
| 24 | NUT, LOCK |
| 25 | BLOCK, EVAPORATOR, RH |
| 26 | PLUG, EVAPORATOR INSULATION BLOCK, R H |
