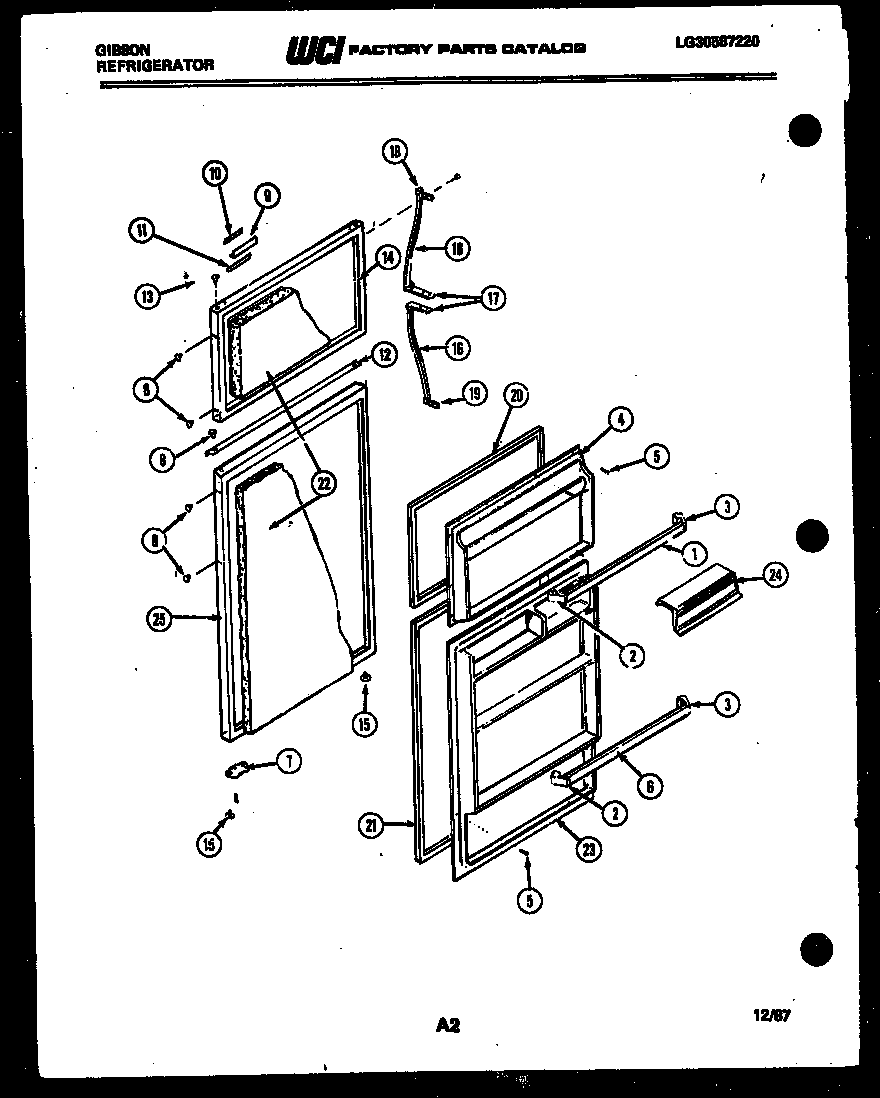

RT19F7WU3A 02 – DOOR PARTS

Products

Position	Product
1	WCI G162887-18
2	SUPPORT LS (4)
3	SUPPORT RS (4)
4	WCI G184903-01
5	218843801 Frigidaire Refrigerator Screw
6	WCI G162887-21
7A	STOP, DOOR. PC & FC (2)
8	240494001 Frigidaire Refrigerator Plug Button
8	WCI G162977-09
8	WCI G162977-10
8	WCI G162977-08
8	WCI G162977-11
9	NAMEPLATE
9A	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
10	LABEL, UPPER
11	LABEL, LOWER
12	TRIM-REFRIG DOOR
13	WCI G169332-11
13	WCI G169332-10
13	WCI G169332-09
13	WCI G169332-01
13	WCI G169332-08
14	PANEL, OUTER, ALMOND
14	WCI G178690-10
14	PANEL, OUTER, WHEAT
14	PANEL, OUTER, AVOCADO
14	PANEL, OUTER, WHITE
15	BEARING, HINGE (3)
16	WCI G170495-24
17	WCI G187329-01
18	WCI G179800
19	WCI G179801
19A	WCI G185566
20	GASKET
21	GASKET
22	WCI G89643
23	PANEL-INNER
24	DAIRY DOOR (2)
25	REFRIGERATOR DOOR-AVOCADO
25	REFRIGERATOR DOOR-ALMOND
25	REFRIGERATOR DOOR-WHEAT
25	REFRIGERATOR DOOR-WHITE
25	REFRIGERATOR DOOR-COFFEE
