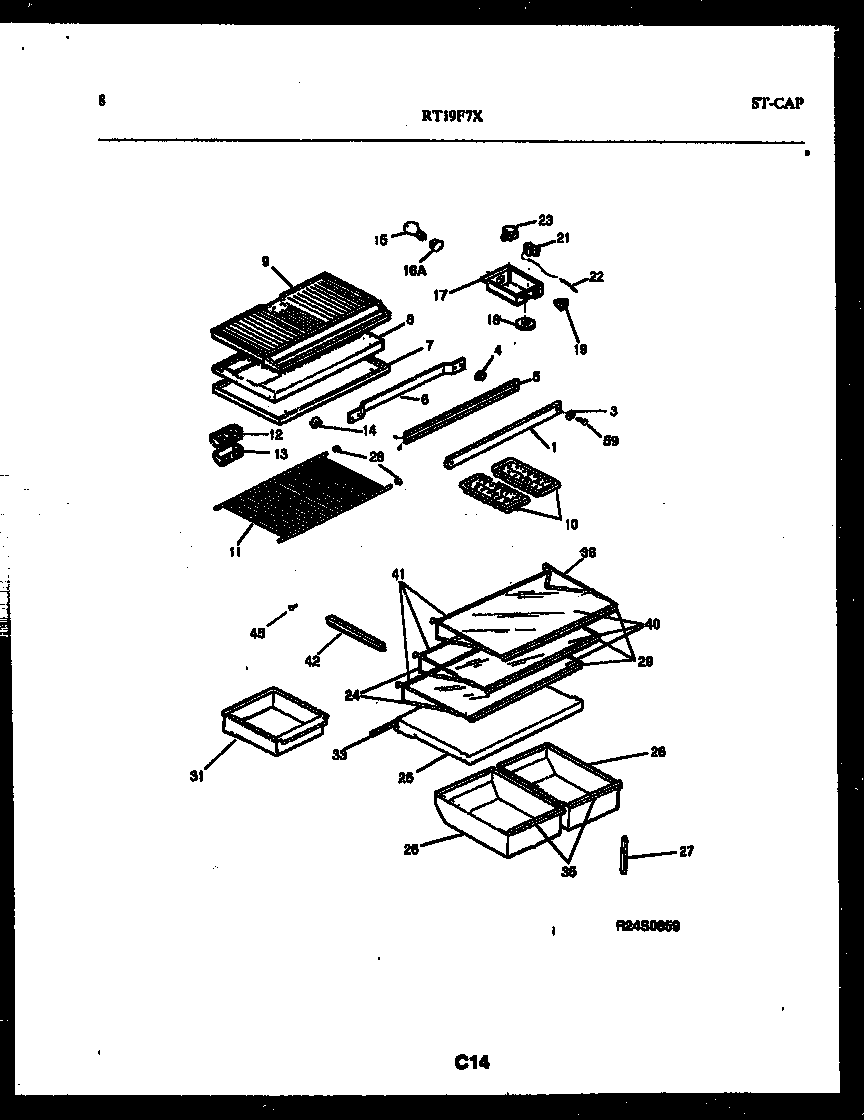

RT19F7WX3A 05 – SHELVES AND SUPPORTS

RT19F7WX3A 05 – SHELVES AND SUPPORTS

Written by

in

RT19F7WX3A 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 5303200366
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7AWCI 5303001380
7TOP – REFRIGERATOR
8AWCI 3018900
8DIVIDER-FOAM
9A3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5317705904
12DEFLECTRO, AIR, W/SEAL
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
17A5304455650 Frigidaire Refrigerator Screw
18WCI 5303209251
19WCI 5303272508
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24FRAME-FULL SHELF
24ACLIP-CANTILEVER SHLF
25COVER, CRISPER PAN
26WCI 5303274981
26WCI 5303275274
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29TRIM-FRZR SHELF
31WCI 5303275012
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
35WCI 5303274987
35WCI 5303274986
36WCI 5303210990
40GLASS-SHELF, FULL SHELF, (3)
40AWCI 5303209274
41TRIM-FULL SHELF, REAR
41ALOCK-SHELF TRIM, REAR
42AHANGER-PAN RH (NON-ILLUSTRATED)
42HANGER-PAN LH
45WCI 08014528
59WCI 5308012258
