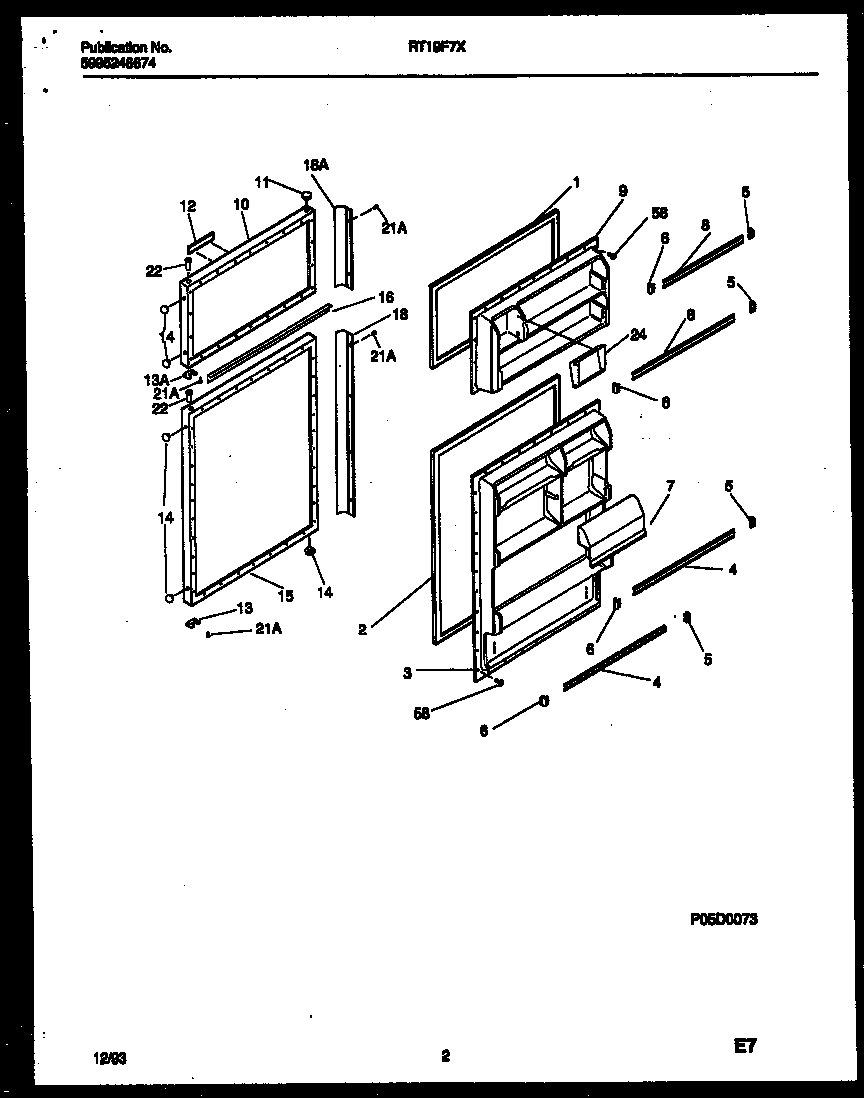

RT19F7WX3D 02 – DOOR PARTS

Products

Position	Product
*61625	INSULATION-BULK (NON-ILLUSTRATED)
1	WCI 5303001486
2	GASKET-REFRIG DOOR
3	WCI 5303275026
4	WCI 5303275027
5	WCI 5303274990
6	WCI 5303274989
7	DOOR-DAIRY
8	TRIM-HALF, SNAP-ON, (2)
9	WCI 5303275054
10	PLUG-BUTTON, WHITE, HINGE BRG HOLE
11	WCI 5303916954
12	NAMEPLATE ASSY
13A	WCI 5308000255
13	DOOR STOP, REFR SECTION
14	240494001 Frigidaire Refrigerator Plug Button
15	PANEL-REFR DOOR, WHITE
16	WCI 5318755102
18	WCI 5303281406
18A	WCI 5303281405
21A	WCI 5308011745
22	BEARING-HINGE
22	BEARING-HINGE
24	WCI 5303275052
58	5304455651 Frigidaire Refrigerator Screw
