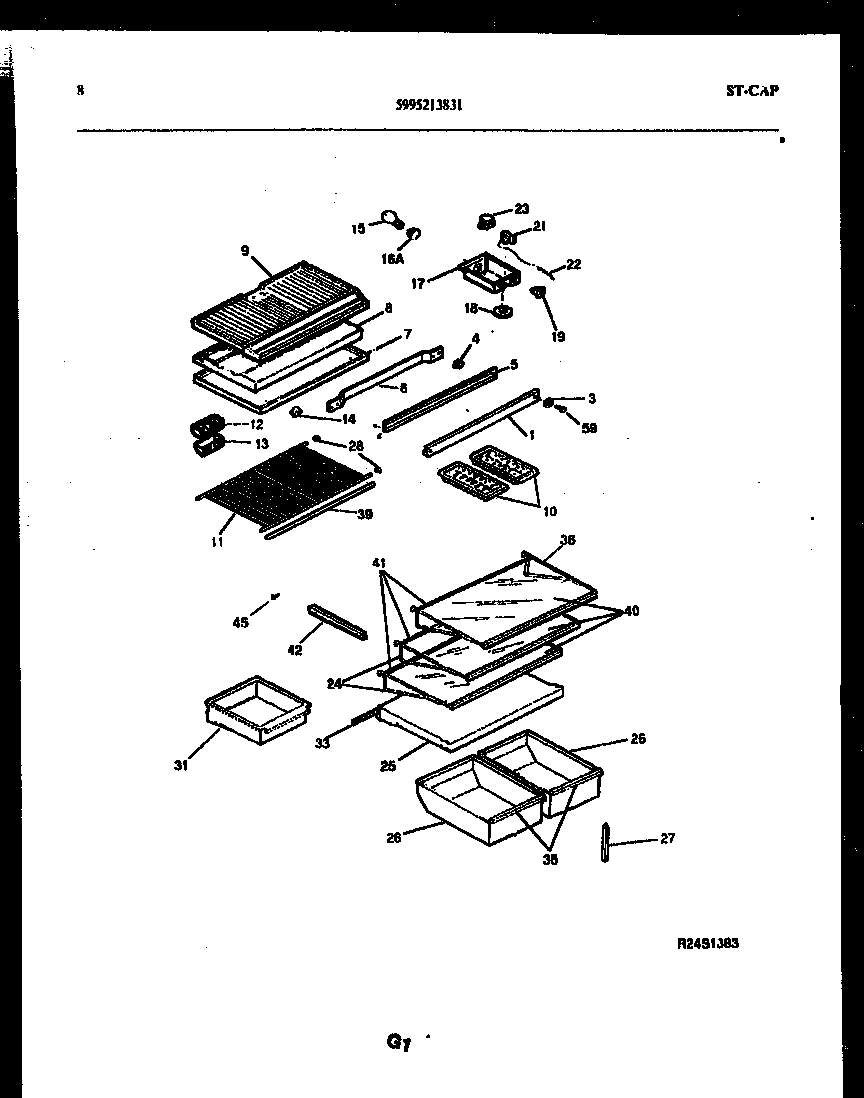

RT19F7YX3B 05 – SHELVES AND SUPPORTSadmin2025-04-26T10:24:08+00:00RT19F7YX3B 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| *45639 | CLIP-CANTILEVER SHLF |
| 1 | WCI 5303200368 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | SPACER-MULLION MTG, STEEL |
| 5 | WCI 5303210351 |
| 6 | WCI 5308010008 |
| 7 | TOP - REFRIGERATOR |
| 7A | WCI 5303001380 |
| 8 | DIVIDER-FOAM |
| 9A | 3205266 Frigidaire Refrigerator Edge Protector |
| 9 | WCI 5303211427 |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | WCI 5317705904 |
| 12 | DEFLECTRO, AIR, W/SEAL |
| 12B | EXTENSION, AIR DEFLECTOR, WITH INSULATION |
| 13 | WCI 5303001448 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16A | 218906802 Frigidaire Light Lamp Socket |
| 17 | WCI 5303272507 |
| 17A | 5304455650 Frigidaire Refrigerator Screw |
| 18 | WCI 5303209251 |
| 19 | WCI 5303207249 |
| 21 | WCI 5303018894 |
| 21A | WCI 5303001260 |
| 22 | WCI 3018891 |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 24 | FRAME-FULL SHELF |
| 25 | COVER, CRISPER PAN |
| 26 | WCI 5303275274 |
| 26 | WCI 5303274981 |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 31 | WCI 5303275012 |
| 33 | GASKET-CRISPER COVER (NON-ILLUSTRATED) |
| 35 | WCI 5303274986 |
| 35 | WCI 5303274987 |
| 36 | WCI 5303210990 |
| 39 | TRIM-FRZR SHELF |
| 40A | WCI 5303209274 |
| 40 | GLASS-SHELF, FULL SHELF, (3) |
| 41A | LOCK-SHELF TRIM, REAR |
| 41 | TRIM-FULL SHELF, REAR |
| 42A | HANGER-PAN RH (NON-ILLUSTRATED) |
| 42 | HANGER-PAN LH |
| 45 | WCI 08014528 |
| 59 | WCI 5308012258 |
