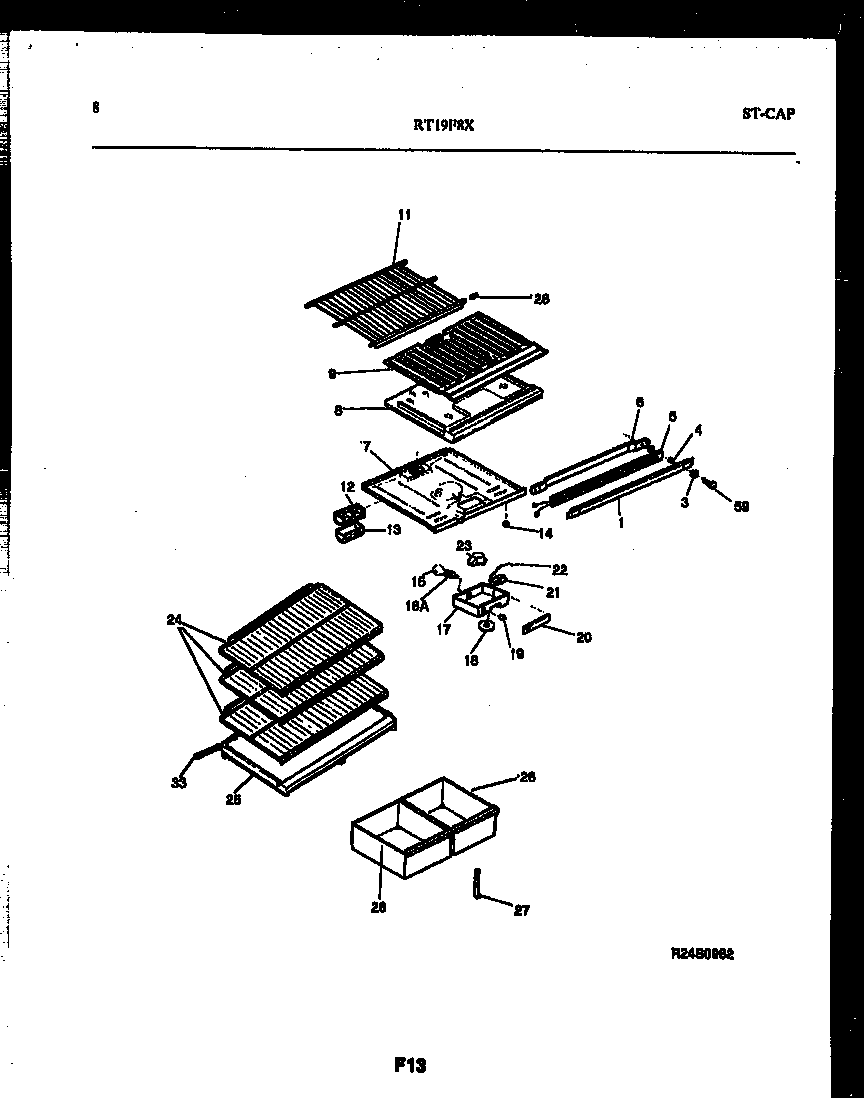

RT19F8DX3A 05 – SHELVES AND SUPPORTS

RT19F8DX3A 05 – SHELVES AND SUPPORTS

Written by

in

RT19F8DX3A 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*431815304455649 Frigidaire Refrigerator Screw
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7TOP – REFRIGERATOR
7AWCI 5303001380
8AWCI 3018900
8DIVIDER-FOAM
9A3205266 Frigidaire Refrigerator Edge Protector
9WCI 5303211427
11WCI 5317705904
12DEFLECTRO, AIR, W/SEAL
12BEXTENSION, AIR DEFLECTOR, WITH INSULATION
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
14WCI 5309918800
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17WCI 5303272507
17A5304455650 Frigidaire Refrigerator Screw
18WCI 5303209251
19WCI 5303272508
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 5318115304
25COVER, CRISPER PAN
26WCI 5303274982
26WCI 5303275275
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
59WCI 5308012258
