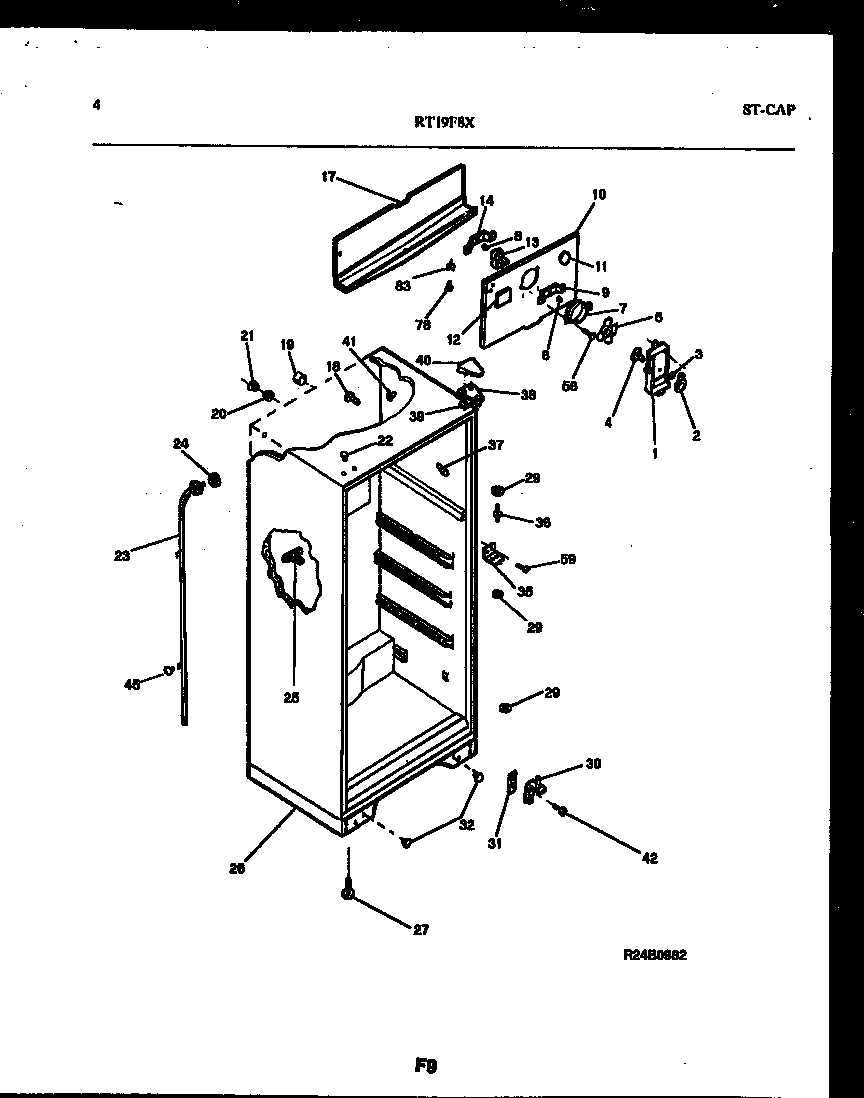

RT19F8DX3B 03 – CABINET PARTS

RT19F8DX3B 03 – CABINET PARTS

Products

PositionProduct
*43176TAPPING PLATE, GUSSET, LH (NOT ILLUSTRATED)
*43176TAPPING PLATE, GUSSET, RH (NOT ILLUSTRATED)
1B5304455650 Frigidaire Refrigerator Screw
1WCI 5303275059
1AWCI 5303275150
2WCI 3206381
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 5308009771
10ANUT, ``U`` TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT-COIL COVER
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22PLUG-BUTTON, ALMOND, UPR HINGE HOLES
23WCI 5303210377
24WCI 5303207353
25AWCI 5303001361
25WCI 5308000056
26WCI 5303212487
27Screw-leveling,(2)
29WASHER, .34 X .62 X .05, NYLON
30BRACKET-LOWER HINGE, W/ HINGE PIN
31WCI 5303212488
32WCI 5303212923
35BRACKET-CTR HINGE
36WCI 5308000184
37TRIM-CABINET CORNER, ALMOND
38BRACKET-UPPER HINGE
38BTAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRATED)
39SHIM - UPPER HINGE
40COVER-UPPER HINGE, ALMOND
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
59WCI 5308012258
83WCI 5308000107
43178PLUG, BUTTON, CABINET LINER (NI)
