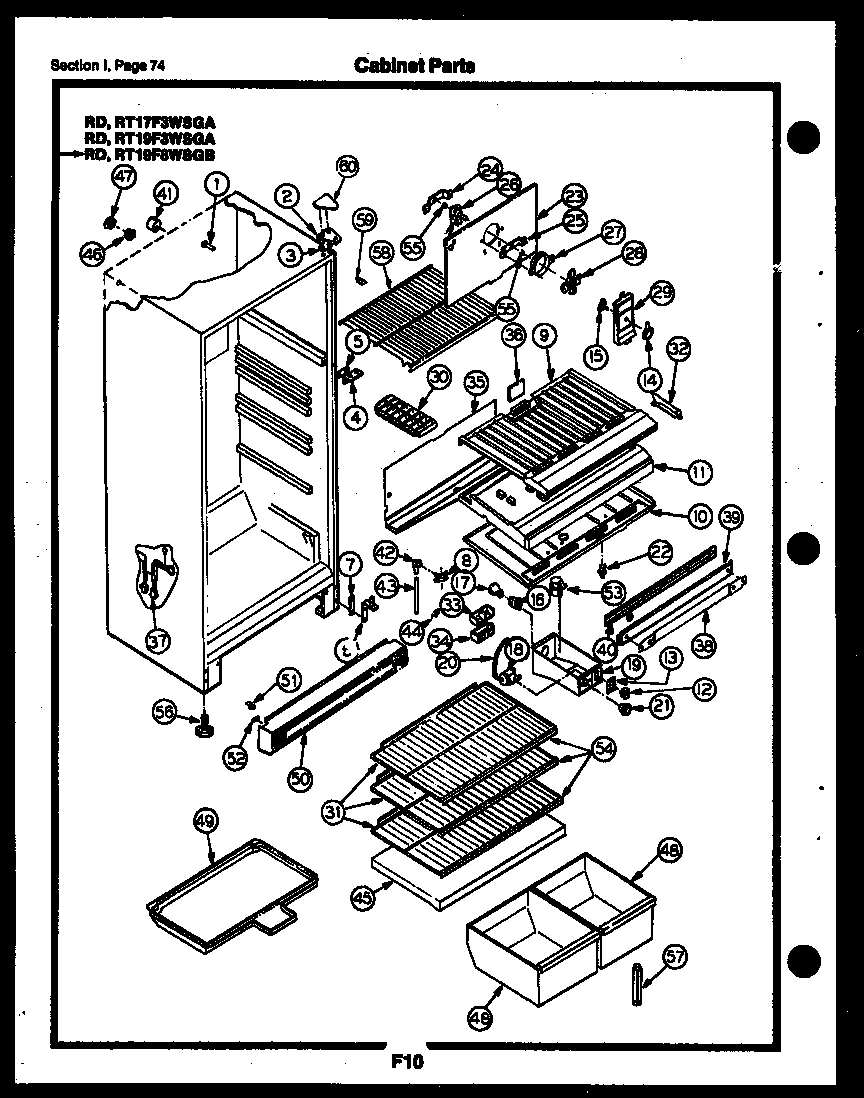

RT19F8WSGB 37 – CABINET PARTSadmin2025-04-26T10:23:38+00:00RT19F8WSGB 37 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | WCI G163669 |
| 2A | WASHER, NYLON |
| 2D | WASHER, NYLON |
| 2C | 241710601 Frigidaire Refrigerator Screw |
| 2 | BRACKET, TOP HINGE |
| 2B | WCI G174747--01 |
| 3 | WCI G183861 |
| 4D | WCI G103903 |
| 4A | SCREW, BRACKET MOUNTING (4) |
| 4B | WCI G142220 |
| 4 | WCI G162384 |
| 4C | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 5 | SHIM, HINGE |
| 6D | NUT, SPEED (2) |
| 6C | WCI G142361 |
| 6B | TAPPING PLATE (2) |
| 6E | SCREW - 1/4 X 1 (2) |
| 6A | WCI G141673 |
| 6 | BRACKET-LOWER HINGE |
| 7 | SHIM, HINGE |
| 8 | SPOUT DRAIN TUBE |
| 8A | PIN PUSH SPOUT (2) |
| 9 | DIVIDER-BTM |
| 10 | DIVIDER-TOP |
| 10A | WCI G162673 (3) |
| 11 | DIVIDER-STYRO |
| 12 | SWITCH - SLIDE (NON-ILLUSTRATED) |
| 13 | LABEL - CONTROL BOX |
| 14 | WCI G162747-06 |
| 15 | DAMPER FAN COVER |
| 15A | NUT, DAMPER MOUNTING |
| 16 | SOCKET LIGHT |
| 17 | 316538904 Frigidaire Oven Lamp Light |
| 18A | WCI G107080 |
| 18 | COLD CONTROL |
| 19 | WCI G174765-03 |
| 20 | TUBE |
| 21 | KNOB-TEMP CONTROL |
| 22 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 23 | WCI G162050-02 |
| 24 | BRACKET, REAR MOTOR MOUNTING |
| 25 | BRACKET, FRONT MOTOR MOUNTING |
| 26 | 5300158289 Frigidaire Evaporator Fan Motor |
| 27 | RING, FAN ORIFICE |
| 27A | NUT, ORIFICE (2) |
| 28 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 29A | LABEL - UPPER |
| 29 | WCI G162512-08 |
| 29B | 5304455650 Frigidaire Refrigerator Screw |
| 29C | LABEL - LOWER |
| 31 | WCI G168209-03 |
| 32A | WCI G162177 |
| 32 | WCI G162176 |
| 33 | DEFLECTOR AIR |
| 34 | WCI G162178 |
| 35 | WCI G170071 |
| 36 | PAD, FOAM (2) |
| 37 | WCI G174831 |
| 38 | STRAP, MULLION MOUNTING |
| 39 | WCI G162051 |
| 40 | WCI G177254 |
| 41 | TUBE, INSULATION (2) |
| 42 | ELBOW, DRAIN |
| 43 | DRAIN TUBE (CUT TO LENGTH) |
| 44 | 240396801 Frigidaire Refrigerator Tube Clamp |
| 45 | WCI G161901-02 |
| 46 | WCI G174733 |
| 47 | WCI G174734 |
| 48 | WCI G179706-28 |
| 48A | WCI G179706-31 |
| 49 | PAN, DEFROST |
| 50 | WCI G161904-01 |
| 51 | WCI G162994 |
| 52 | PLUG - LOWER GRILLE |
| 53 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 53A | 5304455649 Frigidaire Refrigerator Screw |
| 54 | TRIM - SHELF - FR. |
| 54A | CLIP - TRIM (12) |
| 55 | G187559 Frigidaire Refrigerator Bushing |
| 56 | WCI G45490 |
| 57 | WCI G166310-01 |
| 58C | WCI G163104 (8) |
| 58B | WCI G163105 (8) |
| 58A | WCI G184319-03 |
| 59 | WCI G164571 |
| 59A | 5304455651 Frigidaire Refrigerator Screw |
| 60 | COVER HINGE, WHITE |
| 22931 | BUTTON, PLUG, ICE MAKER AND FREEZER SHELF MOUNTING HOLES |
| 22937 | WCI G175254 |
| 22938 | BUTTON, PLUG, LINER (2) |
| 22943 | WCI G186982 |
| 22946 | WCI G183100-38 |
