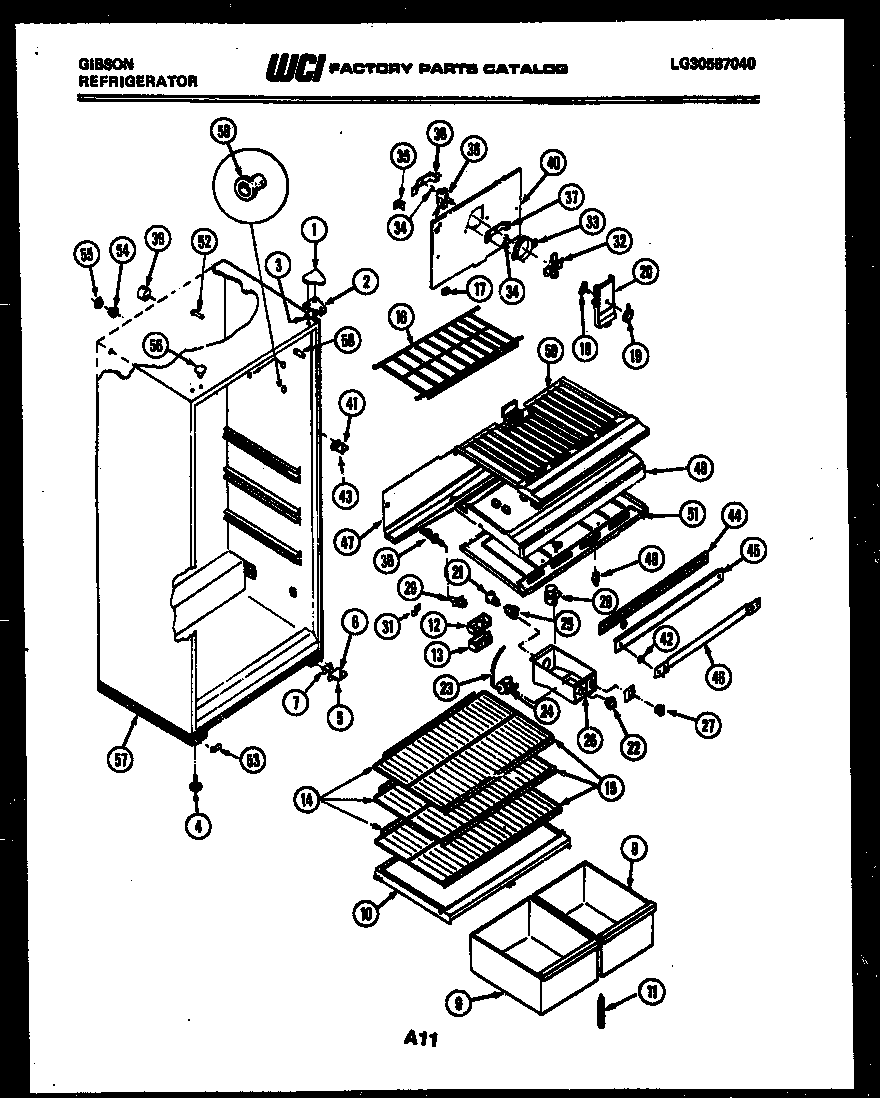

RT19F8WT3A 03 – CABINET PARTSadmin2025-04-26T10:22:01+00:00RT19F8WT3A 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | COVER, TOP HINGE, AVOCADO |
| 1 | COVER HINGE, WHEAT |
| 1 | COVER HINGE, WHITE |
| 1 | COVER, TOP HINGE, ALMOND |
| 1 | COVER HINGE, COFFEE |
| 2 | BRACKET, TOP HINGE |
| 3B | WCI G103903 |
| 3A | 241710601 Frigidaire Refrigerator Screw |
| 3C | WASHER, NYLON 5/16 X 5/8 (CTR & LOWER HINGE BRACKET) |
| 3 | WCI G183861 |
| 4A | NUT, ANCHOR (2) |
| 4 | LEG-LEVELING (2) |
| 5 | BRACKET, HINGE, LOWER |
| 6 | 5303001321 Frigidaire Refrigerator Lower Hinge Pin |
| 7 | SHIM, HINGE |
| 8 | WCI G176639-23 |
| 9 | PAN-SMALL LS |
| 10 | COVER, CRISPER |
| 11 | SUPPORT, CRISPER COVER |
| 12 | DEFLECTOR AIR |
| 13 | WCI G162178 |
| 14 | WCI G181153-06 |
| 15 | WCI G172410-06 |
| 16 | WCI G184572-04 |
| 17 | WCI G166495-01 |
| 18 | DAMPER FAN COVER |
| 18A | NUT, DAMPER MOUNTING |
| 19 | KNOB-DAMPER |
| 20 | WCI G163061-81 |
| 21 | 316538904 Frigidaire Oven Lamp Light |
| 22 | KNOB |
| 23 | TUBE |
| 24 | COLD CONTROL |
| 25 | SOCKET LIGHT |
| 26 | WCI G176722-03 |
| 27 | WCI G178402-02 |
| 28 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 28A | 5304455649 Frigidaire Refrigerator Screw |
| 29A | PIN PUSH SPOUT (2) |
| 29 | SPOUT DRAIN TUBE |
| 30A | RING, SEAL (NON-ILLUSTRATED) |
| 30 | TUBE, DRAIN |
| 31 | WCI G101747 |
| 32 | 5308000010 Frigidaire Refrigerator Evaporator Fan Blade |
| 33 | RING, FAN ORIFICE |
| 34 | G187559 Frigidaire Refrigerator Bushing |
| 35 | WCI G164571 |
| 36 | 5300158289 Frigidaire Evaporator Fan Motor |
| 37 | WCI G185302 |
| 38 | WCI G185303 |
| 39 | TUBE, INSULATION (2) |
| 40 | WCI G177529 |
| 40A | NUT, ORIFICE (2) |
| 41B | SCREW, BRACKET MOUNTING (4) |
| 41 | BRACKET, HINGE CENTER |
| 41A | WASHER (2) |
| 42 | SPACER, MULLION (2) |
| 43 | WCI G142220 |
| 44 | WCI G177254 |
| 45 | WCI G180373-10 |
| 45 | WCI G180373-11 |
| 45 | WCI G180373-09 |
| 45 | MULLION, WHITE |
| 45 | WCI G180373-08 |
| 46 | STRAP, MULLION MOUNTING |
| 47 | WCI G177534 |
| 48 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 49 | DIVIDER, CENTER |
| 50 | BOTTOM, FC |
| 51 | TOP, PC |
| 51A | SCREW (5) |
| 52 | WCI G163669 |
| 53 | WCI G166912 |
| 54 | WCI G174733 |
| 55 | WCI G174734 |
| 56 | WCI G174747-11 |
| 56 | WCI G174747-09 |
| 56 | WCI G174747-10 |
| 56 | WCI G174747-08 |
| 56 | WCI G174747--01 |
| 57 | WCI G490004-02 |
| 58 | TRIM CORNER (4), AVOCADO |
| 58 | WCI G179684-09 |
| 58 | TRIM-CORNER, ALMOND (4) |
| 58 | WCI G179684-10 |
| 58 | WCI G179684-01 |
| 59A | HARNESS, WIRING |
| 59 | 5304509705 Frigidaire Refrigerator Grommet |
| 59 | 5304500407 Frigidaire Refrigerator Shelf Mounting Grommet |
