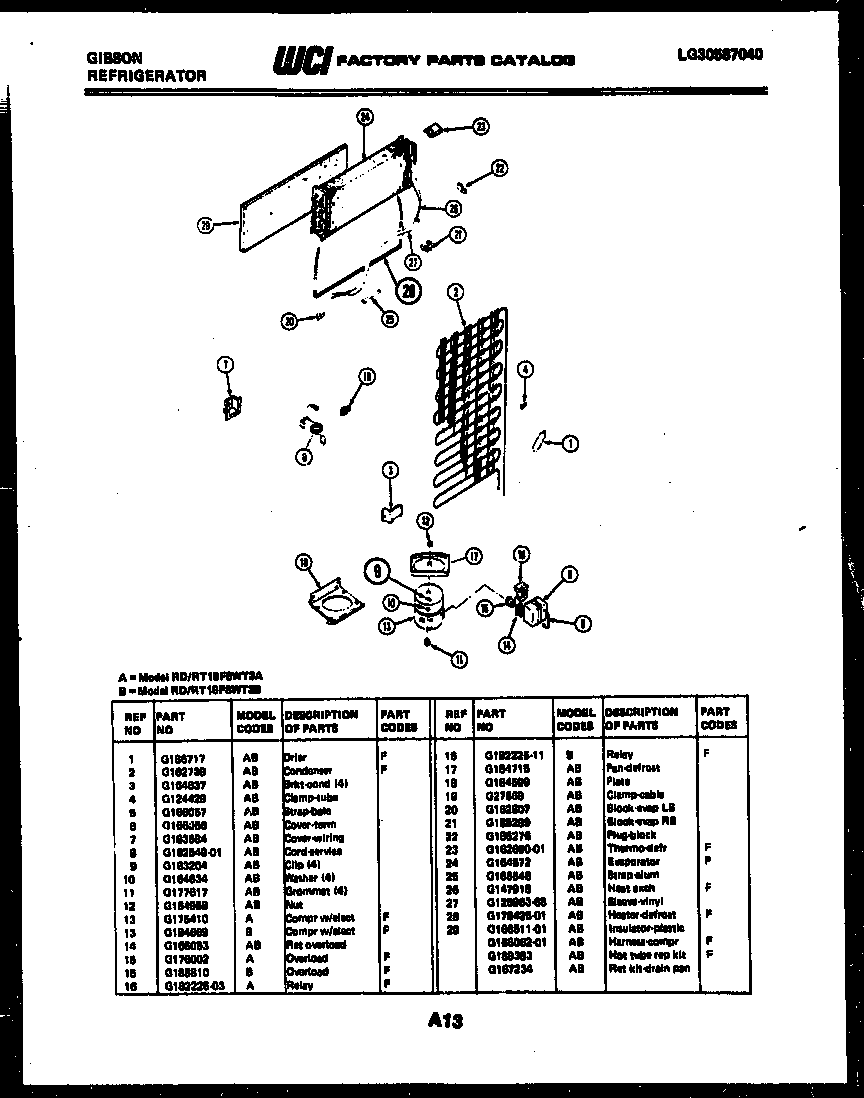

RT19F8WT3A 04 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
15303305677 Frigidaire Replacement Filter Dryer Filters
2WCI G162739
3BRACKET-CONDENSER MOUNTING (4)
45303001193 Frigidaire Refrigerator Clamp
55303006412 Frigidaire Refrigerator Cover Mounting Strap
7WCI G183584
8CORD, SERVICE
9CLIP, COMPRESSOR MOUNTING (4)
10WASHER, COMPRESSOR MOUNTING (4)
11218513300 Frigidaire Refrigerator Compressor Mount Grommet
12NUT, LOCK
13COMPRESSOR WITH ELECTRICALS
14CLIP, OVERLOAD
15WCI G176002
16WCI G182225-03
17DEFROST PAN & NUT
18PLATE
195303001199 Frigidaire Refrigerator Wiring Harness Clamp
20BLOCK, EVAPORATOR, LH
21BLOCK, EVAPORATOR, RH
22PLUG, EVAPORATOR INSULATION BLOCK, R H
235303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
24EVAPORATOR
255308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
26HEAT, EXCHANGE
27WCI G125963-68
285317842502 Frigidaire Defrost Heater
29AHARNESS-COMPRESSOR
29BHOT TUBE REPAIR KIT
29CWCI G167234
29INSULATOR
