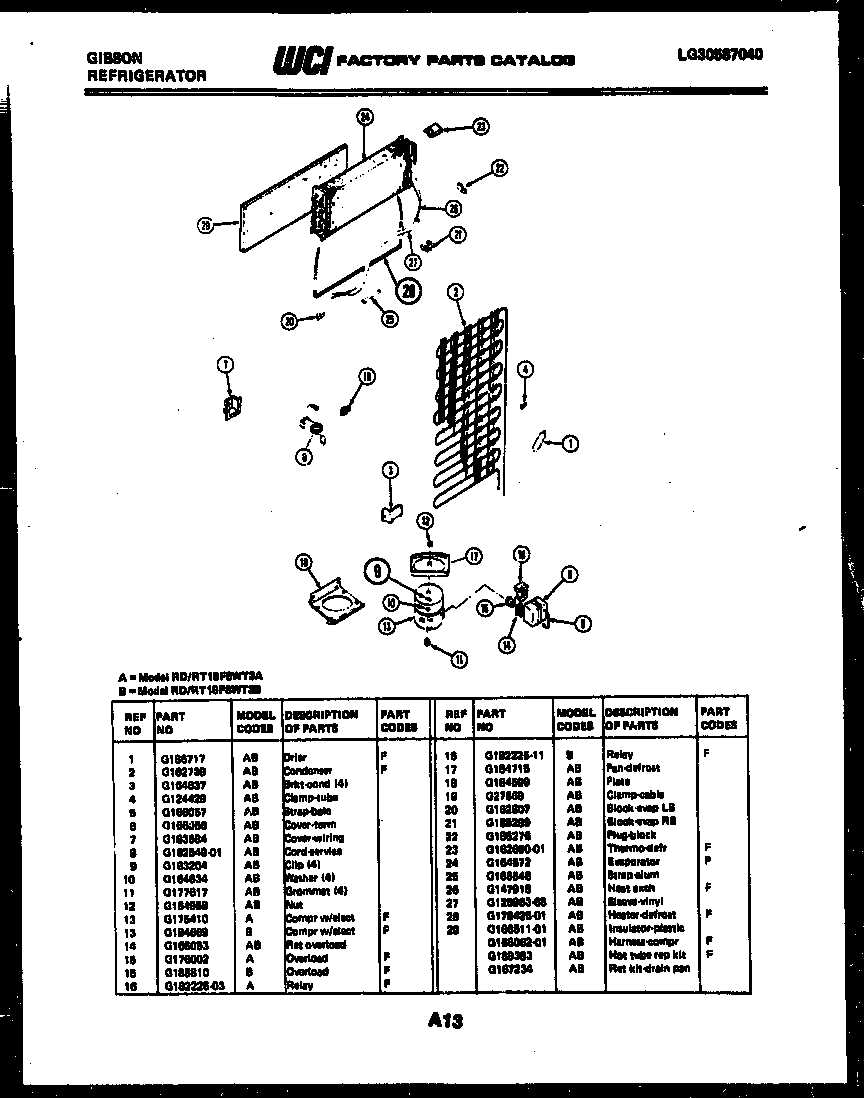

RT19F8WT3B 04 – SYSTEM AND AUTOMATIC DEFROST PARTSadmin2025-04-26T10:21:35+00:00RT19F8WT3B 04 – SYSTEM AND AUTOMATIC DEFROST PARTS
Products
| Position | Product |
|---|
| 1 | 5303305677 Frigidaire Replacement Filter Dryer Filters |
| 2 | WCI G162739 |
| 3 | BRACKET-CONDENSER MOUNTING (4) |
| 4 | 5303001193 Frigidaire Refrigerator Clamp |
| 5 | 5303006412 Frigidaire Refrigerator Cover Mounting Strap |
| 7 | WCI G183584 |
| 8 | CORD, SERVICE |
| 9 | CLIP, COMPRESSOR MOUNTING (4) |
| 10 | WASHER, COMPRESSOR MOUNTING (4) |
| 11 | 218513300 Frigidaire Refrigerator Compressor Mount Grommet |
| 12 | NUT, LOCK |
| 13 | COMPRESSOR WITH ELECTRICALS |
| 14 | CLIP, OVERLOAD |
| 15 | WCI G185810 |
| 16 | WCI G182225-11 |
| 17 | DEFROST PAN & NUT |
| 18 | PLATE |
| 19 | 5303001199 Frigidaire Refrigerator Wiring Harness Clamp |
| 20 | BLOCK, EVAPORATOR, LH |
| 21 | BLOCK, EVAPORATOR, RH |
| 22 | PLUG, EVAPORATOR INSULATION BLOCK, R H |
| 23 | 5303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit |
| 24 | EVAPORATOR |
| 25 | 5308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap |
| 26 | HEAT, EXCHANGE |
| 27 | WCI G125963-68 |
| 28 | 5317842502 Frigidaire Defrost Heater |
| 29B | HOT TUBE REPAIR KIT |
| 29A | HARNESS-COMPRESSOR |
| 29C | WCI G167234 |
| 29 | INSULATOR |
