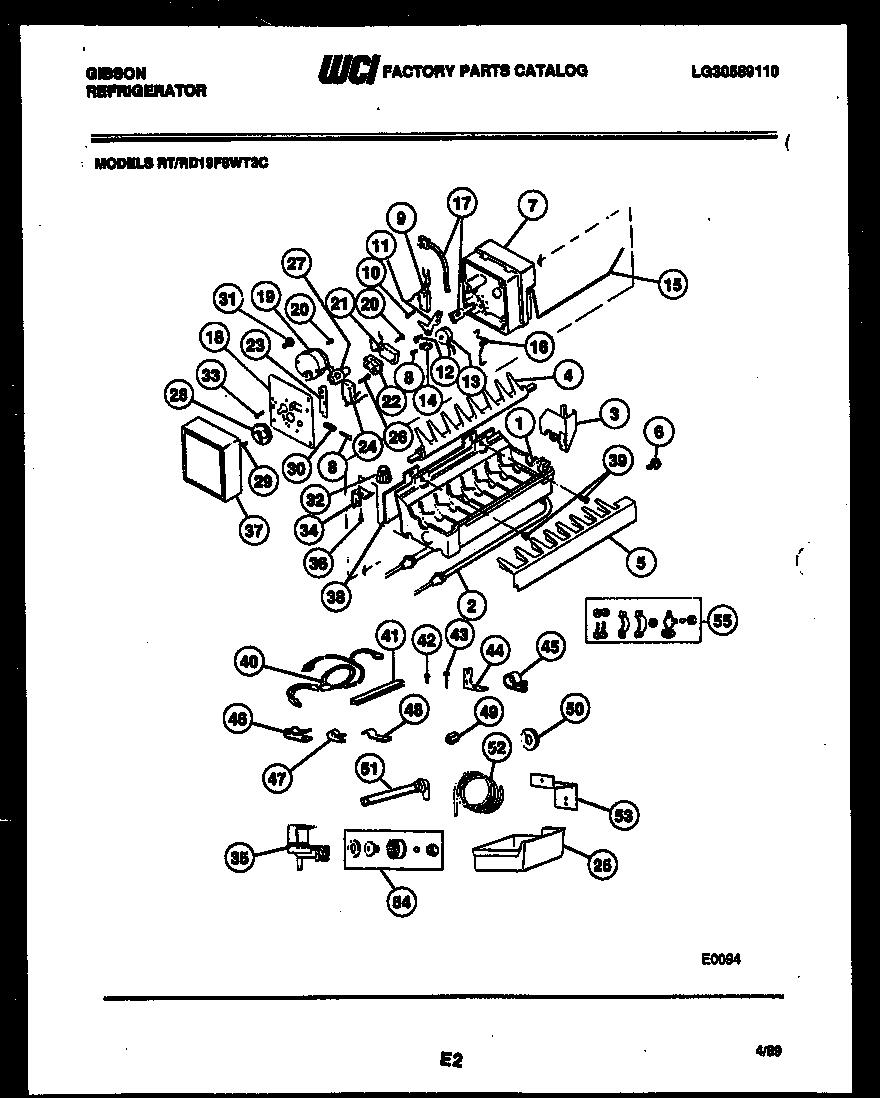

RT19F8WT3C 06 – ICE MAKER AND INSTALLATION PARTS

Products

PositionProduct
*14892WCI G154156
*14892WCI 3015102
1MOLD AND HEATER ASSEMBLY (INCLUDES ILLUSTRATION 29)
2WCI G137756
3WCI G181117
4WCI G159911
5STRIPPER-ICE
7WCI G137748
8SCREW 8, 32 X 1
10WCI G137745
115304456675 Frigidaire Refrigerator Lever Arm
12SCREW, SHOULDER
13WCI G159907
14WCI G137742
15ARM, SHUT OFF
16WCI G137753
17WIRE ASSEMBLY
18WCI G186572
19WCI G137735
20SCREW 4, 40 X 1
22SPACER, HOLDING SWITCH
23WCI G159905
24SWITCH-SPST
255303212918 Frigidaire Refrigerator Cont
26SCREW 4, 40 X 3/4
27WCI G137738
285304469403 Frigidaire Gear
29SCREW
30WCI G159909
31WCI G159898
32WCI G159902
33WCI M1090016
34WCI G159906
35WATER VALVE-SOLENOID
36WCI M1090120
37WCI G159908
37AWCI 3200851
38SHIELD
39WCI G164766
40WCI G185266
415305877995 Frigidaire Refrigerator P-1 Sealing Strip
425304455651 Frigidaire Refrigerator Screw
445303001199 Frigidaire Refrigerator Wiring Harness Clamp
45240396801 Frigidaire Refrigerator Tube Clamp
465304455846 Frigidaire Refrigerator Clamp
475303001193 Frigidaire Refrigerator Clamp
48CLIP, HARNESS LOCATION
49NUT, INLET TO SOLENOID VALVE
505303001147 Frigidaire Refrigerator Plug-Harness Hole
51215456100 Frigidaire Refrigerator Water Inlet Tube
525308010366 Frigidaire Refrigerator P1-Water Inlet Tube
53BRACKET, VALVE TO REAR PANEL
53B5308000039 Frigidaire Refrigerator Screw
53A5304455852 Frigidaire Refrigerator Screw
54WCI G159415
55WCI G99428
