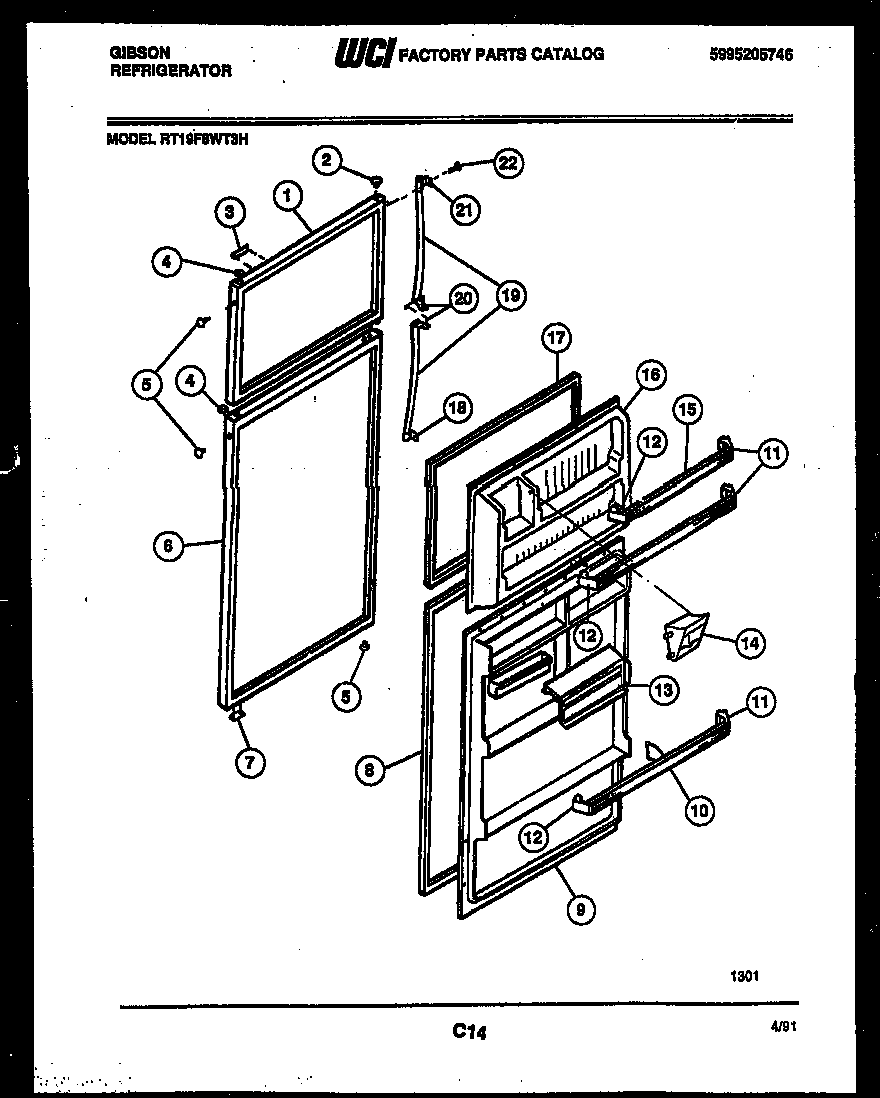

RT19F8WT3H 02 – DOOR PARTS

RT19F8WT3H 02 – DOOR PARTS

Written by

in

RT19F8WT3H 02 – DOOR PARTS

Products

PositionProduct
*43715INSULATION-BULK (NON-ILLUSTRATED)
1PANEL-FRZR-OUTER-WHEAT
1PANEL-FRZR-OUTER-ALMOND
1PANEL-FRZR-OUTER-COFFEE
1PANEL-FRZR-OUTER-AVOCADO
1PANEL-FRZR-OUTER-WHITE
2BUTTON-WHEAT
2BUTTON PLUG-COFFEE
2PLUG-BUTTON, ALMOND, HINGE BRG HOLE
2PLUG-BUTTON, WHITE, HINGE BRG HOLE
2BUTTON-AVOCADO
3ALABEL UPPER
3BLABEL-LOWER
3NAMEPLATE
3CTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
4BEARING-HINGE
5240494001 Frigidaire Refrigerator Plug Button
5BUTTON-WHEAT
5BUTTON-AVOCADO
5BUTTON PLUG-COFFEE
5PLUG-BUTTON, ALMOND, HANDLE/DR STOP
6WCI 5317869411
6PANEL-OUTER-COFFEE
6WCI 5317869409
6WCI 5317869408
6PANEL-OUTER-WHITE
7DOOR STOP, REFR SECTION
7AWCI 5308000255
8GASKET-REFRIG DOOR
9WCI 5303270560
11WCI 5317828702
12SUPPORT RH (4)
13WCI 5303270561
14DISPENSER-JUICE CAN
15RACK-DOOR
16WCI 3203048
16A5304455651 Frigidaire Refrigerator Screw
17WCI 5303001486
18BOTTOM HANDLE END CAP
19WCI 5317049526
20WCI 5303001296
21WCI 5303001297
22WCI 5308011745
