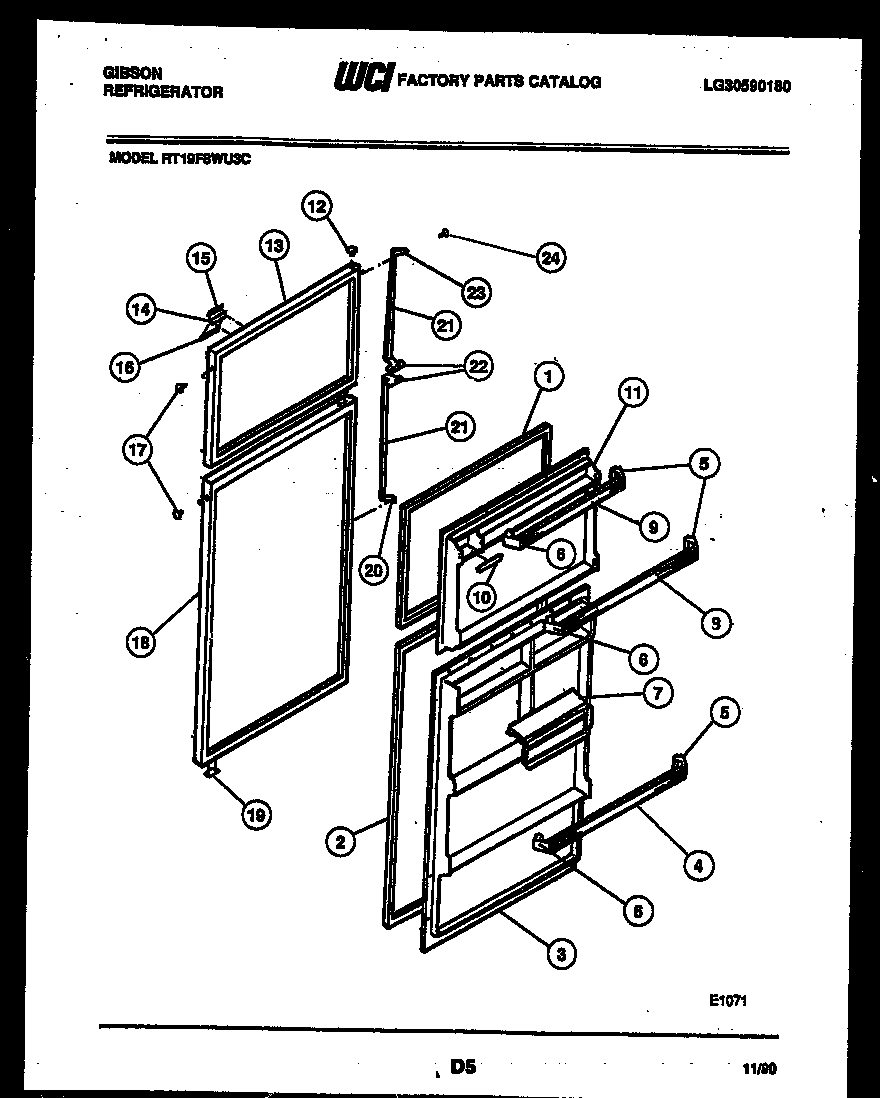

RT19F8WU3C 02 – DOOR PARTS

RT19F8WU3C 02 – DOOR PARTS

Written by

in

RT19F8WU3C 02 – DOOR PARTS

Products

PositionProduct
*23218INSULATION-BULK (NON-ILLUSTRATED)
1WCI 5303001486
2GASKET-REFRIG DOOR
3WCI G187452-02
5WCI 5317828702
6SUPPORT RH (4)
7WCI G187460-01
9RACK-DOOR
10RACK-JUICE CAN
10ADISPENSER-JUICE CAN
11WCI 3203048
11A218843801 Frigidaire Refrigerator Screw
12BUTTON-AVOCADO
12BUTTON-WHEAT
12BUTTON PLUG-COFFEE
12PLUG-BUTTON, WHITE, HINGE BRG HOLE
12PLUG-BUTTON, ALMOND, HINGE BRG HOLE
13PANEL-FRZR-OUTER-ALMOND
13PANEL-FRZR-OUTER-WHEAT
13PANEL-FRZR-OUTER-AVOCADO
13PANEL-FRZR-OUTER-WHITE
13PANEL-FRZR-OUTER-COFFEE
14NAMEPLATE
14ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
15LABEL UPPER
16LABEL-LOWER
17PLUG-BUTTON, ALMOND, HANDLE/DR STOP
17BUTTON PLUG-COFFEE
17240494001 Frigidaire Refrigerator Plug Button
17BUTTON-AVOCADO
17BUTTON-WHEAT
18PANEL-OUTER-COFFEE
18ABEARING-HINGE
18WCI 5317869411
18PANEL-OUTER-WHITE
18WCI 5317869408
18WCI 5317869409
19WCI 5308000255
20BOTTOM HANDLE END CAP
21WCI 5317049526
22WCI 5303001296
23WCI 5303001297
24WCI 5308011745
